Dawson automation equipment is designed to provide customers in the plastic industry with complete automation solutions to achieve the purpose of saving manpower and improving production efficiency.
The automatic leak detector is used for 200ml to 300L plastic bottles, barrels, Jerrycan, etc. Automatic Leak tester can automatically test the sealing degree of bottle mouth to ensure product quality, and is connected to the production line, bottle made by blow molding machine will automatically through the conveyor to leak tester and to the packaging machine.
Superior quality jerrycan leak tester empty bottle leak testing machine produces high-performance plastic container divulging check-out facility. Regardless of you are measuring, from 1ml to 3000 liter each kind of blowing hollow plastic container. No matter that is the soft bag, the grotesque anthropomorphous bottle or the tube, we can provide the ideal leak testing equipment for you.
Leak testing machine principle and testing method

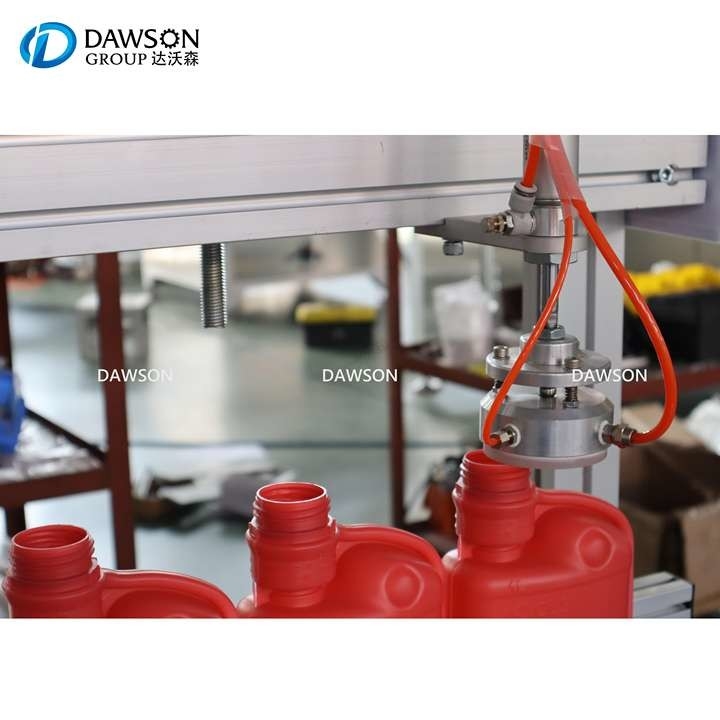

Plastic Bottle Leak Tester has a core differential pressure induction system from Italy. The system can inspect micro-leak products according to the changing parameters of micro-leak. There is a induction passage of differential pressure after the test head sealed while it testing. whether air inflation it will generate much pressure inside and outside. In case of the product are leak, the pressure is trail off and come into differential pressure. On the basis of testing time(0.5-7sec.),the differential pressure value be received by transducer of induction system.. The transducer send the signal to electron plate and PLC touch screen by electronic data and send signal of alert.
Technical Parameters
Model
TQ-LT1
TQ-LT2
TQ-LT3
TQ-LT4
Location number
1
2
4
8
Speed
600-1000pcs/h
800-1500pcs/h
2000-3000pcs/h
2500-4000pcs/h
Range
1ml-50L
1ml-30L
1ml-30L
10ml-2L
Size
1600*620*1600mm
1600*620*1600mm
2000*750*1800mm
2000*750*1800mm
Height
800-1100mm
800-1100mm
800-1100mm
800-1100mm
Conveyor length
1600mm
1600mm
2000mm
2000mm
Power
220V 50HZ
220V 50HZ
220V 50HZ
220V 50HZ
Model
TQ-HLT (Series)
TQ-LN3/10
TQ-BLT (Series)
Speed
2000-3600pcs/h
6000-10000pcs/h
400-500pcs/h
Range
10ml-200ml
10ml-10L
50L-200L
Size
2000*620*1600mm
customize
1600*1350*1600mm
Height
800-1100mm
customize
By order
Conveyor length
2000mm/OEM
customize
/
Power
220V 50HZ
220V 50HZ
220V 50HZ
Machine Advantages
1. Simple operation: automatic jerrycan leak tester, text display leak detection information, and defective products are
automatically collected from the production line.
2. Firm construction: steel plate working machine body, unified upper and lower positions, guide post and lead screw.
3. High leak detection accuracy and fast speed: high precision digital pressure sensing is adopted, and the index error is pressure leak detection and laser probe.
4. Price advantage: our plastic bottle leak tester is considered to be the most cost-effective machine in the field of plastic containers for leak detection, which has been tested and confirmed by customers all over the world in the past few years.
Professional Workshop
Our Professional Automation Machines Workshop...
Company Profile
DAWSON MACHINERY & MOULD GROUP
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....
We have our own service team in
Saudi Arabia, Colombia, Panama, South Africa ...
DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery, blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, injection stretch blow molding machine during the past 18 years, we provide complete solutions including conveyor and all plastic automation machines, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns. The machines from our company carry good quality and effective after-sales service, upon the market, customers from more than 65 countries, we provide complete solution for your plastic industry business, as well as all sorts of technical support & after-sale services!
DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
Customer Photos
We committed to providing customers with plastic machinery & equipment production lines beyond expectations.
Customer satisfaction is our eternal pursuit...
FAQ
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.
Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.
Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 20-25 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.
Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
