Chemical barrels Drum ABLD100 Blow Molding Machine 120L Hdpe Open Top Plastic Single die head Blow Molding Machine
Contact Person : Kenmartin
Phone Number : 008613913143237
WhatsApp : +8613913143237
|Minimum Order Quantity :||1 Set||Price :||US $50,000-80,000/ Set|
|Packaging Details :||Packing in wooden cases||Delivery Time :||35-45 Work days|
|Payment Terms :||L/C, T/T||Supply Ability :||10-20Set/month|
|Place of Origin:||Jiangsu Zhangjiagang||Brand Name:||Dawson|
|Mould:||One Cavity||Extruder Motor:||30kw Siemens Motor|
|Max. Product Volume:||25L||Summarize:||High-Grade Alloy Steel, Center Feeding|
|Application:||Bottles, Jars, Jerry Cans, Gallons, Containers||Die Head:||Single Head|
|Sutiable:||20L 25L Bottle||Clamping System:||Toggle Type Clamping System|
|Station:||Single Station||Heating Zone:||4 Aluminum Heater|
|Clamping Force:||220 Kn||Transport Package:||Film Packing|
|Production Capacity::||50~60 PCS/H|
30kw plastic bottle blow molding machine,
20l plastic bottle blow molding machine,
5 gallon automa blow molding machine
|Machine type||ABLB82PC||Accumulator head|
|Extruding unit||max. container capacity||25||L|
|screw diameter||82 special for PC||mm|
|screw L/D ratio||38: 1||L/D|
|screw speed||10-80||rev. /min|
|number of heating zone||7||zone|
|extruder heating power||16.7||kw|
|Die head||max accumulator capacity||1.85||L|
|max injection speed||1||kg/sec|
|max head tooling diameter||130||mm|
|die head heating zone||4||zone|
|die head heating power||12.3||kw|
|Clamping unit||platen valid size(w× h)||800× 800||mm|
|Bottom blowing unit
|blow pin auto-lifting stroke||100||mm|
|blow pin manual-lifting stroke||200||mm|
|Robot arm (optional)||moving stroke||1000||mm|
|Machine frame||lifting stroke||350||mm|
|Hydraulic system||main-pump rated pressure||12||mpa|
|main-pump rated volume||180||L/min|
|hydraulic driving power||45||kw|
|parison control hydraulic servo system||MOOG|
|hydraulic pump power||4||kw|
|Pneumatic system||max. pressure||8||kg/cm2|
|air consumption||0.4||m 3 /min|
|Water source||water supply pressure||0.3||mpa|
|Phase||3 phase 4 wire|
|Installation capacity||total rated power||78||kw|
|dimension(L× W× H)||6000× 2200× 4500||mm|

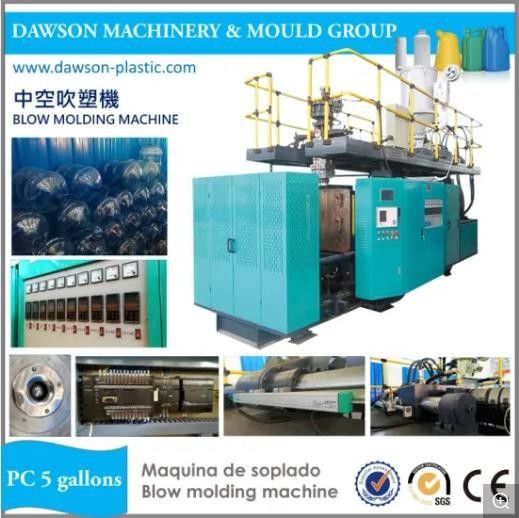

Automatic Extrusion Blow Molding Machine ABLB82-PC
|Type of Blow Molding Machine|
EBM processes may be either continuous (constant extrusion of the parison) or intermittent. Types of EBM equipment may be categorized as follows:
1. Continuous Extrusion Equipment
2. Intermittent Extrusion Machinery
Examples of parts made by the EBM process include dairy containers, shampoo bottles, and hollow industrial parts such as drums.
Basic polymers, such as PP, HDPE, PVC and PET are increasingly being co-extruded with high barrier resins, such as EVOH or Nylon, to provide permeation resistance to water, oxygen, CO2 or other substances. In dairy applications, it is possible to extrude a black light-blocking layer in the center layer of containers, with opaque white resin used in the inner and outer layers.
Accumulator Head Machinery is used for the extrusion blow molding of large industrial hollow parts. Examples of parts produced on this machinery include drums, trash cans, automotive panels, playground equipment, and large containers, such as Jerry Cans, for liquid storage. Most parts produced on accumulator head machinery are single layer; however, specialized machinery is capable of producing parts with up to seven unique layers of plastic - these machines are used primarily to manufacture automotive gasoline tanks with barrier layers.
|Plastic machines we provide ....|
Extrusion Blow Molding Machine
Injection Blow Molding Machine
PET Blow Molding Machine
Injeciton Molding Machine
Injection Stretch Blow Molding Machine
Chemicals : Pesticide bottles and industrial buckets, chemical buckets and other hollow blow-molded buckets.
Cosmetics&Pharmaceuticals : Vaccine bottles, medicine bottles, medical bed boards, cosmetic boxes, jars and vaseline bottles and other plastic machinery products used in cosmetic and medical fields.
House hold : Plastic empty blow-molded bottles, plastic containers, such as shower gel bottles, shampoo bottles, body lotion bottles, laundry detergent bottles, cleaning supplies bottles, hand sanitizer bottle, disinfectant bottle, alcohol disinfectant bottle etc. that are often used in daily life.
Indoor & outdoor : Plastic products are widely used, such as plastic hollow flower pots, plastic watering cans, plastic pet houses, plastic cold storage boxes, plastic children's toys, plastic-bus chairs, plastic tables and chairs, plastic trash cans, plastic traffic cones, plastic life buoys, plastic floats , Plastic buoys, plastic mannequins, etc., plastic machinery products can be seen everywhere.
Food & Beverage : The common applications of plastic products in the food and beverage industry are ketchup bottles, soy sauce bottles, honey bottles, mustard sauce bottles, milk bottles, yogurt bottles, juice bottles, alcohol bottle etc. Baby bottles are also common in plastic machinery in the beverage and food industry Applications.
Lubrication : The most common applications for hollow extrusion blow molding machines are lubricating oil barrels, 1L 2L lubricating oil bottles, 5L 10L cans, 10L 20L 25L to 30L lubricating oil Jerry can, and even 60L ~ 250L large barrels.
Automotive : The application of plastic products also accounts for a large part of automobile parts, such as plastic parts in automobile engines, plastic automobile safety stalks, plastic door handles, plastic car lamp housings, etc.
