5 Gallon Pc Water Bottles Full Automatic Blow Moulding Machine

1 Set
US $50,000-80,000/ Set
5 Gallon Pc Water Bottles Full Automatic Blow Moulding Machine
Features Gallery Product Description Request A Quote
Clamping System: Toggle Type Clamping System
Extruder Motor: 30kw Siemens Motor
Application: Bottles, Jars, Jerry Cans, Gallons, Containers
Max. Product Volume: 25L
Mould: One Cavity
Sutiable: 20L 25L Bottle
Die Head: Single Head
Summarize: High-Grade Alloy Steel, Center Feeding
Heating Zone: 4 Aluminum Heater
Transport Package: Film Packing
Clamping Force: 220Kn
Production Capacity:: 50~60 PCS/H
High Light:

50pcs/h 5 gallon blow molding machine


25l fully automatic blow moulding machine


25litre fully automatic blow moulding machine

Basic Infomation
Place of Origin: Jiangsu Zhangjiagang
Brand Name: Dawson
Certification: CE
Model Number: ABLB82-PC
Payment & Shipping Terms
Packaging Details: Packing in wooden cases
Delivery Time: 35-45 Work days
Payment Terms: L/C, T/T
Supply Ability: 10-20Set/month
Product Description
5 Gallon PC Water Bottles Full Automatic Blow Moulding Machine

Examples of parts made by the EBM process include dairy containers, shampoo bottles, and hollow industrial parts such as drums.

Basic polymers, such as PP, HDPE, PVC and PET are increasingly being co-extruded with high barrier resins, such as EVOH or Nylon, to provide permeation resistance to water, oxygen, CO2 or other substances. In dairy applications, it is possible to extrude a black light-blocking layer in the center layer of containers, with opaque white resin used in the inner and outer layers.
Compared to injection molding, blow molding is a low pressure process, with typical blow air pressures of 25 to 150 psi. This low pressure process allows the production of economical low-force clamping stations, while parts can still be produced with surface finishes ranging from high gloss to textured. The resulting low stresses in the molded parts also help make the containers resistant to strain and environmental stress cracking.

Unit Item Specification
Machine type ABLB82PC Accumulator head
Extruding unit max. container capacity 25 L
screw diameter 82 special for PC mm
screw L/D ratio 38: 1 L/D
screw speed 10-80 rev. /min
plasticizing capacity 90 kg/h
number of heating zone 7 zone
extruder heating power 16.7 kw
Die head max accumulator capacity 1.85 L
max injection speed 1 kg/sec
max head tooling diameter 130 mm
die head heating zone 4 zone
die head heating power 12.3 kw
Clamping unit platen valid size(w× h) 800× 800 mm
platen daylight 250-800 mm
clamping force 220 kn
Bottom blowing unit
expansion stroke 140-350 mm
blow pin auto-lifting stroke 100 mm
blow pin manual-lifting stroke 200 mm
Robot arm (optional) moving stroke 1000 mm
Machine frame lifting stroke 350 mm
lifting speed 30 mm/min
Hydraulic system main-pump rated pressure 12 mpa
main-pump rated volume 180 L/min
hydraulic driving power 45 kw
parison control hydraulic servo system MOOG
Rated volume 23 L/min
hydraulic pump power 4 kw
Pneumatic system max. pressure 8 kg/cm2
operating pressure 0.6 mpa
air consumption 0.4 m 3 /min
Water source water supply pressure 0.3 mpa
Electricity Voltage AC380± 10% V
Frequency 50 HZ
Phase 3 phase 4 wire
Installation capacity total rated power 78 kw
average consumption 42 kw/h
total weight 11.8 ton
dimension(L× W× H) 6000× 2200× 4500 mm

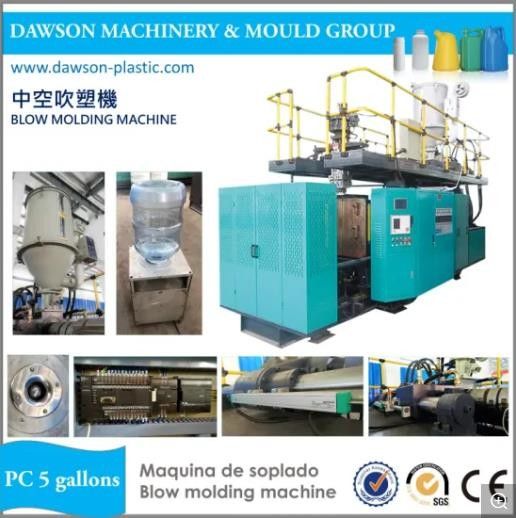

Automatic Extrusion Blow Molding Machine ABLB82-PC
5 Gallon Pc Water Bottles Full Automatic Blow Moulding Machine 0


5 Gallon Pc Water Bottles Full Automatic Blow Moulding Machine 15 Gallon Pc Water Bottles Full Automatic Blow Moulding Machine 2



Type of Blow Molding Machine

Extrusion blow molding
In Extrusion Blow Molding (EBM), plastic is melted and extruded into a hollow tube (a parison). This parison is then captured by closing it into a cooled metal mold. Air is then blown into the parison, inflating it into the shape of the hollow bottle, container or part. After the plastic has cooled sufficiently, the mold is opened and the part is ejected.

EBM processes may be either continuous (constant extrusion of the parison) or intermittent. Types of EBM equipment may be categorized as follows:

1. Continuous Extrusion Equipment

  • Rotary wheel blow molding systems
  • Shuttle machinery

2. Intermittent Extrusion Machinery

  • Reciprocating screw machinery
  • Accumulator head machinery


Accumulator Head Machinery is used for the extrusion blow molding of large industrial hollow parts. Examples of parts produced on this machinery include drums, trash cans, automotive panels, playground equipment, and large containers, such as Jerry Cans, for liquid storage. Most parts produced on accumulator head machinery are single layer; however, specialized machinery is capable of producing parts with up to seven unique layers of plastic - these machines are used primarily to manufacture automotive gasoline tanks with barrier layers.

Plastic machines we provide ....

Extrusion Blow Molding Machine

Injection Blow Molding Machine

PET Blow Molding Machine

Injeciton Molding Machine

Injection Stretch Blow Molding Machine
Applictions ....

Chemicals : Pesticide bottles and industrial buckets, chemical buckets and other hollow blow-molded buckets.

Cosmetics&Pharmaceuticals : Vaccine bottles, medicine bottles, medical bed boards, cosmetic boxes, jars and vaseline bottles and other plastic machinery products used in cosmetic and medical fields.

House hold : Plastic empty blow-molded bottles, plastic containers, such as shower gel bottles, shampoo bottles, body lotion bottles, laundry detergent bottles, cleaning supplies bottles, hand sanitizer bottle, disinfectant bottle, alcohol disinfectant bottle etc. that are often used in daily life.

Indoor & outdoor : Plastic products are widely used, such as plastic hollow flower pots, plastic watering cans, plastic pet houses, plastic cold storage boxes, plastic children's toys, plastic-bus chairs, plastic tables and chairs, plastic trash cans, plastic traffic cones, plastic life buoys, plastic floats , Plastic buoys, plastic mannequins, etc., plastic machinery products can be seen everywhere.

Food & Beverage : The common applications of plastic products in the food and beverage industry are ketchup bottles, soy sauce bottles, honey bottles, mustard sauce bottles, milk bottles, yogurt bottles, juice bottles, alcohol bottle etc. Baby bottles are also common in plastic machinery in the beverage and food industry Applications.

Lubrication : The most common applications for hollow extrusion blow molding machines are lubricating oil barrels, 1L 2L lubricating oil bottles, 5L 10L cans, 10L 20L 25L to 30L lubricating oil Jerry can, and even 60L ~ 250L large barrels.

Automotive : The application of plastic products also accounts for a large part of automobile parts, such as plastic parts in automobile engines, plastic automobile safety stalks, plastic door handles, plastic car lamp housings, etc.
