Extrusion Blow Moulding Machine for 120L 160L 220L 250L Drums

Name: Extrusion Blow Moulding Machine for 120L 160L 220L 250L Drums
Brand: DAWSON
SKU: DSB120
Price: 90 USD
Availability: InStock
Rating: 5 (127 reviews)

Minimum Order Quantity :	1 set	Price :	USD 90,000 ~ 170,000 / set
Packaging Details :	Standard Export Packing	Delivery Time :	1-2 months
Payment Terms :	L/C, T/T	Supply Ability :	20 sets / month

Place of Origin:	CHINA	Brand Name:	DAWSON
Certification:	CE	Model Number:	DSB120

Detail Information
Model NO.:	DSB120	Output Capacities:	18~25 PCS/H
Screw L/D Ratio:	28 L/D	Delivery Time:	50~100 Days
Warranty:	1 Year	After-Sales Service:	Engineers Available To Service Machinery Overseas
Die Heating Segments:	5 Zones	Mold Stroke:	600-1500mm
Trademark:	Dawson	Specification:	DSB120
HS Code:	8477301000	Max. Product Volume:	300L
Screw Diameter:	120mm	Company Attribute:	Manufacturer
Machine Lifespan:	>20 Years	Voltage:	Customer Specified
Blowing Pressure:	0.8MPa	Max.Die Diameter:	520mm
Max.Size Of Mold:	1000X1500mm	Transport Package:	Film Packing
Origin:	Zhangjiagang
High Light:	160L Plastic Blow Molding Machine , LDPE PS Plastic Blow Molding Machine , PP PETG automatic blow molding machine

Product Description

Extrusion Blow Moulding Machine for 120L 160L 220L 250L Drums

Extrusion blow molding machine ABLD120

Basic parameters	Suitable material	PE
	Max volume	250L
	Output capacity	20~25 pcs/h
	Size	8.6×3.8×5.8 (M)
	Weight	38 T
system	Specification	Parameters	Note
Plasticizion system	Summarize	High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
	Reducer	Hard finishing,High intension,Low noise reducer
	Screw	∮120mm,L/D ratio 28, 38CrMoALA	Cooling system available
	Plasticization	320~400 Kg/H	HDPE
	Heating Zone	5~6 Aluminum Heater	Automatic heating
	Heating power	36KW/H
	Extrusion Motor	Motor 132kw (380V,50HZ)
	Cooling Fan	5~6zone	Automatic cooling
Extrusion system	Summarize	High-grade alloy steel, center feeding
	Die head number	1
	Center distance of die heads	/
	Max die mouth	∮600mm
	Heating zone	6 Stainless steel heating cycle
Clamping system	Summarize	High intension, rigidity, center mold locking, stable mould opening and clamping system
	Clamping force	850~900KN
	Template distance	850~1850mm
	Max mould size	1200X1800mm
	Mould material	High grade 50# steel
Electric system	Summarize	PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)	Japanese Mitsubishi PLC system
	Operate interface	Touch screen, automatic self-diagnose alarm system
	Temperature control	Automatic temperature control module
	Movement control	Japanese Mitsubishi, Chinese/English Version
	Electric protection	Ampere overload, electric short circuit self-protection function
Hydraulic system	Summarize	Multiple function hydraulic integrated block Proportional control, high efficient
	Oil pump motor	Three phase asynchronous motor (380V/220V,50/60HZ) 22kw
	Oil pump	Imported double pump
	Valves	Imported oil pump valves and connections
	Oil pipes	Double layer overpressure resistant
	System pressure	60Kg/cm²
	Cooling system	Separate water cooling cycle, oil cooler cooling system
Pneumatic system	Summarize	Taiwan AIRTAC pneumatic system
	Air pressure	1Mpa
	Air displacement	1.8M3/min
	Electromagnetic valve	AIRTAC
Cooling system	Summarize	Separate cooling system of mould, barrel and oil system
	Cooling medium	Water
	Water flow	18t/h
	Water pressure	0.3-0.6MPa

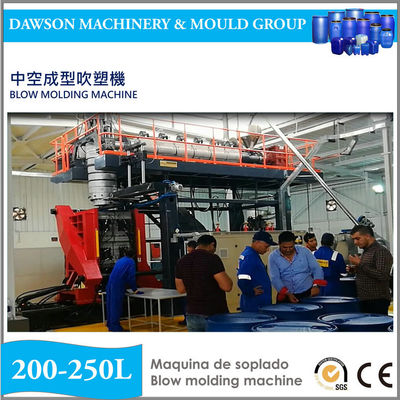

Extrusion Blow Moulding Machine for 120L 160L 220L 250L Drums 0

Extrusion Blow Moulding Machine for 120L 160L 220L 250L Drums 4

Extrusion Blow Moulding Machine for 120L 160L 220L 250L Drums 5

Extrusion Blow Moulding Machine for 120L 160L 220L 250L Drums 6

Extrusion Blow Moulding Machine for 120L 160L 220L 250L Drums 7
