Plastic Sea Ball HDPE High Speed Blow Moulding Machine

1 set
US $25,000-30,000/ Set
Plastic Sea Ball HDPE High Speed Blow Moulding Machine
Features Gallery Product Description Request A Quote
Station: Single Station Or Double Station
Clamping System: Toggle Type Clamping System
Max. Product Volume: 5L
Suitable Material: HDPE,PP,PVC,PS,PETG,LDPE
Model NO.: DSB70II
Transport Package: Film Packing
Origin: Jiangsu Zhangjiagang
Application: Bottles, Jars, Jerry Cans, Gallons, Containers
Die Head: Single Head Or Double Head
Mould: One Cavity Or Two Cavity
Sutiable: 0~5L Bottle
Trademark: DAWSON
Auto-Deflashing: With Auto-Deflashing
Specification: DSB70II
High Light:

Oceanball Plastic Blow Molding Machine


pp ldpe Plastic Blow Molding Machine


5 ltr blow moulding machine

Basic Infomation
Place of Origin: CHINA
Brand Name: DAWSON
Certification: CE
Model Number: DSB70II
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 35-45 working days
Payment Terms: L/C, T/T
Supply Ability: 20-30 sets / month
Product Description

Plastic Sea Ball HDPE High Speed Blow Moulding Machine





Product Description


1, Infrared lamps adoped in the pre-heater ensures PET preforms being heated evenly.
2, Mechanical-double-arm calmping ensures mould being tightly closed under hight pressure and high temperature.
3, Pneumatic system consists of two parts. pneumatic acting part and bottle blowing part in order to meet different requirements for both acting and blowing. It provides sufficient steady high pressure to blowing. It provides sufficient steady high pressure to bloww large irregular shape bottles.
4, Equipped with silencer and oiling system to lubricate the mechanical pars of the machine.
5, Operated step-by-step and in semi-auto maode.
6, Wide-mouth jar and hot-fill bottles can also be made.

Automatic Extrusion Blow Molding Machine DSB70II

 Product: 0~5 L Bottles

Power supply: 380/220v 50/60 Hz Tri-phase

Die head number: Single / Double

Suitable raw material: PE, PP, PVC, PS, PETG

 Output capacity: 180~200 pcs/h (5L) / with single head

400~450 pcs/h (1L) / with double head



Max container capacity L 5
Number of die heads Set 1
Dry cycle time Second 5
Machine dimension (L*W*H) M 3.3*2.3*2.6
Total weight Ton 5.5
Clamping force KN 68
Platen opening stroke mm 200-500
Platen size mm 360*470
Max mould size (W*H) mm 390*470
Mould thickness mm 210-300
Platen moving distance Mm 440
Extrusion motor power KW 22
Oil pump motor power KW 5.5
Extrusion heating power KW 12
Head heating power KW 5.7
Cooling Fan power KW 0.26
Total power KW 45.46
Average power consumption KW 23.5
Screw diameter mm 70
Screw L/D ratio L/D 24
Plasticizing capacity Kg/hour 90
Number of heating zone Zone 3
Extruder heating power KW 14.2
Extruder driving power KW 22
Cooling Fan No   2
Fan power KW 0.26
Head type Continuous extrusion head
Head No 1 2 3 4
Central distance / mm - 160 110 85
Max die diameter / mm 135 80 50 30





Service Process

Good communication with our customers to know the target product detais, output demands, confirm the most suitable blow molding machine models and provide whole project quotations.
2.Mould design
After confirmed the product, our engineers will provide the professional 3D drawing as per your samples, and we can also help you design the bottles as per your own idea or based on our own samples.
3.Drawing confirmation
After finalizing the drawings, we will send to you for approval, only after your approval& signature we will officially start the mould& all project.
4.Machine and mould production
After customer confirm and sign the drawing, we will start the production proces, from sheet-metal process, CNC fine machining, machine assembly, painting, to electrical installing, machine& mould testing, product testing...
We provide sufficient raw materials for each customer's project, to make enugh testing in our factory for both machine and moulds. It will 100% guarantee that there is no any problem before delivery to customer's factory.
6.Product inspection
After mould tested, we will do inspections to dimensions, appearance, cap sealing, thickness, filling lever, drop testing, leakage testing, screw on, to ensure the finishing is 100% as per original sample.
7.Sending samples
After mould tested, we will send the samples to our customer for approval, also will attach a testing report of machine& mould, to make our customer know parameters like cycle time, production capacity, botttle weight, on.
8.Packing delivery
Blow molding machine are packed with plastic film; auxiliary machines and spare parts are packed with wooden boxes. The loading to containers is done according to weight balance, every package's position is fixed in containers to avoid moving. The photos of whole delivery will be sent to our customers for reference.
9.Customer acceptance
After customer received our machine, just arrange to prepare the air, water& electric connections. Then arrange 2~3technical people who had experiences in plastic machinery filed, especially blow molding machine or injection molding machine. They will be trained by our engineers later.
10.Installation and training
We will send the engineers to customer's factory, to test run the machine until it is running in normal state. Customer will bear the round-trip air tickets, accommodating, hotel and technology fee. We will also help customer training their operator how to operation and maintenance machines, make sure they can operate our machine independently.

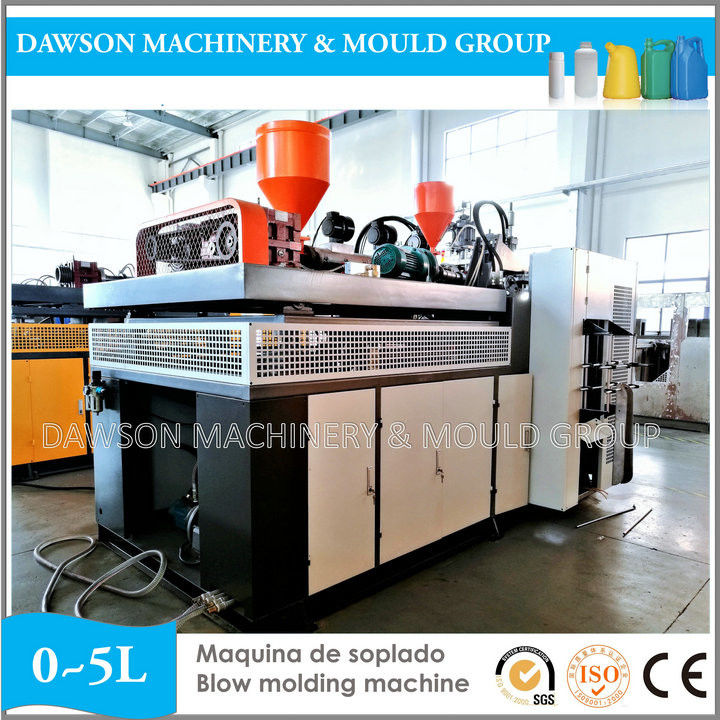

Plastic Sea Ball HDPE High Speed Blow Moulding Machine 0

Plastic Sea Ball HDPE High Speed Blow Moulding Machine 1

Plastic Sea Ball HDPE High Speed Blow Moulding Machine 2


Plastic Sea Ball HDPE High Speed Blow Moulding Machine 3
