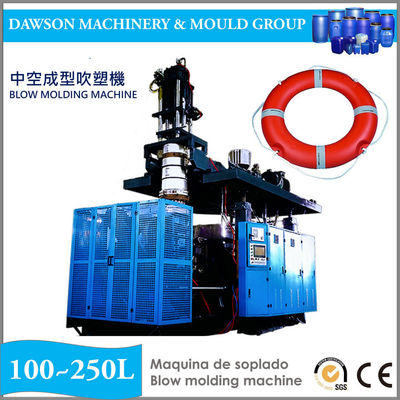

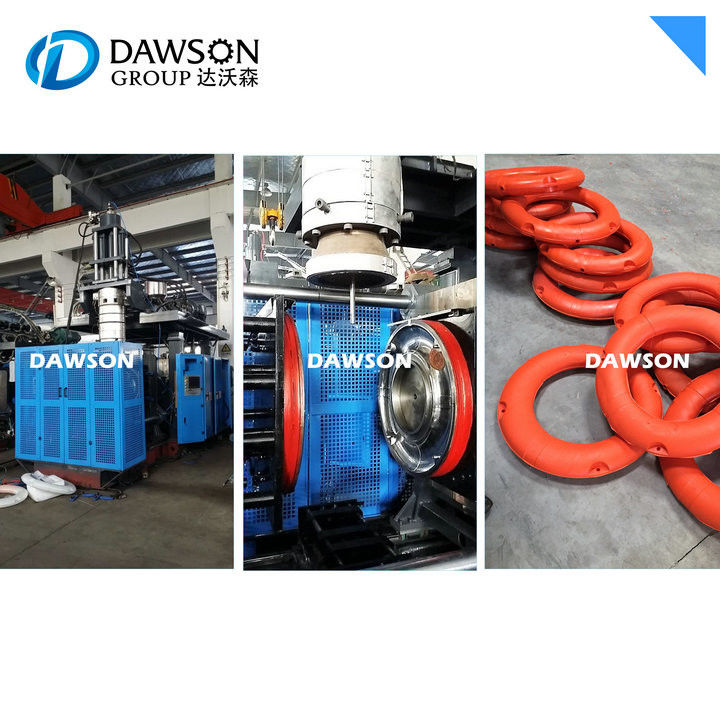

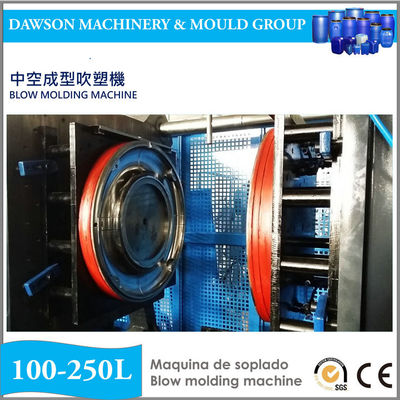

extruder | |||
1 | Screw diameter | 100mm | |
2 | L/D ratio | 24:1 | |
3 | Screw speed | 15~50r.p.m. | |
4 | Drive motor | 45Kw | |
5 | Heating zone with cooling fan | 6 zone | |
6 | Output/Capacity | 170 Kg/hr(HDPE particle) | |
8 | Heating capacity | 25.1 kw | |
9 | Vertical adjustment of head | 500mm | |
10 | Forward/Backward adjustment of head | 500mm | |
11 | Groove feed barrel cylinder | Have IKV | |
12 | Gear box | Hard gear decelerator | |
13 | Ladder and safety rails | Have | |
Accumulator Head | |||
1 | Accumulator capacity | 20L(15kgHDPE) | |
2 | Design | First in and first out | |
3 | Heating zone | 6 zone | |
4 | Heating capacity | 25.1kw | |
5 | Max die&pin diameter | 450mm | |
6 | Die head axis with pre-blow | Ø120mm | |
7 | Accumulator push-out stroke measurement | Transducer Italy Gefran | |
8 | Injection pressure | 12 Mpa | |
9 | Extruder stop | Have | |
CLAMPING UNIT | |||
1 | Tie bar | Two tie bar | |
2 | Platen size | 900(W)X1400(H) | |
3 | Length of mold | 900-960mm | |
4 | Clamping force | 780KN | |
5 | Close/Open stroke | 880-1700mm | |
6 | Mold weight | Max. 5000 kg | |
7 | Clamping stroke measurement | Transducer Italy Gefran | |
8 | Hydraulic valve | Taiwan Hitech | |
9 | Number of hydraulic cylinder | 1 | |
10 | High pressure | 14 Mpa | |
11 | Support parts for platen movement | Liner Guide | |
HYDRAULIC SYSTEM | |||
1 | Main motor/vice motor | AC15Kw/15Kw | |
2 | Hydraulic valve | Taiwan Hitech | |
3 | Hydraulic pump | Taiwan Hitech | |
4 | Oil tank capacity | 850L | |
5 | Operating pressure | 12 Mpa | |
6 | Cooling water for oil | fixed | |
7 | Control of oil level | be observed dipstick | |
PNEUMATIC SYSTEM | |||
1 | Operating pressure | 0.8 Mpa | |
2 | Blow pressure | 0.8 Mpa | |
3 | Needle blow circuit | High & low pressure | |
4 | Intermittent blow | Have | |
5 | Controlled support air for parison | Have | |
6 | Air Valves | AIRTAC | |
7 | Quick exhaust for support air | Have | |
PARISON CONTROL | |||
1 | Programmer | JAPAN MOOG | |
2 | Servo valve | MOOG |
|
3 | Servo cylinder | Intergret of die head | |
4 | Hydraulic pack | TAIWAN YOSHE Variable Displacement Piston Pumps | |
ELECTRICITY | |||
1 | Contactor | Schneider | |
2 | Total connected load (approx.) | 114kw/h | |
3 | Average energy consumption (approx.) | 42 kw/h | |
WATER COOLING | |||
1 | Machine water consumption |
6000L/h | |
2 | Mold water consumption |
6000L/h | |
AIR CONSUMPTION | |||
1 | Compressed air consumption | 1.2 kgf/cm2, 3000 L/min | |
OTHER FEATURES | |||
1 | PLC control | MITSUBISHI | |
2 | Human machine interface | Hitech | |
3 | Recipe storage in hard disk | Available | |
HEATING CONTROL | |||
1 | Power supply to heating element | Relay + Contactor | Japan Omron+Korea LG |
2 | Control | PLC controle | |
3 | Type of thermocouple | K Type | |
4 | Adjustable lower and upper limit alarm | Have | |
5 | Cold start prevention for screw | Have | |
6 | Alarm for thermocouple and heating element breakage | Have, heating element breakage by anperemeter | |
7 | Pre-heating function | Have | |
Die-ring AND Die-pin | |||
1 | one sets of die & pin | One set according to customer | |
2 | Test material | Buyer supply 300kg material to seller for machine testing | |
OPTION | |||
1 | Bottom blow (hydraulic) and sealing unit (pneumatic) | Double blow pin (including expand & up-down & parison seal) | |
2 | Robot | Have | |
3 | Machine Dimension | 6.8×3.3×5 | |
4 | Total weight | 20 |
