Full Automatic Road block Accumulator Extrusion Blow Molding Machine

1 set
MOQ
US $50,000-68,000/ Set
Price
Full Automatic Road block Accumulator Extrusion Blow Molding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: ABLD100
Screw L/D Ratio: 25 L/D
Weight: 22.5 Tons
Company Attribute: Manufacturer
Machine Lifespan: >20 Years
After-Sales Service Provided: Engineers Available To Service Machinery Overseas
Output/Capacity: 170 Kg/Hr(HDPE Particle)
Drive Motor: 45 Kw
Trademark: Dawson
Specification: ABLD100
HS Code: 8477301000
Screw Diameter: 100mm
Max Mold Size: 800X1000mm
Voltage: Customer Specified
Delivery Time: 50~100 Days
Guarantee Time: 1 Year
Accumulator Capacity: 20L(15kghdpe)
Total Weight: 20
Clamping Stroke: Transducer Italy Gefran
Transport Package: Film Packing
Origin: Zhangjiagang, Jiangsu, China
High Light:

PETG Single Station Blow Molding Machine

,

50L Single Station Blow Molding Machine

,

20Ltr Accumulator PET bottle molding machine

Basic Infomation
Place of Origin: CHINA
Brand Name: DAWSON
Certification: CE
Model Number: ABLD100
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 35-45 working days
Payment Terms: L/C, T/T
Supply Ability: 20-30 sets / month
Product Description
Full Automatic Road block Accumulator Extrusion Blow Molding Machine

DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***


Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....


Full Automatic Road block Accumulator Extrusion Blow Molding Machine 0

Full Automatic Road block Accumulator Extrusion Blow Molding Machine 1
Full Automatic Road block Accumulator Extrusion Blow Molding Machine 2
Full Automatic Road block Accumulator Extrusion Blow Molding Machine 3
Full Automatic Road block Accumulator Extrusion Blow Molding Machine 4
Full Automatic Road block Accumulator Extrusion Blow Molding Machine 5

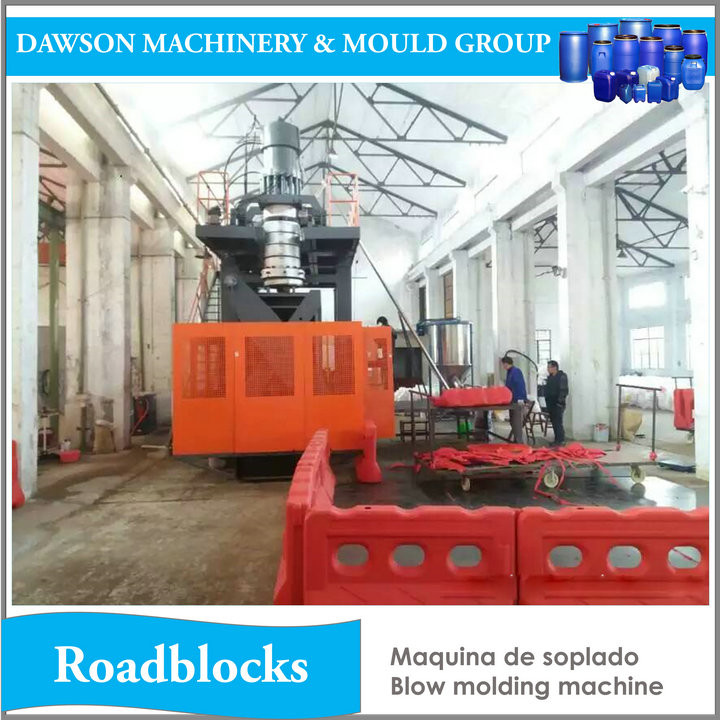

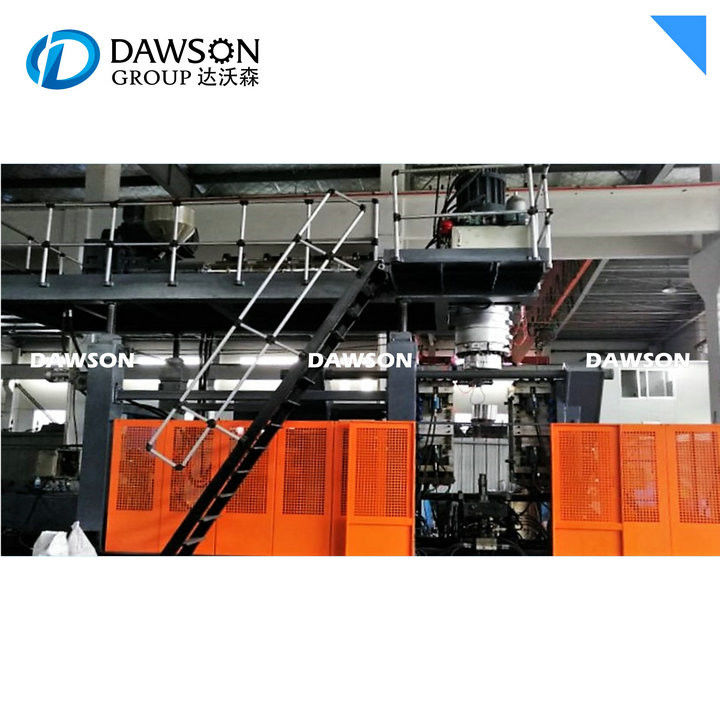

This type of blow molding machine ABLD100 can produce plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 120L. The machine is especially designed for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available.
Single station single die head design, very easy to operate and maintenance.)Most components of the blow moulding machine are from famous world brand.Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
The main components of the machine. ( ABLD100 )


electronic parts

Name Trader
Micro computer control system Japanese MITSUBISHI
Temperature Controller TAIWAN YANHUA PID
Auxiliary Relay OMRON
contactor Schneider from France
Electric motor Three phase 220V or 380V
Power Source TAIWAN MEANWELL
Transducer TAIDA FROM CHINA
hydraulic parts
Name Trader
Oil pump TAIWAN HIGH-TECH
Valve TAIWAN JINSHUN
Oil pump and connection TAIWAN JINSHUN
Sealed part HALLITE
air control system
Name Trader
Cylinder AIRTAC
Air Valve FESTO

Technical Parameters: ( ABLD100)

Full Automatic Road block Accumulator Extrusion Blow Molding Machine 6Full Automatic Road block Accumulator Extrusion Blow Molding Machine 7Full Automatic Road block Accumulator Extrusion Blow Molding Machine 8
