Extrusion Blow Molding Machine for Plastic Solar Floating Tank Base Buoy

Minimum Order Quantity : 1 set Price : US $50,000-68,000/ Set
Packaging Details : Standard Export Packing Delivery Time : 35-45 working days
Payment Terms : L/C, T/T Supply Ability : 20-30 sets / month
Place of Origin: CHINA Brand Name: DAWSON
Certification: CE Model Number: ABLD100

Detail Information

Core Components:: PLC, Engine, Gearbox, Motor, Pump Drive Motor: 45 Kw
Application: Plastic Models, Water Drums, Cooling Box Key Words:: Automatic Extrusion Blow Moulding Machine
Blow Moulding Type:: Extrusion Blow Moulding Machine Dimension: 6.8*3.3*5
Close/Open Stroke: 880-1700mm Total Weight: 20
Trademark: Dawson Specification: ABLD100
HS Code: 8477301000 Max Volume: 250L
Parison Controller: Japan Moog Suitable Material: PP, PE, ABS
Automatic: Full Automatic Blow Molding Machine Contactor: Schneider
Clamping Force: 780kn Mold Weight: Max. 5000 Kg
Compressed Air Consumption: 1.2 Kgf/Cm2, 3000 L/Min Transport Package: Film Packing
Origin: Zhangjiagang, Jiangsu, China
High Light:

250L Automatic Blow Moulding Machine


1700mm Automatic Blow Moulding Machine


45Kw extrusion molding machine

Product Description

Extrusion Blow Molding Machine for Plastic Solar Floating Tank Base Buoy


We have amassed many years of experience in the blow molding industry, strive to advance blow mold technology, and are always creating new ways to optimize plastic machine performance. You can find DAWSON plastic blow molding machinery in 45 countries like North America,South America, Africa ,Europe,Asia and Middle of East countries etc.
In the field of super size blow molding machines, DAWSON is famous and popular on the machine stable performance, best after sale service and sustainable innovation. As the leading manufacturer of blow molding machines in water tanks,Yankang made a lot of industrial standards.

Customer's satisfaction is our biggest pursuit. We believe that quality is the life of an enterprise.


Extrusion blow molding machine ABLD100


1 Screw diameter 100mm
2 L/D ratio 24:1
3 Screw speed 15~50r.p.m.
4 Drive motor 45Kw
5 Heating zone with cooling fan 6 zone
6 Output/Capacity 170 Kg/hr(HDPE particle)
8 Heating capacity 25.1 kw
9 Vertical adjustment of head 500mm
10 Forward/Backward adjustment of head 500mm
11 Groove feed barrel cylinder Have IKV
12 Gear box Hard gear decelerator
13 Ladder and safety rails Have
Accumulator Head
1 Accumulator capacity 20L(15kgHDPE)
2 Design First in and first out
3 Heating zone 6 zone
4 Heating capacity 25.1kw
5 Max die&pin diameter 450mm
6 Die head axis with pre-blow Ø120mm
7 Accumulator push-out stroke measurement Transducer Italy Gefran
8 Injection pressure 12 Mpa
9 Extruder stop Have
1 Tie bar Two tie bar
2 Platen size 900(W)X1400(H)
3 Length of mold 900-960mm
4 Clamping force 780KN
5 Close/Open stroke 880-1700mm
6 Mold weight Max. 5000 kg
7 Clamping stroke measurement Transducer Italy Gefran
8 Hydraulic valve Taiwan Hitech
9 Number of hydraulic cylinder 1
10 High pressure 14 Mpa
11 Support parts for platen movement Liner Guide
1 Main motor/vice motor AC15Kw/15Kw
2 Hydraulic valve Taiwan Hitech
3 Hydraulic pump Taiwan Hitech
4 Oil tank capacity 850L
5 Operating pressure 12 Mpa
6 Cooling water for oil fixed
7 Control of oil level be observed dipstick
1 Operating pressure 0.8 Mpa
2 Blow pressure 0.8 Mpa
3 Needle blow circuit High & low pressure
4 Intermittent blow Have
5 Controlled support air for parison Have
6 Air Valves AIRTAC
7 Quick exhaust for support air Have
1 Programmer JAPAN MOOG
2 Servo valve
3 Servo cylinder Intergret of die head
4 Hydraulic pack TAIWAN YOSHE Variable Displacement Piston Pumps
1 Contactor Schneider
2 Total connected load (approx.) 114kw/h
3 Average energy consumption (approx.) 42 kw/h
Machine water consumption
Mold water consumption
1 Compressed air consumption 1.2 kgf/cm2, 3000 L/min
2 Human machine interface Hitech
3 Recipe storage in hard disk Available
1 Power supply to heating element Relay + Contactor Japan Omron+Korea LG
2 Control PLC controle
3 Type of thermocouple K Type
4 Adjustable lower and upper limit alarm Have
5 Cold start prevention for screw Have
6 Alarm for thermocouple and heating element breakage Have, heating element breakage by anperemeter
7 Pre-heating function Have
Die-ring AND Die-pin
1 one sets of die & pin One set according to customer
2 Test material Buyer supply 300kg material to seller for machine testing
1 Bottom blow (hydraulic) and sealing unit (pneumatic) Double blow pin (including expand & up-down & parison seal)
2 Robot Have
3 Machine Dimension 6.8×3.3×5
4 Total weight 20

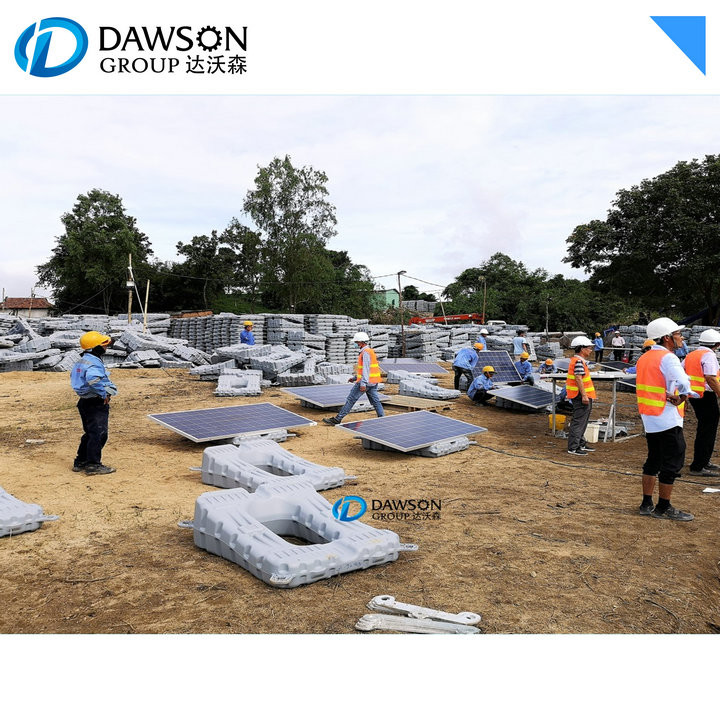

Extrusion Blow Molding Machine for Plastic Solar Floating Tank Base Buoy 0
