Servo Moog 100L Medical Bed Board Blow Molding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Screw Diameter: 100mm
Station Number: Single
Application: Drum, Plate, Float, Roadblocks, Medical Bed Board
Suitable Product Volume: 100-120 L
Screw Drive Power: 55 Kw
Clamping Force: 780 Kn
Mold Stroke: 550-1350mm
Specification: ABLD100
HS Code: 8477301000
Max. Product Volume: 120L
Robot System: Available
Screw L/D Ratio: 28 L/D
Output Of HDPE: 200 Kg/H
Max.Size Of Mold: 800X1000mm
After-Sales Service Provided: Engineers Available To Service Machinery Overseas
Transport Package: Film Packing
Plastic Processed: PE,PET,PP,HDPE,PVC
Highlight:

100Liter plastic moulding machine

,

55Kw plastic moulding machine

,

abs hdpe automatic pet blowing machine

Basic Infomation
Place of Origin: CHINA
Brand Name: DAWSON
Certification: CE
Model Number: ABLD100
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 35-45 working days
Payment Terms: L/C, T/T
Supply Ability: 20-30 sets / month
Product Description


Servo Moog 100L Medical Bed Board Blow Molding Machine
DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***



Production Capacity:

Product Line Name Production Line Capacity Actual Units Produced(Previous Year)

Pipe Making Machine, Blow Molding Machine, Plastic Profile Making Machine, Plastic Recycling Machine, Air Compressor



Pipe Making Machine: 80 Sets Per Year;Blow Molding Machine: 80 Sets Per Year;Plastic Profile Making Machine: 80 Sets Per Year;Plastic Recycling Machine: 80 Sets Per Year;Air Compressor: 500 Sets Per Year

40 Sets;20 Sets;40 Sets;20 Sets;300 Sets









● Co: Dawson Machinery & Mould Group Co.,Ltd
● Tel: 086-0512-58990369
● Mobile/WhatsApp/Wechat: 008615306246783

● Skype:guo.chenliang
● E-mail: jjeasy@dawson-plastic.com
jjeasyguo@hotmail.com
● Add: 18#610 BIGUIYUAN, YANGTANG ROAD, TANGQIAO TOWN, ZHANGJIAGANG CITY, JIANGSU PROVINCE, CHINA




Extrusion blow molding machine ABLD100

extruder
1 Screw diameter 100mm
2 L/D ratio 24:1
3 Screw speed 15~50r.p.m.
4 Drive motor 45Kw
5 Heating zone with cooling fan 6 zone
6 Output/Capacity 170 Kg/hr(HDPE particle)
8 Heating capacity 25.1 kw
9 Vertical adjustment of head 500mm
10 Forward/Backward adjustment of head 500mm
11 Groove feed barrel cylinder Have IKV
12 Gear box Hard gear decelerator
13 Ladder and safety rails Have
Accumulator Head
1 Accumulator capacity 20L(15kgHDPE)
2 Design First in and first out
3 Heating zone 6 zone
4 Heating capacity 25.1kw
5 Max die&pin diameter 450mm
6 Die head axis with pre-blow Ø120mm
7 Accumulator push-out stroke measurement Transducer Italy Gefran
8 Injection pressure 12 Mpa
9 Extruder stop Have
CLAMPING UNIT
1 Tie bar Two tie bar
2 Platen size 900(W)X1400(H)
3 Length of mold 900-960mm
4 Clamping force 780KN
5 Close/Open stroke 880-1700mm
6 Mold weight Max. 5000 kg
7 Clamping stroke measurement Transducer Italy Gefran
8 Hydraulic valve Taiwan Hitech
9 Number of hydraulic cylinder 1
10 High pressure 14 Mpa
11 Support parts for platen movement Liner Guide
HYDRAULIC SYSTEM
1 Main motor/vice motor AC15Kw/15Kw
2 Hydraulic valve Taiwan Hitech
3 Hydraulic pump Taiwan Hitech
4 Oil tank capacity 850L
5 Operating pressure 12 Mpa
6 Cooling water for oil fixed
7 Control of oil level be observed dipstick
PNEUMATIC SYSTEM
1 Operating pressure 0.8 Mpa
2 Blow pressure 0.8 Mpa
3 Needle blow circuit High & low pressure
4 Intermittent blow Have
5 Controlled support air for parison Have
6 Air Valves AIRTAC
7 Quick exhaust for support air Have
PARISON CONTROL
1 Programmer JAPAN MOOG
2 Servo valve
MOOG
3 Servo cylinder Intergret of die head
4 Hydraulic pack TAIWAN YOSHE Variable Displacement Piston Pumps
ELECTRICITY
1 Contactor Schneider
2 Total connected load (approx.) 114kw/h
3 Average energy consumption (approx.) 42 kw/h
WATER COOLING
1
Machine water consumption
6000L/h
2
Mold water consumption
6000L/h
AIR CONSUMPTION
1 Compressed air consumption 1.2 kgf/cm2, 3000 L/min
OTHER FEATURES
1 PLC control MITSUBISHI
2 Human machine interface Hitech
3 Recipe storage in hard disk Available
HEATING CONTROL
1 Power supply to heating element Relay + Contactor Japan Omron+Korea LG
2 Control PLC controle
3 Type of thermocouple K Type
4 Adjustable lower and upper limit alarm Have
5 Cold start prevention for screw Have
6 Alarm for thermocouple and heating element breakage Have, heating element breakage by anperemeter
7 Pre-heating function Have
Die-ring AND Die-pin
1 one sets of die & pin One set according to customer
2 Test material Buyer supply 300kg material to seller for machine testing
OPTION
1 Bottom blow (hydraulic) and sealing unit (pneumatic) Double blow pin (including expand & up-down & parison seal)
2 Robot Have
3 Machine Dimension 6.8×3.3×5
4 Total weight 20

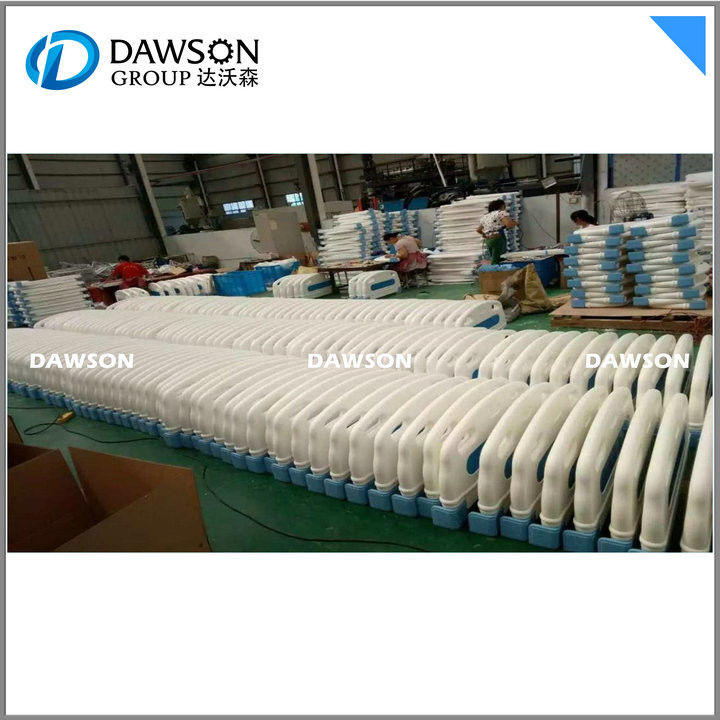

Servo Moog 100L Medical Bed Board Blow Molding Machine 0







Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

Servo Moog 100L Medical Bed Board Blow Molding Machine 1Servo Moog 100L Medical Bed Board Blow Molding Machine 2
Servo Moog 100L Medical Bed Board Blow Molding Machine 3
Servo Moog 100L Medical Bed Board Blow Molding Machine 4
Servo Moog 100L Medical Bed Board Blow Molding Machine 5
Servo Moog 100L Medical Bed Board Blow Molding Machine 6
Servo Moog 100L Medical Bed Board Blow Molding Machine 7
