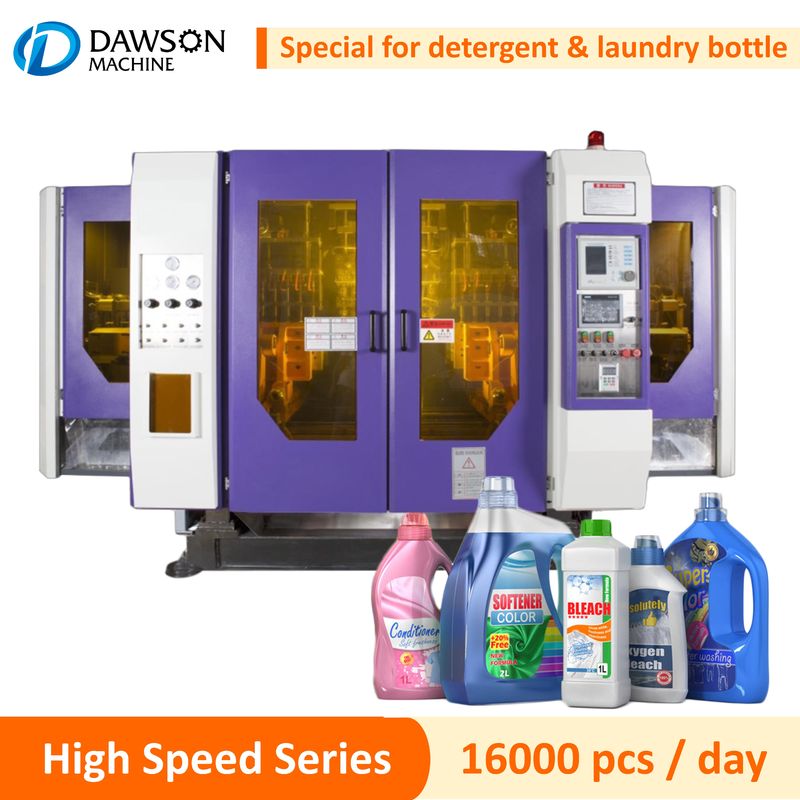

Detergent Bottle Extrusion Blow Molding Machine

Detergent Bottle Extrusion Blow Molding Machine

Brand Name:	DAWSON
Model Number:	FB85
MOQ:	1
Price:	USD 15,700 ~ 95,000 / set
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Max. Product Volume:

5 L

Dry Cycle:

1000 PC/H

Screw Diameter:

85 Mm

Screw L/D Ratio:

24 L/D

Screw Drive Power:

18.5 KW

Screw Heating Capacity:

5-6 KW

Clamping Force:

65 KN

Template Size:

290x320 Mm

Size Of Machine:

3.9x2.0x2.6

Weight Of Machine:

5.5 Ton

Packaging Details:

Standard Export Packing

Supply Ability:

20 set/month

Highlight:

hdpe extrusion blow molding Machine Automatic

4L Laundry extrusion blow molding Machine

Detergent Bottle Extrusion Blow Molding Machine

Product Description

High speed plastic hdpe 2L 3L 4L detergent liquid cleaners chemical bottle making extrusion blow molding machine

DAWSON MACHINERY & MOULD GROUP

High speed Extrusion Blow Molding Machine
Special blow-molding machine for high-speed laundry detergent, dual-station and dual-mould. Under the same floor area and labor cost, the output is much more than that of ordinary machines, and the extra is profit
and automatic configuration from world famous brands to realize the advantages of simple operation
and high automation.

Machine Model		Bottle size	Production forecast
HIGH SPEED SERIES	Double Station 2 Head	1L	680 BPH
		3L	660 BPH

Technical Parameters

	Unit	FB-85-25H+S2X2.10BM
Maximum volume	L	3.8L
Screw diameter	MM	85/25
Screw length diameter ratio	/	1:24
Screw speed RPM	RPM	20-60
Clamping force	KN	110
Opening and closing stroke	MM	580-230
Swing travel	MM	650
Maximum plasticizing force	KG/H	130/5
Effective size of template (height x width)	MM	490x400
Number of heating sections of die head	/	5
Extrusion motor power	KW	30/2.2
Servo hydraulic pump motor power	KW	15(use servo hydraulic to save 30-40% power)
Barrel heating power	KW	11/1
Heating power of die head	KW	5.5
Die head servo motor power	KW	5.5
Hot cutter power	KW	2
Total power of equipment	KW	72.2
Actual power used	KW	28-33
Machine weight	TON	11
Input voltage	V	380V, 50 HZ ±10%
Control voltage	V	DC24V
Equipment size	MM	4497x4139x2655

Details Images


Symmetric Toggle Clamping Structure

对衡式肘节锁模机构


Deceleration Valve for Carriage Movement

移模减速阀


All Switches & Breaker use France Schneider

施耐德开关/断路器


Servo Pump for Hydraulic System

伺服油泵液压系统


Germany Siemens Controlling System

德国西门⼦控制系统


Digital 100 points
Servo Controller

独⽴显⽰100点伺服厚薄控制器


Solid State Relay use TAIWAN FOTEK

固态继电器使用台湾阳明

Professional Workshop

Our professional blow molding machine workshop and service team ...

High Quality Mould

High Quality Blow Molding mould

In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.

We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.

- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat

treatment to HRC62

- Double neck design available to change in future as a spare part necking

- All mould can be made auto-deflashing or manual deflashing as per customer requests

- Perfect mould cooling design to ensure the best moulding preformace

- Available to provide 2D & 3D product drawing for customers

- Available to send samples to customer for approval the product quality

- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...

Company Profile

DAWSON MACHINERY & MOULD GROUP

Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

We have our own service team in

Saudi Arabia, Colombia, Panama, South Africa ...


DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!

Customer Photos

We committed to providing customers with plastic machinery & equipment production lines beyond expectations.

Customer satisfaction is our eternal pursuit...

Our Service

FAQ

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!

can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
