Home /Products/Automatic Blow Moulding Machine/130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing

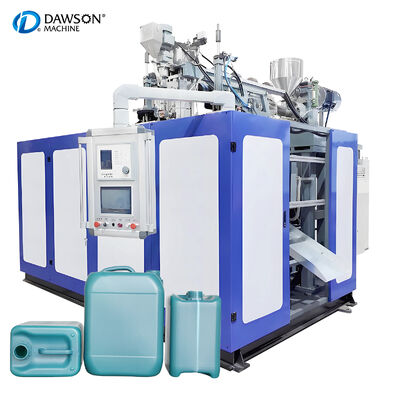

130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing

$34,200/sets 1-4 sets
Price
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing
Features Gallery Product Description Request A Quote
Features
Specifications
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Core Components: PLC, Engine, Bearing, Gearbox, Gear
Plastic Processed: PP, HDPE, ABS, PVC, PE, EVA, PE/PP, HDPE/PP
Place Of Origin: Jiangsu, China
Brand Name: DAWSON
Voltage: 440V/415V/380V/220V
Dimension(l*w*h): 4.4*3.4*3.6
Clamping Force (kN): 270
Screw Diameter (mm): 90
Output (kg/h): 130
Automation: Automatic
No. Of Screw Heating Zone: 4
Screw Heating Power(kw): 10
Extruder Motor Power(kw): 30
Mold Platen Size(width)(mm): 660
Mold Platen Size(height)(mm): 680
Air Pressure(mpa): 0.8
Air Comsumption(m³/min): 2.2
Die Head Heating Power(kw): 8
Power (kw): 67
Weight (t): 11.3
Key Selling Points: Easy To Operate
Warranty: 1 Year
Blow Molding Type: Extrusion Blow Molding Machine
Maximum Application Size: 30L
Cooling Water Pressure: 0.6 MPA
Water Consumption: 100 L/Min
Mould Lifespan: > 1,000,000 Cycles
Mold Material: P20, 2316, S136H, Aluminum With Beryllium Copper.
Language Settings: Chinese, English And Other Language As Customer Need
Labor Demand: 1~2 Operetor
After-sales Service Provided: Send Engineer To Customer's Factory
Marketing Type: Ordinary Product
Highlight:

HDPE extrusion blow molding machine

,

5L jerrycan extrusion blow molding machine

,

High Speed Extrusion Blow Molding Machine
Basic Infomation
Payment & Shipping Terms
Product Description
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 0
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 1
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 2
SPECIFICATIONS
UNITS
DSB90II
Station
double
Max product volume
L
10
Number of die heads
Set
1/2/3/4/6
Dry cycle
PC/H
700*2
Machine dimension (L*W*H)
M
4.4*2.2*2.7
Total weight
Ton
11
CLAMPING UNIT
Clamping force
KN
160
Platen opening stroke
mm
290-680
Platen size
mm
550*530
Max mould size (W*H)
mm
550*530
Platen moving distance
mm
620
POWER
Extrusion motor power
KW
45
Oil pump motor power
KW
18.5
Extrusion heating power
KW
16
Head heating power
KW
8-10
Total power
KW
87.5-89.5
EXTRDER UNIT
Screw diameter
mm
90
Screw L/D ratio
L/D
25
Plasticizing capacity
Kg/hour
150
Number of heating zone
Zone
4
Max die mouth diameter(single head)
mm
200


Click here to send us messages >>Send Inquiry...

130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 3
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 4
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 5
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 6
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 7
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 8
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 9
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 10
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 11
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 12
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 13
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 14
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 15
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 16
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 17
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 18

DAWSON MACHINE & MOULD GROUP

located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
injection molding machine, blow molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 19
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 20
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 21
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 22
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 23

Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.

Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.

Q: What is the lead time?
For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .

Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.

Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.

Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 24
