The 900ml Four Die Heads Double Station Extrusion Blow Molding Machine: A Comprehensive Introduction
In the dynamic world of plastic manufacturing, the 900ml four die heads double station extrusion blow molding machine has emerged as a game - changer. This advanced piece of equipment is designed to meet the high - volume production demands of various industries, offering enhanced efficiency, precision, and versatility.
1. Working Principle
The extrusion blow molding process begins with the plastic material, which is typically in the form of pellets. These pellets are fed into the extruder, where they are melted under high heat and pressure. The molten plastic is then forced through a die head, forming a hollow tube - like structure known as a parison.
In the case of the 900ml four die heads double station extrusion blow molding machine, there are four die heads. This means that four parisons can be produced simultaneously. The double - station design allows for continuous production. While one station is engaged in the blow - molding process, the other station can be loaded with new molds or unloaded with finished products.
Once the parisons are formed, they are quickly transferred to the mold cavities. Compressed air is then injected into the parisons, forcing them to expand and take the shape of the mold cavities. After a short cooling period, the molds open, and the finished plastic products, in this case, products with a capacity of around 900ml, are ejected.
2. Key Features
2.1 High - Output Capacity
The four die heads enable the machine to produce a large number of 900ml plastic products in a single production cycle. This significantly increases the output compared to machines with fewer die heads. For example, in a continuous 8 - hour shift, this machine can produce thousands of units, depending on the complexity of the product and the cycle time. The double - station design further boosts productivity. It reduces the idle time between production cycles as the loading and unloading operations can be carried out simultaneously on the other station. This seamless transition between stations ensures that the machine is running at its maximum potential for a longer period.
2.2 Precise Control

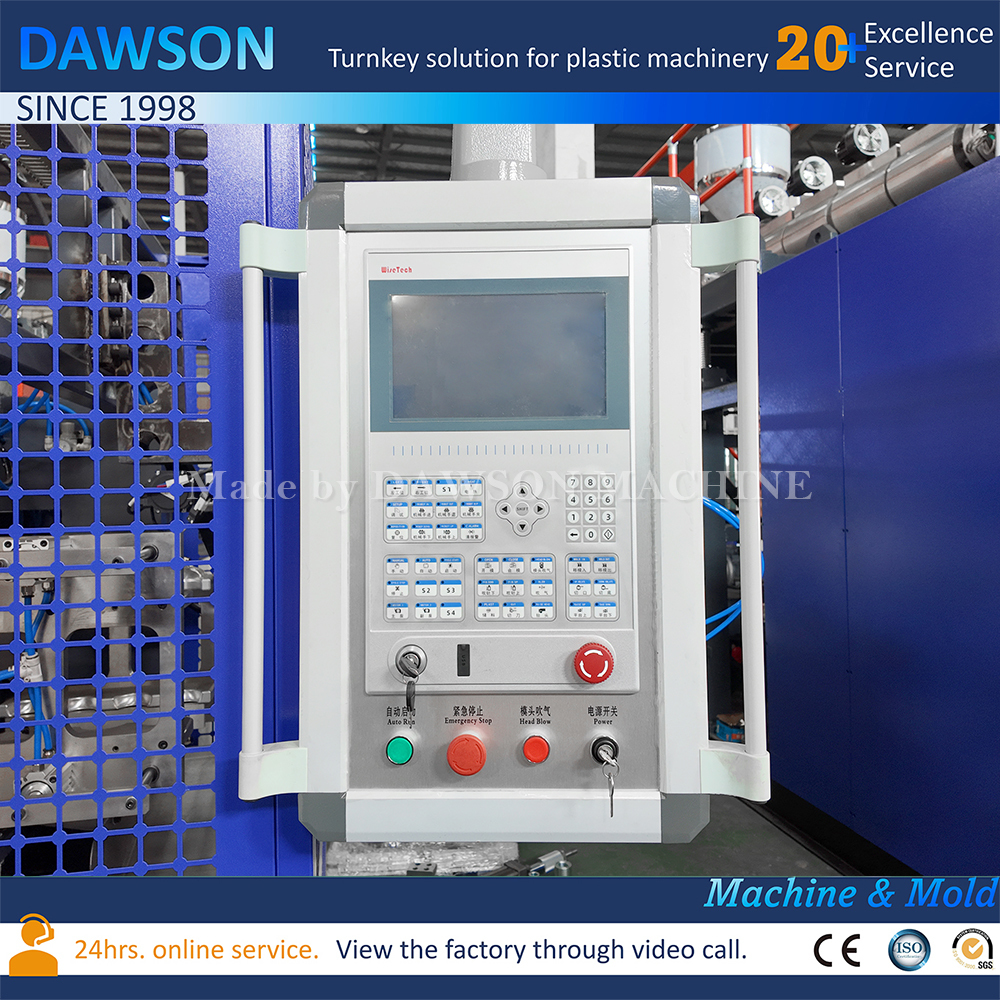

Modern 900ml four die heads double station extrusion blow molding machines are equipped with advanced control systems. These systems allow for precise control over various parameters such as temperature, pressure, and extrusion speed. Precise temperature control is crucial as it affects the viscosity of the molten plastic. If the temperature is too high, the plastic may become too fluid, leading to uneven wall thickness in the final product. On the other hand, if the temperature is too low, the plastic may not flow properly, resulting in defects. The control system ensures that the temperature is maintained within a narrow range, typically within ± 1 - 2°C. Pressure control is equally important. The right amount of pressure is required to extrude the plastic through the die heads and to blow - mold the parisons into the desired shape. The control system can adjust the pressure in real - time, ensuring consistent product quality. Extrusion speed control helps in maintaining a uniform flow of the molten plastic, which is essential for producing products with consistent wall thickness.
2.3 Versatility in Material Processing
This type of blow molding machine is capable of processing a wide range of plastic materials. Common materials include High - Density Polyethylene (HDPE), Low - Density Polyethylene (LDPE), Polypropylene (PP), and Ethylene - Vinyl Acetate (EVA). HDPE is often used for products that require high strength and durability, such as industrial containers. LDPE is preferred for products that need flexibility, like some types of packaging. PP is known for its heat resistance and is used in applications where the product may be exposed to elevated temperatures. EVA offers good impact resistance and is used in certain consumer products. The ability to process different materials makes the 900ml four die heads double station extrusion blow molding machine suitable for a diverse range of industries.
2.4 Mold Compatibility
The machine is designed to be compatible with a variety of molds. This allows manufacturers to produce different shapes and designs of 900ml plastic products. Whether it's a simple cylindrical bottle for beverages or a more complex container with unique features for cosmetics or household chemicals, the appropriate mold can be installed on the machine. The mold - changing process is also relatively efficient. With proper equipment and procedures, molds can be changed within a reasonable time, usually within 30 minutes to an hour, depending on the complexity of the mold and the machine setup. This flexibility in mold compatibility enables manufacturers to quickly adapt to changing market demands and product designs.
3. Applications
The 900ml four die heads double station extrusion blow molding machine has a wide range of applications across multiple industries.
3.1 Packaging Industry
In the packaging industry, this machine is used to produce 900ml plastic bottles for various products. For the food and beverage sector, it can be used to manufacture bottles for juices, sauces, and cooking oils. These bottles need to be lightweight yet strong enough to protect the contents during transportation and storage. In the cosmetics industry, 900ml containers produced by this machine can be used for shampoos, conditioners, and body lotions. The ability to produce containers with smooth surfaces and precise dimensions is crucial for cosmetic packaging as it enhances the product's aesthetic appeal. In the household chemicals segment, 900ml bottles are used for detergents, cleaning agents, and fabric softeners. The machine can produce bottles with tamper - evident features and easy - to - use dispensing mechanisms, meeting the requirements of both manufacturers and consumers.
3.2 Pharmaceutical Industry
The pharmaceutical industry requires high - quality plastic containers for storing liquid medications, syrups, and other pharmaceutical products. The 900ml four die heads double station extrusion blow molding machine can produce containers that meet the strict quality and safety standards of the pharmaceutical industry. The materials used are often selected for their chemical resistance to ensure that the plastic does not interact with the medications. The smooth inner surface of the containers produced by this machine reduces the risk of product residue sticking to the walls, which is important for maintaining the purity of the pharmaceutical product.
3.3 Industrial Sector
In the industrial sector, 900ml plastic containers produced by this machine are used for storing and transporting industrial chemicals, lubricants, and coolants. These containers need to be highly durable and resistant to the harsh chemicals they may come into contact with. The machine can produce containers with thick walls and reinforced structures to meet these demanding requirements. For example, containers for storing aggressive industrial acids need to be made of materials that can withstand corrosion over long periods. The 900ml size is also convenient for handling and storage in industrial settings.
4. Advantages over Single - Die Head or Single - Station Machines
4.1 Increased Productivity
As mentioned earlier, the four die heads and double - station design of this machine result in a significant increase in productivity. Single - die head machines can only produce one parison at a time, which means that the production rate is much lower. Similarly, single - station machines require downtime for loading and unloading operations, which reduces the overall operating time. The 900ml four die heads double station extrusion blow molding machine can produce multiple products simultaneously and has overlapping work processes, leading to a much higher output in the same amount of time.
4.2 Cost - Efficiency
Higher productivity directly translates to cost - efficiency. With more products being produced in a single shift, the fixed costs of running the machine, such as energy consumption, labor, and equipment depreciation, are spread over a larger number of units. This reduces the per - unit production cost. Additionally, the ability to quickly change molds and adapt to different product designs allows manufacturers to respond to market demands without incurring excessive costs associated with long production runs of a single product.
4.3 Better Quality Control
The advanced control systems in the four die heads double station extrusion blow molding machine enable better quality control. By precisely controlling the temperature, pressure, and extrusion speed, manufacturers can produce products with consistent wall thickness, weight, and overall quality. In contrast, single - die head or single - station machines may be more prone to variations in product quality due to less precise control and longer production cycles. The ability to produce multiple products simultaneously also allows for better comparison and adjustment of the production process to ensure that all products meet the required quality standards.
5. Maintenance and Service
To ensure the continuous and efficient operation of the 900ml four die heads double station extrusion blow molding machine, regular maintenance is essential.
5.1 Routine Checks
Routine checks should include inspecting the heating elements to ensure they are functioning properly. Faulty heating elements can lead to inconsistent melting of the plastic, resulting in product defects. The cooling system also needs to be checked regularly. A malfunctioning cooling system can cause the plastic to cool unevenly, affecting the shape and quality of the final product. The hydraulic and pneumatic systems, if applicable, should be inspected for leaks and proper pressure levels. Leaks in these systems can lead to reduced performance and increased energy consumption.
5.2 Lubrication
Proper lubrication of moving parts is crucial for the smooth operation of the machine. The gears, bearings, and other mechanical components should be lubricated at regular intervals as per the manufacturer's recommendations. Using the correct type of lubricant is also important. Incorrect lubricants can cause premature wear and tear of the components, leading to costly repairs and downtime.
5.3 Training and Support
Manufacturers should provide comprehensive training to the operators and maintenance staff of the machine. Operators need to be trained on how to properly set up the machine for different products, adjust the control parameters, and troubleshoot common issues. Maintenance staff should be trained on how to perform routine maintenance tasks, replace worn - out parts, and carry out more complex repairs. Additionally, manufacturers should offer after - sales support, including timely supply of spare parts and technical assistance in case of major breakdowns.
In conclusion, the 900ml four die heads double station extrusion blow molding machine is a highly advanced and efficient piece of equipment. Its unique features, wide range of applications, and advantages over traditional machines make it an ideal choice for plastic manufacturers looking to increase productivity, improve product quality, and meet the diverse demands of various industries. With proper maintenance and service, this machine can provide reliable and long - term performance, contributing to the success of plastic manufacturing businesses.
