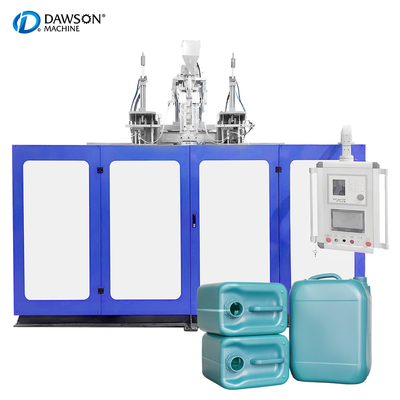

Double Station Double Die Head Plastic HDPE 5L 10L EURO ADBLUE Canister Blow Molding Machine

1 set
MOQ
USD 32900-34200
Price
Double Station Double Die Head Plastic HDPE 5L 10L EURO ADBLUE Canister Blow Molding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Blow Molding Type: Extrusion Blow Molding Machine
Maximum Application Size: 30L
Cooling Water Pressure: 0.6 MPA
Water Consumption: 100 L/Min
Mould Lifespan: > 1,000,000 Cycles
Mold Material: P20, 2316, S136H, Aluminum With Beryllium Copper.
Language Settings: Chinese, English And Other Language As Customer Need
Labor Demand: 1~2 Operetor
After-sales Service Provided: Send Engineer To Customer's Factory
Marketing Type: Ordinary Product
Highlight:

10L Plastic Blow Molding Machine

,

Double Station Plastic Blow Molding Machine

,

Double Die Head Blow Moulding Machine
Basic Infomation
Place of Origin: China
Brand Name: Dawson
Certification: CE
Payment & Shipping Terms
Payment Terms: L/C, T/T
Product Description

Double Station Double Die Head Plastic HDPE 5L 10L EURO ADBLUE Canister Blow Molding Machine 0

Double Station Double Die Head Plastic HDPE 5L 10L EURO ADBLUE Canister Blow Molding Machine 1

5-10L Jerry Can Blow Molding Machine

In the highly competitive plastic manufacturing industry, the 5 - 10L Double Station Double Die Head Jerry Can Blow Molding Machine stands out for its remarkable production efficiency and cost - effectiveness.​

Increased Output​
As mentioned earlier, the dual - station and double - die - head design enables a substantial increase in production output. This not only allows manufacturers to meet larger orders but also helps in reducing the per - unit production cost. When producing in larger volumes, the fixed costs associated with running the machine, such as energy consumption, maintenance, and operator labor, are spread over a greater number of units.

The ability to accurately control the wall thickness of the parison means that just the right amount of plastic is used for each jerry can. In traditional blow - molding machines, over - extrusion or inconsistent wall thickness often leads to wasted plastic. With the 5 - 10L Double Station Double Die Head machine, the waste percentage can be reduced to as low as 5%, compared to 10 - 15% in some older models. This not only saves on material costs but also has environmental benefits by reducing plastic waste.​

Energy - Saving Features​
Modern versions of this blow - molding machine are designed with energy - efficiency in mind. Servo - motor - driven systems are increasingly being used instead of traditional hydraulic systems. Servo motors consume less energy as they only draw power when required, unlike hydraulic systems that run continuously. Additionally, the heating and cooling systems are optimized to reduce energy consumption. For example, intelligent temperature control systems can adjust the heating power based on the actual temperature of the plastic, preventing over - heating and unnecessary energy usage. These energy - saving features can result in a 20 - 30% reduction in overall energy consumption, which is a significant cost savings over time.​

Fast Change - Over Times​
In a dynamic manufacturing environment, the ability to quickly switch between different jerry can designs or sizes is crucial. The 5 - 10L Double Station Double Die Head machine is designed with easy - to - change molds. The mold - changing process can be completed in a relatively short time, usually within 15 - 30 minutes. This is much faster than some older models that may take an hour or more. The quick change - over times mean that manufacturers can respond more rapidly to market demands, producing different types of jerry cans as needed without significant downtime.



Double Station Double Die Head Plastic HDPE 5L 10L EURO ADBLUE Canister Blow Molding Machine 2

SPECIFICATIONS UNITS DSB90II
Station   double
Max product volume L 10
Number of die heads Set 1/2/3/4/6
Dry cycle PC/H 700*2
Machine dimension (L*W*H) M 4.4*2.2*2.7
Total weight Ton 11
CLAMPING UNIT
Clamping force
 KN 160
Platen opening stroke

mm

 290-680
Platen size mm 550*530
Max mould size (W*H) mm 550*530
Platen moving distance mm 620
POWER
Extrusion motor power KW 45
Oil pump motor power18 KW 18.5
Extrusion heating power KW 16
Head heating power KW 8-10
Total power KW 87.5-89.5
EXTRDER UNIT
Screw diameter mm 90
Screw L/D ratio L/D 25
Plasticizing capacity Kg/hour 150
Number of heating zone Zone 4
Max die mouth diameter(single head) mm 200

Double Station Double Die Head Plastic HDPE 5L 10L EURO ADBLUE Canister Blow Molding Machine 3Double Station Double Die Head Plastic HDPE 5L 10L EURO ADBLUE Canister Blow Molding Machine 4Double Station Double Die Head Plastic HDPE 5L 10L EURO ADBLUE Canister Blow Molding Machine 5Double Station Double Die Head Plastic HDPE 5L 10L EURO ADBLUE Canister Blow Molding Machine 6Double Station Double Die Head Plastic HDPE 5L 10L EURO ADBLUE Canister Blow Molding Machine 7Double Station Double Die Head Plastic HDPE 5L 10L EURO ADBLUE Canister Blow Molding Machine 8Double Station Double Die Head Plastic HDPE 5L 10L EURO ADBLUE Canister Blow Molding Machine 9Double Station Double Die Head Plastic HDPE 5L 10L EURO ADBLUE Canister Blow Molding Machine 10Double Station Double Die Head Plastic HDPE 5L 10L EURO ADBLUE Canister Blow Molding Machine 11Double Station Double Die Head Plastic HDPE 5L 10L EURO ADBLUE Canister Blow Molding Machine 12Double Station Double Die Head Plastic HDPE 5L 10L EURO ADBLUE Canister Blow Molding Machine 13Double Station Double Die Head Plastic HDPE 5L 10L EURO ADBLUE Canister Blow Molding Machine 14

DAWSON MACHINE & MOULD GROUP



located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
injection molding machine, blow molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!

Double Station Double Die Head Plastic HDPE 5L 10L EURO ADBLUE Canister Blow Molding Machine 15Double Station Double Die Head Plastic HDPE 5L 10L EURO ADBLUE Canister Blow Molding Machine 16Double Station Double Die Head Plastic HDPE 5L 10L EURO ADBLUE Canister Blow Molding Machine 17
