Features

Specifications

Blow Molding Type: Extrusion Blow Molding Machine

Maximum Application Size: 30L

Cooling Water Pressure: 0.6 MPA

Water Consumption: 100 L/Min

Mould Lifespan: > 1,000,000 Cycles

Mold Material: P20, 2316, S136H, Aluminum With Beryllium Copper.

Language Settings: Chinese, English And Other Language As Customer Need

Labor Demand: 1~2 Operetor

After-sales Service Provided: Send Engineer To Customer's Factory

Marketing Type: Ordinary Product

Highlight:

Wholesale Blow Molding Machine

Plastic Jerry Can Blow Molding Machine

Plastic Bottle Production Blow Molding Machine

Basic Infomation

Place of Origin: China

Brand Name: Dawson

Certification: CE

Payment & Shipping Terms

Payment Terms: L/C, T/T

Gallery

Wholesale Plastic Jerry Can Production Plastic Bottle Blow Molding Machine

Product Description

Wholesale Plastic Jerry Can Production Plastic Bottle Blow Molding Machine 0

Wholesale Plastic Jerry Can Production Plastic Bottle Blow Molding Machine 1

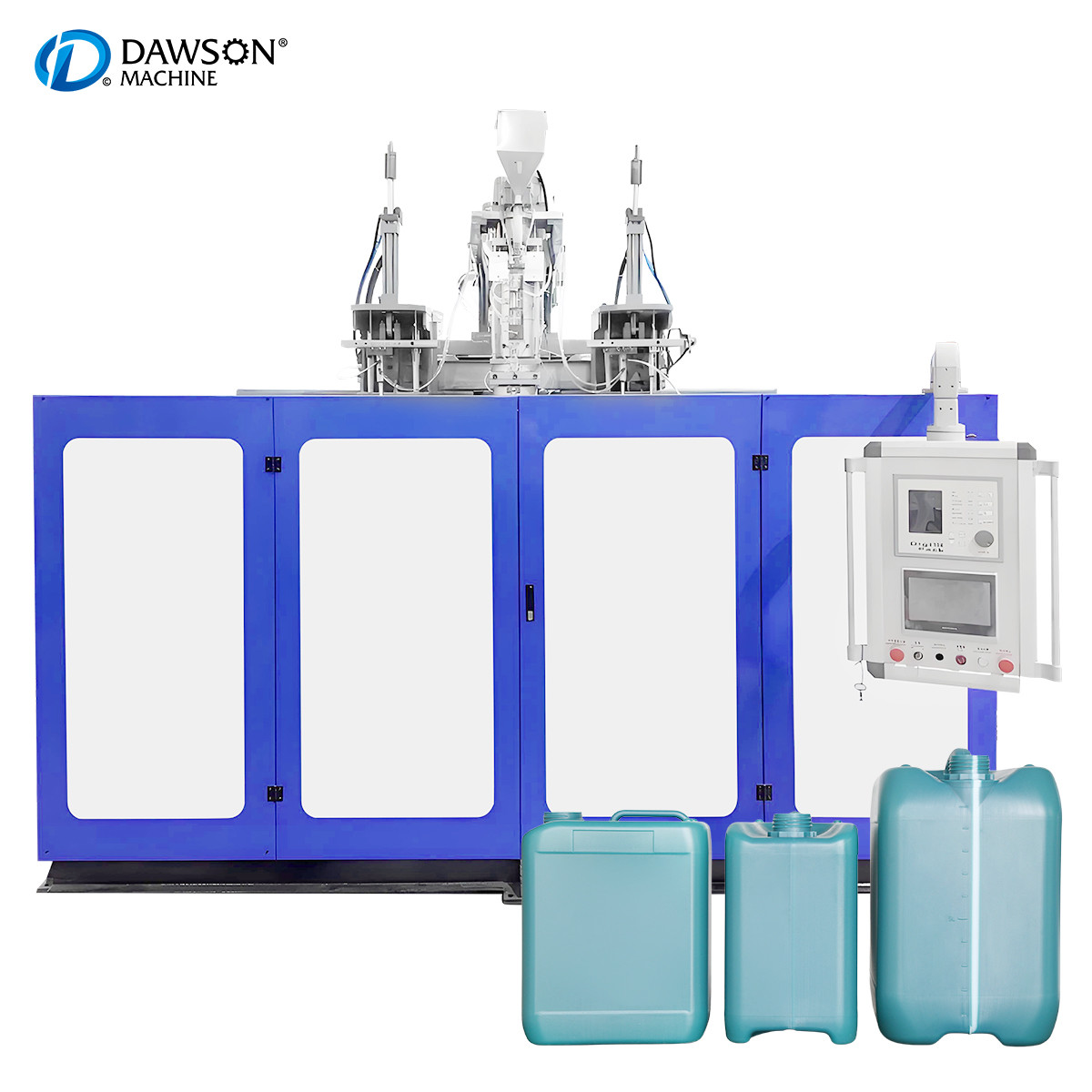

5-10L Jerry Can Blow Molding Machine

The 5 - 10L Double Station Double Die Head Jerry Can Blow Molding Machine is a paragon of modern engineering, designed to meet the high - demand production needs of the plastic container industry. Its unique double - station and double - die - head configuration is a game - changer in the manufacturing process.

Dual Station Advantage

The dual - station setup allows for simultaneous production of two jerry cans. This significantly boosts the output rate. While a single - station machine might produce one can per cycle, the double - station model can produce two, effectively doubling the productivity within the same time frame. For example, if a single - station machine has a cycle time of 30 seconds per can, the double - station machine can produce two cans in 30 seconds, increasing the hourly output from 120 cans to 240 cans. This is a huge advantage for manufacturers looking to scale up their production quickly.

Precision Die Head Technology

The double die heads are engineered with extreme precision. They are responsible for extruding the molten plastic into a parison, the initial shape that will be blown into a jerry can. The ability to control the thickness of the parison is crucial. With advanced computer - aided design (CAD) and manufacturing (CAM) techniques, these die heads can achieve a wall thickness variation of less than ±0.5mm. This level of precision ensures that the final jerry cans are not only of high quality but also meet strict safety and durability standards. For instance, in the production of fuel - storage jerry cans, a consistent wall thickness is essential to prevent leaks and ensure safe handling.

Robust Construction

The machine's frame is made of high - strength steel, providing stability during the high - pressure blow - molding process. The heavy - duty construction also contributes to the machine's long - term reliability. Components such as the clamping mechanism, which holds the molds together during the inflation of the parison, are designed to withstand continuous use and high - stress conditions. The hydraulic or servo - driven clamping systems can exert up to several tons of force, ensuring a tight seal between the molds and preventing any plastic leakage.

Efficient Heating and Cooling Systems

To transform the plastic pellets into a molten state suitable for extrusion, the machine is equipped with high - efficiency heating elements. These heaters can quickly raise the temperature of the plastic to the optimal processing range, which is typically around 180 - 230°C for common plastics like HDPE. On the other hand, the cooling system is equally important. After the parison is blown into the mold, rapid cooling is required to solidify the plastic and give the jerry can its final shape. The cooling system, which may use a combination of air and water cooling, can reduce the temperature of the plastic from processing temperature to ambient temperature within seconds, minimizing the cycle time.

Wholesale Plastic Jerry Can Production Plastic Bottle Blow Molding Machine 2

SPECIFICATIONS	UNITS	DSB90II
Station		double
Max product volume	L	10
Number of die heads	Set	1/2/3/4/6
Dry cycle	PC/H	700*2
Machine dimension (LWH)	M	4.42.22.7
Total weight	Ton	11
CLAMPING UNIT
Clamping force	KN	160
Platen opening stroke	mm	290-680
Platen size	mm	550*530
Max mould size (W*H)	mm	550*530
Platen moving distance	mm	620
POWER
Extrusion motor power	KW	45
Oil pump motor power18	KW	18.5
Extrusion heating power	KW	16
Head heating power	KW	8-10
Total power	KW	87.5-89.5
EXTRDER UNIT
Screw diameter	mm	90
Screw L/D ratio	L/D	25
Plasticizing capacity	Kg/hour	150
Number of heating zone	Zone	4
Max die mouth diameter(single head)	mm	200

Wholesale Plastic Jerry Can Production Plastic Bottle Blow Molding Machine 3

DAWSON MACHINE & MOULD GROUP

located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
injection molding machine, blow molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!
