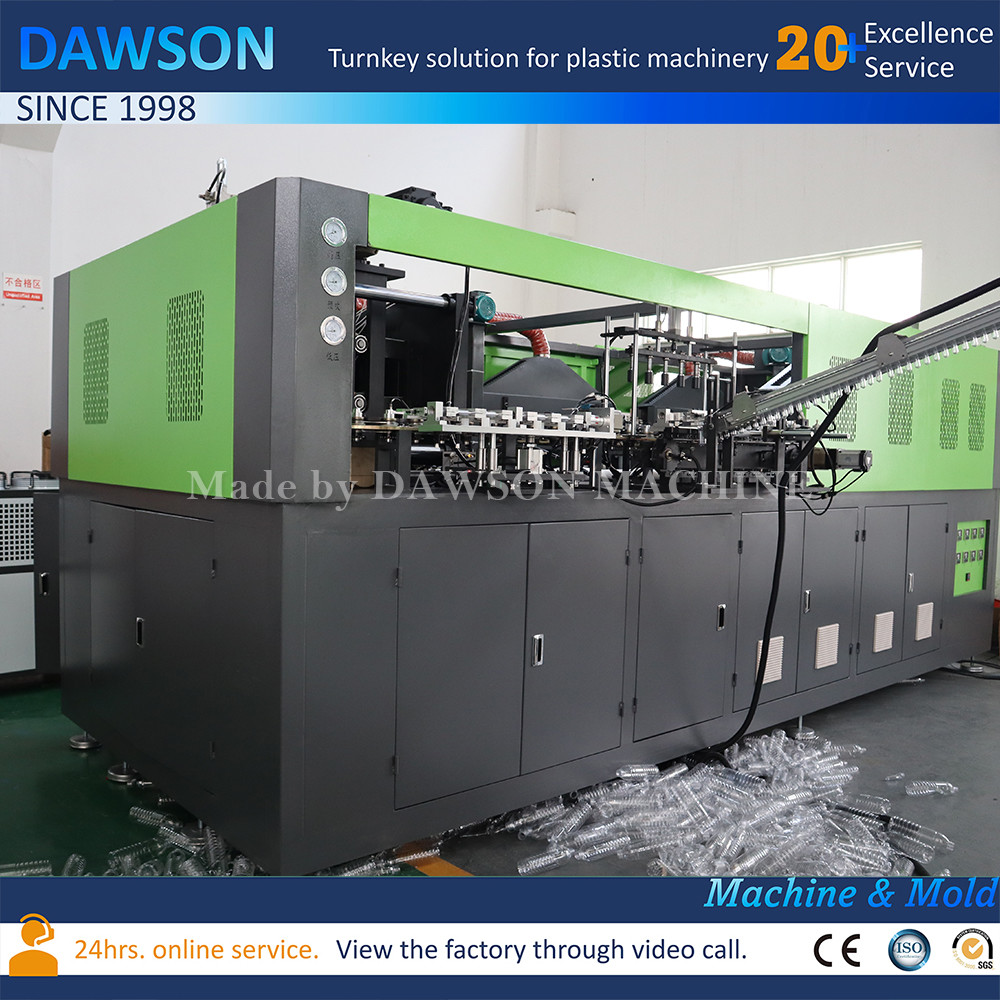

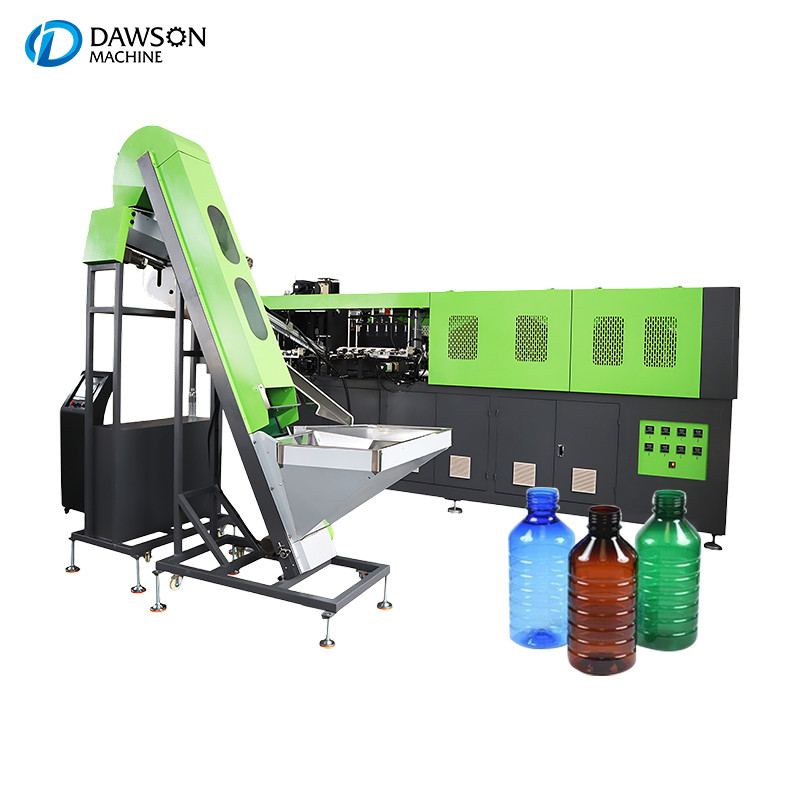

Automatic PET Bottle Blow Molding Machine
Cosmetic/juice/edible oil/medicine/water CSD
This automatic coating machine is designed to apply a uniform and smooth coating onto various substrates. It can be used for a wide range of coating materials, such as paints, varnishes, and adhesives. The machine's advanced spraying or rolling system ensures even coverage, enhancing the appearance and durability of the coated products. Its adjustable coating thickness and drying process make it suitable for different application requirements, whether it's for decorative purposes or for adding protective layers.
| Model | ZP1500-6C | |
| Bottle type specification | Cavity | 6 |
| Max.volume | 1.5L | |
| Bottle mouth maximum overall diameter | 28-86mm | |
| Bottle biggest diameter | 65mm | |
| Bottle maximum height | 340mm | |
| Production specification | Theoretical output | 10000BPH |
| Bottle type capacity | 500ML | |
| Bottle type weight | 149 | |
| Bottle type | circular | |
| Power specification | Light tube quantity | 48pcs |
| Light tube power | 2KW | |
| Maximun heating power | 60KW | |
| All electric machine installation | 75KW | |
| Actual consumption | 40%--70% | |
| Air pressure specification | Work pressure | 5-6kg/cm2 |
| Temperature range | 10℃ | |
| Comsumption | 8000kcal/hr | |
| Forzen qater flow | 138L/min | |
