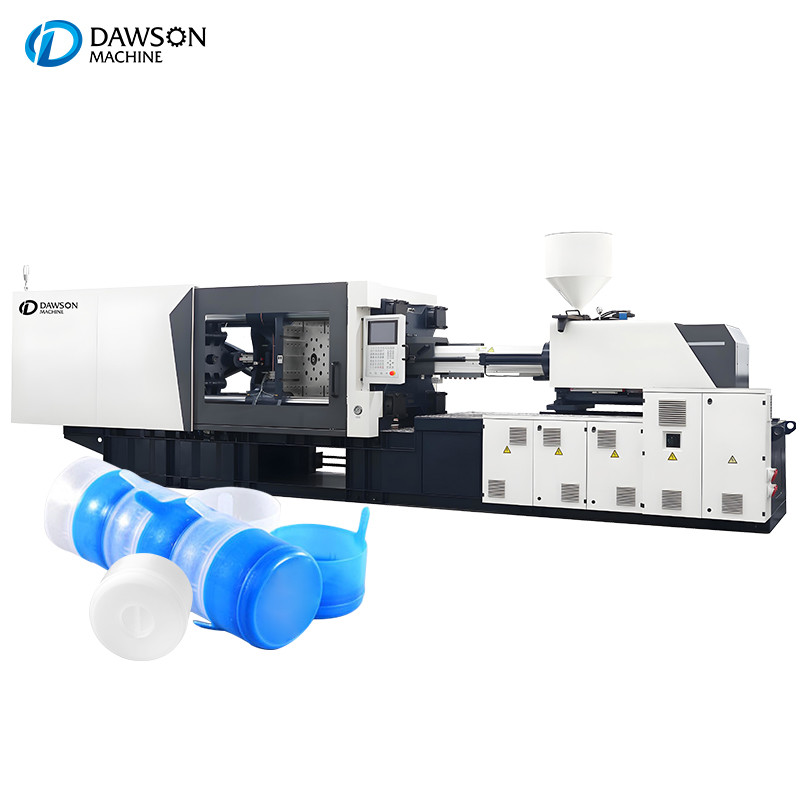

Plastic Injection Molding Machine SM-ll
Complete PET Manufacturing Solutions: Our machines are optimized for making PET preforms, buckets, lids, and more, with a focus on precision and efficiency. Featuring specialized screws for PET, cutting-edge Taiwan control systems, and reliable Japan YUKEN hydraulic valves, they deliver high performance. Mold designing and manufacturing services are also available to support your production goals.
| INTERNA TIONAL CLASS |
SM-90ll |
SM-110ll | SM-150ll | SM-180ll | |
| Clamping force | KN |
900 |
1100 | 1500 | 1800 |
| Opening stroke | mm | 320 | 360 | 380 | 435 |
| Distance between tie-bars | mm | 370*320 | 420*370 | 470*420 | 530*470 |
| Max.mold height | mm | 380 | 400 | 500 | 550 |
| Min. mold height | mm | 150 | 150 | 160 | 200 |
| Ejector stroke | mm | 90 | 100 | 120 | 140 |
| Ejector stroke | KN | 33 | 38 | 50 | 53 |
