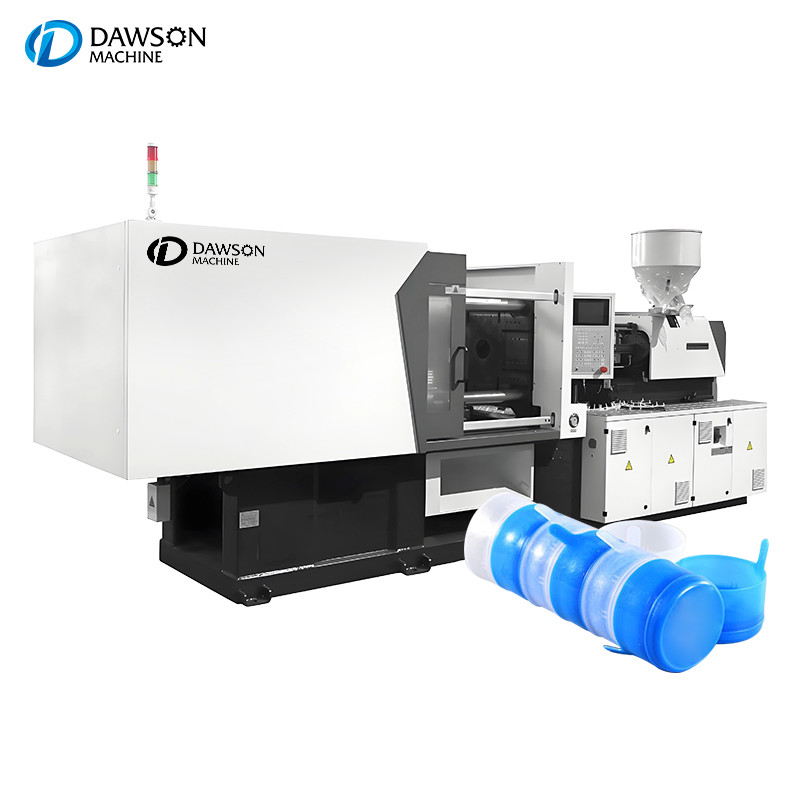

Plastic Injection Molding Machine SM-ll
Comprehensive Solutions for PET Products: Designed for creating PET preforms, jars, pails, and other plastic items, our machines feature special PET screws and Taiwan’s state-of-the-art control systems. The integration of Japan YUKEN hydraulic valves ensures reliable and consistent performance. We also excel in mold design and manufacturing to help you succeed in your plastic production ventures.
| INTERNA TIONAL CLASS |
SM-90ll |
SM-110ll | SM-150ll | SM-180ll | |
| Clamping force | KN |
900 |
1100 | 1500 | 1800 |
| Opening stroke | mm | 320 | 360 | 380 | 435 |
| Distance between tie-bars | mm | 370*320 | 420*370 | 470*420 | 530*470 |
| Max.mold height | mm | 380 | 400 | 500 | 550 |
| Min. mold height | mm | 150 | 150 | 160 | 200 |
| Ejector stroke | mm | 90 | 100 | 120 | 140 |
| Ejector stroke | KN | 33 | 38 | 50 | 53 |
