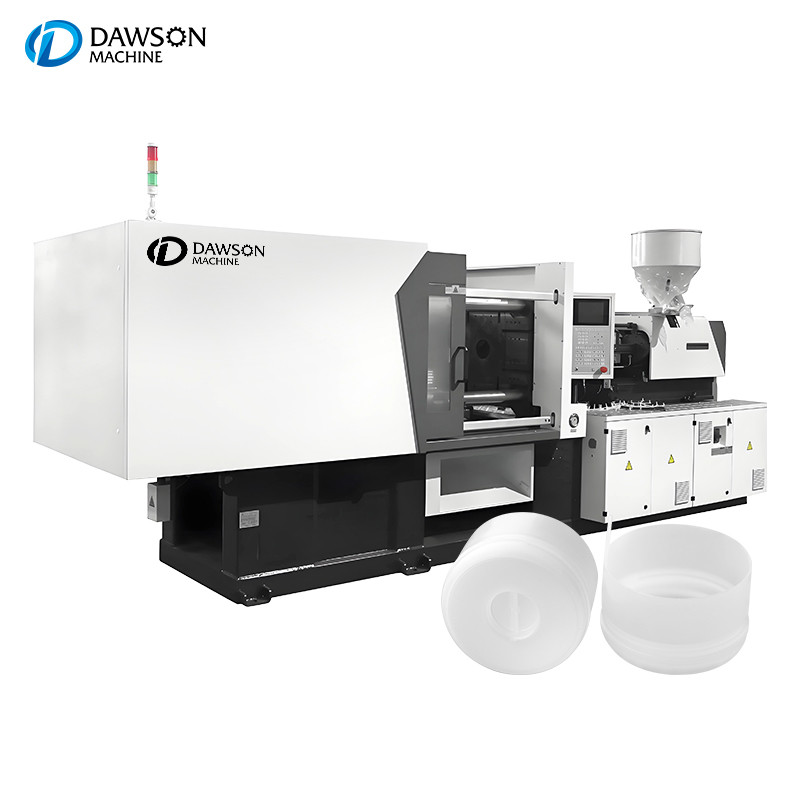

Plastic Injection Molding Machine SM-ll
specialized for making PET preforms , caps , pails, buckets, jars, covers, lids. Specialscrew for PET products, all machine adapt latest Taiwan control system, JapanYUKEN hydraulic valve for highest quality standard and machine performance. Wealso able to provide mould designing and manufacturing to help you build up allkinds of plastic items manufacturing.
| INTERNA TIONAL CLASS |
SM-90ll |
SM-110ll | SM-150ll | SM-180ll | |
| Clamping force | KN |
900 |
1100 | 1500 | 1800 |
| Opening stroke | mm | 320 | 360 | 380 | 435 |
| Distance between tie-bars | mm | 370*320 | 420*370 | 470*420 | 530*470 |
| Max.mold height | mm | 380 | 400 | 500 | 550 |
| Min. mold height | mm | 150 | 150 | 160 | 200 |
| Ejector stroke | mm | 90 | 100 | 120 | 140 |
| Ejector stroke | KN | 33 | 38 | 50 | 53 |
