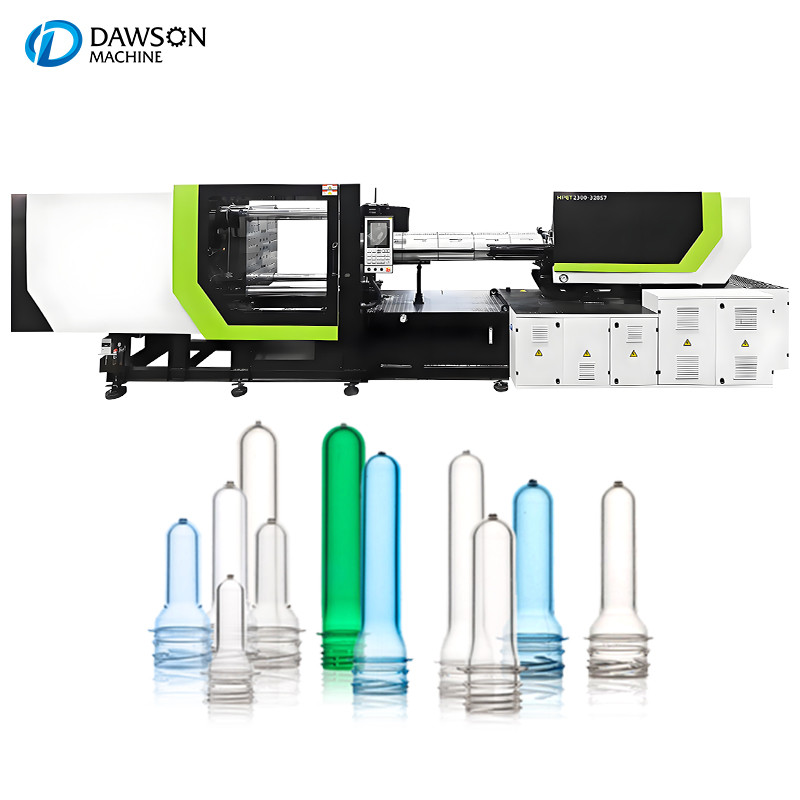

Our PET preform injection molding machine offers exceptional versatility, accommodating various production scales and requirements. This adaptability allows you to adjust production volumes or product sizes as your business needs evolve, without requiring additional investments in new equipment.
.
| INJECTION UNIT | HPET1500/288S7 | HPET1500/328S7 | HPET2300/S328S7 | HPET3100/S328S7 | |
| Screw diameter | mm | 75 | 75 | 83 | 95 |
| Injection pressure | Mpa | 118 | 118 | 138 | 105 |
| Screw L/D ratio | L/D | 24 | 24 | 24 | 24 |
| Injection rate | g/s | 543 | 680 | 580 | 760 |
| Shot volume | cm³ | 1262.5 | 1262.5 | 1974.2 | 2585.8 |
| Shot weight | g | 1515 | 1515 | 2369 | 3103 |
| Clamp tonnage | KN | 2880 | 3280 | 3280 | 3280 |
| Opening stroke | mm | 520 | 590 | 590 | 590 |
| Space between tie-bars | mm | 630*600 | 680*680 | 680*680 | 680*680 |
| Platen size | mm | 900*870 | 990*990 | 990*990 | 990*990 |
| Mould height | mm | 300-600 | 300-660 | 300-660 | 300-660 |
| Ejector stroke | mm | 180 | 200 | 200 | 200 |
| Ejector tonnage | KN | 100 | 177 | 177 | 177 |
| Ejector pins | - | 8+1 | 12+1 | 12+1 | 12+1 |
