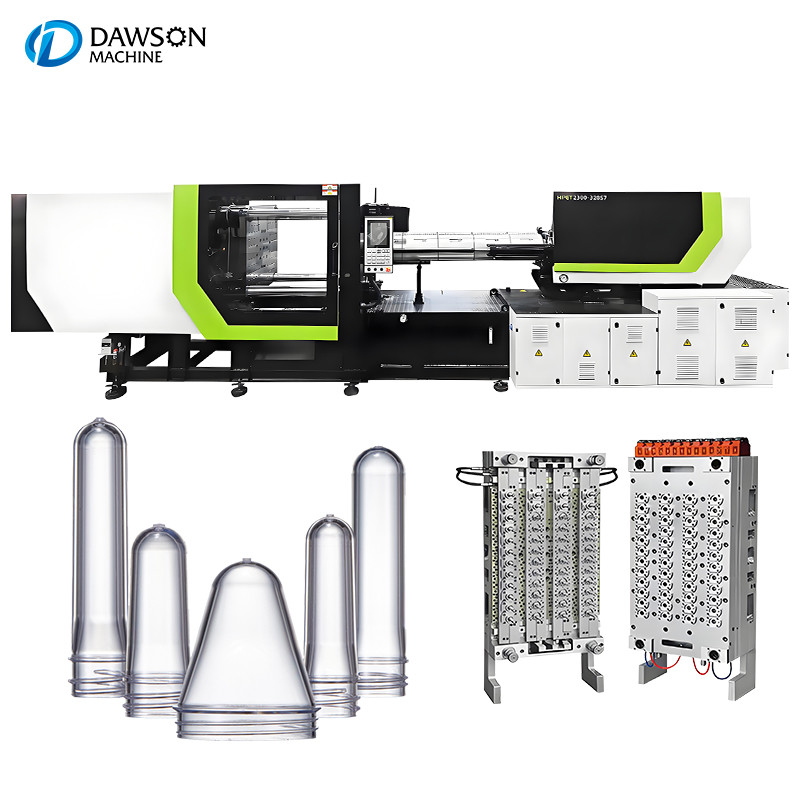

The machine incorporates state-of-the-art technology to ensure exceptional precision and consistency in every PET preform produced. This high level of consistency improves product quality, minimizes production defects, and ensures that each batch meets stringent industry standards. your profit margins.
| INJECTION UNIT | HPET1500/288S7 | HPET1500/328S7 | HPET2300/S328S7 | HPET3100/S328S7 | |
| Screw diameter | mm | 75 | 75 | 83 | 95 |
| Injection pressure | Mpa | 118 | 118 | 138 | 105 |
| Screw L/D ratio | L/D | 24 | 24 | 24 | 24 |
| Injection rate | g/s | 543 | 680 | 580 | 760 |
| Shot volume | cm³ | 1262.5 | 1262.5 | 1974.2 | 2585.8 |
| Shot weight | g | 1515 | 1515 | 2369 | 3103 |
| Clamp tonnage | KN | 2880 | 3280 | 3280 | 3280 |
| Opening stroke | mm | 520 | 590 | 590 | 590 |
| Space between tie-bars | mm | 630*600 | 680*680 | 680*680 | 680*680 |
| Platen size | mm | 900*870 | 990*990 | 990*990 | 990*990 |
| Mould height | mm | 300-600 | 300-660 | 300-660 | 300-660 |
| Ejector stroke | mm | 180 | 200 | 200 | 200 |
| Ejector tonnage | KN | 100 | 177 | 177 | 177 |
| Ejector pins | - | 8+1 | 12+1 | 12+1 | 12+1 |
