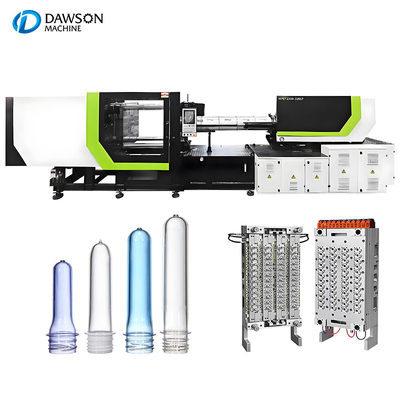

By using this high-speed PET preform injection molding machine, you can achieve higher production rates without incurring additional fixed costs. This efficiency boost means you can manufacture more preforms under the same operational budget, leading to a substantial increase in your profit margins.
| INJECTION UNIT | HPET1500/288S7 | HPET1500/328S7 | HPET2300/S328S7 | HPET3100/S328S7 | |
| Screw diameter | mm | 75 | 75 | 83 | 95 |
| Injection pressure | Mpa | 118 | 118 | 138 | 105 |
| Screw L/D ratio | L/D | 24 | 24 | 24 | 24 |
| Injection rate | g/s | 543 | 680 | 580 | 760 |
| Shot volume | cm³ | 1262.5 | 1262.5 | 1974.2 | 2585.8 |
| Shot weight | g | 1515 | 1515 | 2369 | 3103 |
| Clamp tonnage | KN | 2880 | 3280 | 3280 | 3280 |
| Opening stroke | mm | 520 | 590 | 590 | 590 |
| Space between tie-bars | mm | 630*600 | 680*680 | 680*680 | 680*680 |
| Platen size | mm | 900*870 | 990*990 | 990*990 | 990*990 |
| Mould height | mm | 300-600 | 300-660 | 300-660 | 300-660 |
| Ejector stroke | mm | 180 | 200 | 200 | 200 |
| Ejector tonnage | KN | 100 | 177 | 177 | 177 |
| Ejector pins | - | 8+1 | 12+1 | 12+1 | 12+1 |
