PET Injection Blow Molding Machine
Created with Pixso. Plastic Cans Injection Stretch Blow Molding Machine / PET Bottle Making Machinery

Plastic Cans Injection Stretch Blow Molding Machine / PET Bottle Making Machinery

Brand Name: Dawson
MOQ: 1 set
Price: USD75000-80000
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
China
Certification:
CE
Screw Diameter:
40mm
Screw L/D Ratio:
20.5:1
Screw Speed:
0-190RPM
Theoretical Injection Capacity:
238cm3
Injection Pressure:
174Mpa
Max. Hydraulic Pressure:
140Kg/cm
The Actual Injection Quantity(PS)::
225g(ps)/8Oz
Max. Pump Pressure::
16Mpa
Motor Oil:
18.5Kw
Electric Power:
12.2kw
Highlight:

Plastic Cans Injection stretch blow molding

,

PET Bottle injection stretch blow molding

,

PET Bottle Making isbm machine

Product Description

Plastic Cans Injection Stretch Blow Molding Machine / PET Bottle Making Machinery 0

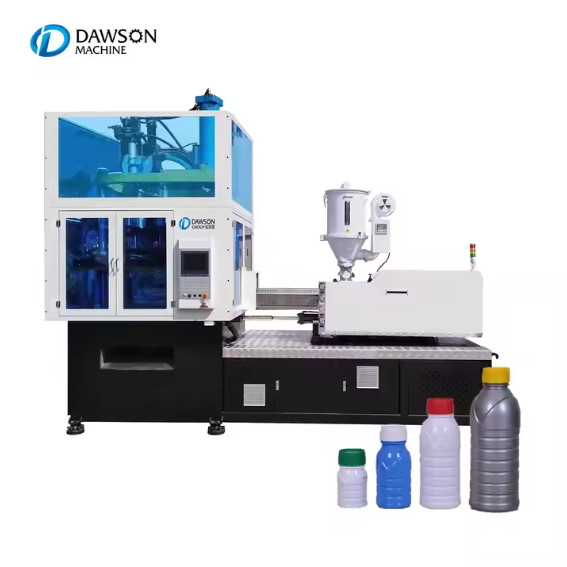

    In this machine, there are three operational stations: injection perform, blowing/stretching, and product release. The process starts with raw material being transferred from the hopper into the injection screw, creating preforms. The preforms are then moved to the blow/stretch station, where they are shaped using their residual heat without additional reheating. Following this, the completed products are rotated to the release station, where they are automatically released. This machine features a fully automated rotation cycle, which avoids the need for preform purchases, minimizes waste, and offers high levels of automation with smoothly finished products.



Plastic Cans Injection Stretch Blow Molding Machine / PET Bottle Making Machinery 1Plastic Cans Injection Stretch Blow Molding Machine / PET Bottle Making Machinery 2Plastic Cans Injection Stretch Blow Molding Machine / PET Bottle Making Machinery 3Plastic Cans Injection Stretch Blow Molding Machine / PET Bottle Making Machinery 4Plastic Cans Injection Stretch Blow Molding Machine / PET Bottle Making Machinery 5Plastic Cans Injection Stretch Blow Molding Machine / PET Bottle Making Machinery 6Plastic Cans Injection Stretch Blow Molding Machine / PET Bottle Making Machinery 7Plastic Cans Injection Stretch Blow Molding Machine / PET Bottle Making Machinery 8
