PET Injection Blow Molding Machine
Created with Pixso. Chemical Pesticides Plastic Packaging Large Bottles Injection Stretch Blow Molding Machine

Chemical Pesticides Plastic Packaging Large Bottles Injection Stretch Blow Molding Machine

Brand Name: Dawson
MOQ: 1 set
Price: USD75000-80000
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
China
Certification:
CE
Screw Diameter:
40mm
Screw L/D Ratio:
20.5:1
Screw Speed:
0-190RPM
Theoretical Injection Capacity:
238cm3
Injection Pressure:
174Mpa
Max. Hydraulic Pressure:
140Kg/cm
The Actual Injection Quantity(PS)::
225g(ps)/8Oz
Max. Pump Pressure::
16Mpa
Motor Oil:
18.5Kw
Electric Power:
12.2kw
Highlight:

Chemical injection stretch blow molding machine

,

Pesticides injection stretch blow molding machine

,

Bottles injection stretch blow molding machine

Product Description

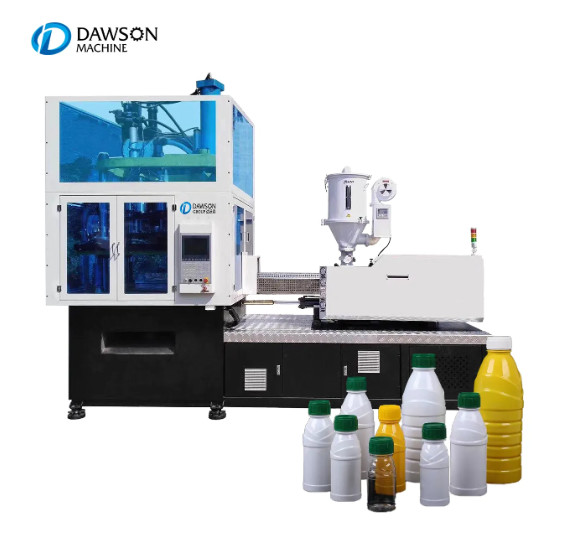

Chemical Pesticides Plastic Packaging Large Bottles Injection Stretch Blow Molding Machine 0



    This machine consists of three primary stations: injection perform, blowing/stretching, and product release. Raw materials are introduced from the hopper into the injection screw, which molds them into preforms. These preforms are then rotated to the blow/stretch station, where they are expanded using their inherent heat, avoiding the need for reheating. Once the products are formed, they are rotated to the release station, where they are automatically ejected. This fully automated system operates with a rotating cycle, minimizing waste and eliminating the need for external preform purchases, while producing smooth and attractive final products.



Chemical Pesticides Plastic Packaging Large Bottles Injection Stretch Blow Molding Machine 1Chemical Pesticides Plastic Packaging Large Bottles Injection Stretch Blow Molding Machine 2Chemical Pesticides Plastic Packaging Large Bottles Injection Stretch Blow Molding Machine 3Chemical Pesticides Plastic Packaging Large Bottles Injection Stretch Blow Molding Machine 4Chemical Pesticides Plastic Packaging Large Bottles Injection Stretch Blow Molding Machine 5Chemical Pesticides Plastic Packaging Large Bottles Injection Stretch Blow Molding Machine 6Chemical Pesticides Plastic Packaging Large Bottles Injection Stretch Blow Molding Machine 7Chemical Pesticides Plastic Packaging Large Bottles Injection Stretch Blow Molding Machine 8
