PET Injection Blow Molding Machine
Created with Pixso. PET Glass Cup Injection Stretch Blow Molding Machine Popular Product PET Bottle For Pesticides

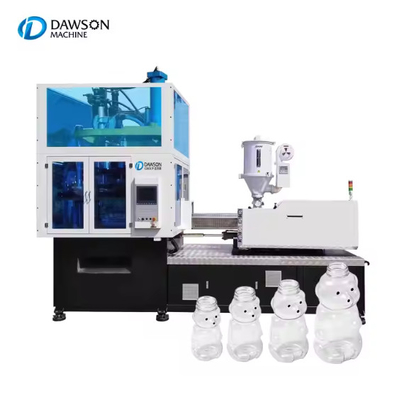

PET Glass Cup Injection Stretch Blow Molding Machine Popular Product PET Bottle For Pesticides

Brand Name: Dawson
MOQ: 1 set
Price: USD75000-80000
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
China
Certification:
CE
Screw Diameter:
40mm
Screw L/D Ratio:
20.5:1
Screw Speed:
0-190RPM
Theoretical Injection Capacity:
238cm3
Injection Pressure:
174Mpa
Max. Hydraulic Pressure:
140Kg/cm
The Actual Injection Quantity(PS)::
225g(ps)/8Oz
Max. Pump Pressure::
16Mpa
Motor Oil:
18.5Kw
Electric Power:
12.2kw
Highlight:

PET injection stretch blow molding machine

,

Glass injection stretch blow molding machine

,

Cup injection stretch blow molding machine

Product Description

PET Glass Cup Injection Stretch Blow Molding Machine Popular Product PET Bottle For Pesticides 0

    The machine is designed with three key stations: injection perform, blowing/stretching, and product release. Raw material is fed from the hopper into the injection screw, where it is formed into preforms. The preforms are then rotated to the blow/stretch station, where they are shaped using their own heat without requiring additional reheating. After shaping, the products move to the release station and are automatically dropped down. This system operates in a fully automated cycle with rotating mechanisms, eliminating the need for pre-purchased bottle preforms, reducing waste, and ensuring high automation. The resulting products are smooth and aesthetically pleasing.



PET Glass Cup Injection Stretch Blow Molding Machine Popular Product PET Bottle For Pesticides 1PET Glass Cup Injection Stretch Blow Molding Machine Popular Product PET Bottle For Pesticides 2PET Glass Cup Injection Stretch Blow Molding Machine Popular Product PET Bottle For Pesticides 3PET Glass Cup Injection Stretch Blow Molding Machine Popular Product PET Bottle For Pesticides 4PET Glass Cup Injection Stretch Blow Molding Machine Popular Product PET Bottle For Pesticides 5PET Glass Cup Injection Stretch Blow Molding Machine Popular Product PET Bottle For Pesticides 6PET Glass Cup Injection Stretch Blow Molding Machine Popular Product PET Bottle For Pesticides 7PET Glass Cup Injection Stretch Blow Molding Machine Popular Product PET Bottle For Pesticides 8
