PET Injection Blow Molding Machine
Created with Pixso. Hot Sale Top Quality PET Popular Product Plastic Water Little Bear Honey Bottle Injection Blow Molding Machine

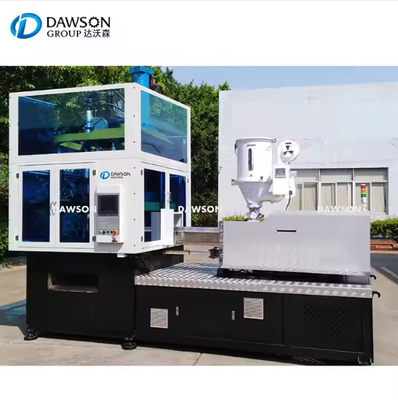

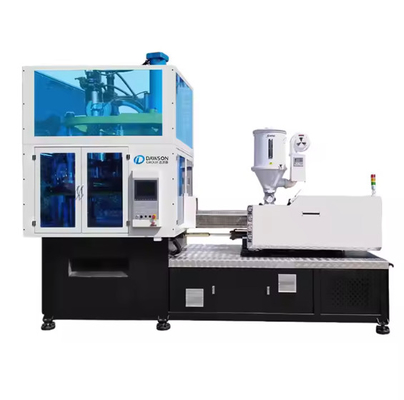

Hot Sale Top Quality PET Popular Product Plastic Water Little Bear Honey Bottle Injection Blow Molding Machine

Brand Name: Dawson
MOQ: 1 set
Price: USD75000-80000
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
China
Certification:
CE
Screw Diameter:
40mm
Screw L/D Ratio:
20.5:1
Screw Speed:
0-190RPM
Theoretical Injection Capacity:
238cm3
Injection Pressure:
174Mpa
Max. Hydraulic Pressure:
140Kg/cm
The Actual Injection Quantity(PS)::
225g(ps)/8Oz
Max. Pump Pressure::
16Mpa
Motor Oil:
18.5Kw
Electric Power:
12.2kw
Highlight:

40mm plastic mould making machine

,

Popular pet preform injection molding machine

Product Description

Hot Sale Top Quality PET Popular Product Plastic Water Little Bear Honey Bottle Injection Blow Molding Machine 0Hot Sale Top Quality PET Popular Product Plastic Water Little Bear Honey Bottle Injection Blow Molding Machine 1



    The machine operates with three essential stations: injection perform, blowing/stretching, and product release. Initially, raw material is transported from the hopper to the injection screw, where it is molded into preforms. These preforms are then rotated to the blow/stretch station, where they are expanded using their own heat, thus eliminating the need for extra reheating. The final products are subsequently rotated to the release station and automatically dropped. This system boasts a fully automated rotational cycle, removing the necessity for pre-bought preforms, reducing waste, and achieving a high degree of automation with smooth, attractive end products.



Hot Sale Top Quality PET Popular Product Plastic Water Little Bear Honey Bottle Injection Blow Molding Machine 2Hot Sale Top Quality PET Popular Product Plastic Water Little Bear Honey Bottle Injection Blow Molding Machine 3Hot Sale Top Quality PET Popular Product Plastic Water Little Bear Honey Bottle Injection Blow Molding Machine 4Hot Sale Top Quality PET Popular Product Plastic Water Little Bear Honey Bottle Injection Blow Molding Machine 5Hot Sale Top Quality PET Popular Product Plastic Water Little Bear Honey Bottle Injection Blow Molding Machine 6Hot Sale Top Quality PET Popular Product Plastic Water Little Bear Honey Bottle Injection Blow Molding Machine 7Hot Sale Top Quality PET Popular Product Plastic Water Little Bear Honey Bottle Injection Blow Molding Machine 8Hot Sale Top Quality PET Popular Product Plastic Water Little Bear Honey Bottle Injection Blow Molding Machine 9
