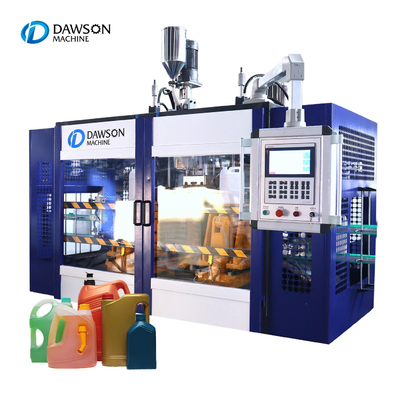

Servo Hydraulic Automatic Double Station Small Extrusion Blow Molding Machine For 5l Hdpe Lubricant Oil Jerry Can Making

1 set

MOQ

US $39800-42800/ Set

Price

Servo Hydraulic Automatic Double Station Small Extrusion Blow Molding Machine For 5l Hdpe Lubricant Oil Jerry Can Making

Features Gallery Product Description Request A Quote

Features

Specifications

Max.Product Volume: 5L

Plasticizing Inverter: INNOVANCE

Clamping Force: 110KN

Parison Controling System: Wisetech/Xunjie/MOOG

Die Head Number: 1/2/3/4

Screw Motor Power: 22kw

Platen Size: 350*490mm(W*H)

Mould Moving Stroke: 460mm

Clamping Stroke: 250-550mm

Servo Hydraulic Motor: 11KW

High Light:

servo extrusion blow molding machine

,

double station extrusion moulding machine

,

5l extrusion blow machine

Basic Infomation

Place of Origin: CHINA

Brand Name: DAWSON

Certification: CE

Model Number: DSB70II-1

Payment & Shipping Terms

Packaging Details: Standard Export Packing

Delivery Time: 55-65working days

Payment Terms: L/C, T/T

Supply Ability: 5 sets / month

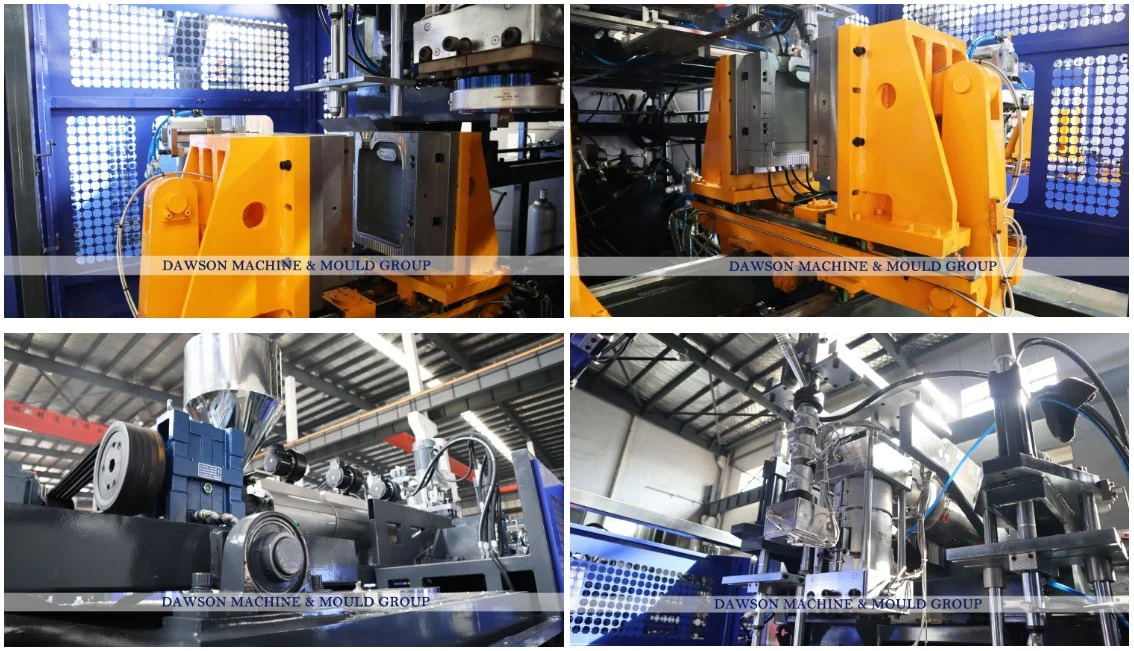

Gallery

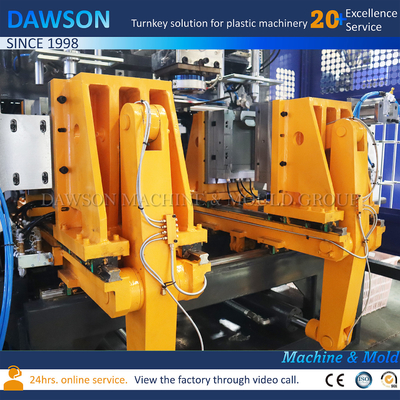

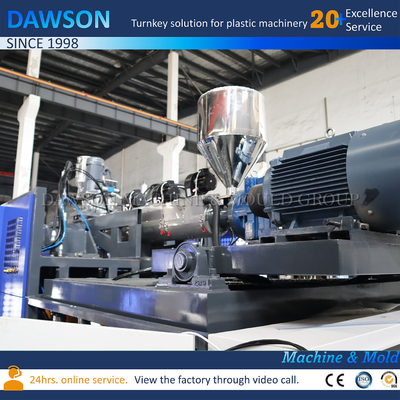

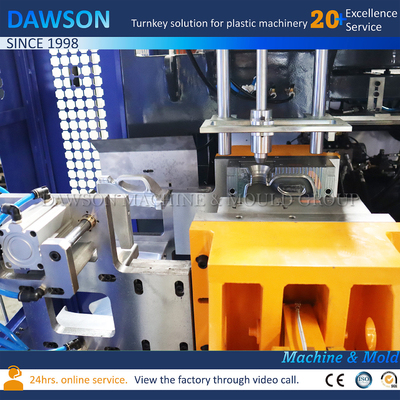

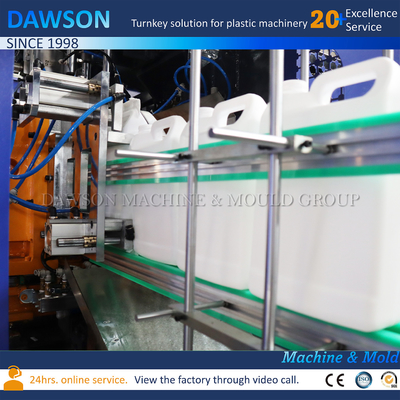

Servo Hydraulic Automatic Double Station Small Extrusion Blow Molding Machine For 5l Hdpe Lubricant Oil Jerry Can Making

Product Description

Servo Hydraulic Automatic Double Station Extrusion Blow Molding Machine for 5L HDPE Lubricant Oil Jerry Can Making

DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***

Our customers are all around the world.

Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru, UAE, Saudi Arabia, Romania, Italy, Vietnam, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, Malta, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, ....

Product Description

			Machine Model

			Max. Bottle size

			Production forecast

			DSB SERIES

			Double Station single Head

			5L

			200-250 BPH

			Double Station two Head

			2L

			450-550 BPH

Technical Parameters

Name	Description
Screw	70mm 24:1
Screw motor	22kw
Plasticizing Inverter	INNOVANCE
Screw heating zone	3 zones with cooling fan
Screw heating power	13.8kw
Die head number	1/2/3/4
Platen size	350490mm(WH)
Minimum mould thickness	260mm
Mould opening stroke	250-550mm
Mould moving stroke	460mm
Clamping force	110KN
Servo hydraulic motor	11kw
Oil tank	200L
Hydraulic working pressure	≤14MPa
Pneumatic working pressure	0.6-0.8MPa
Air consumption	1.4m3/min

DAWSON MACHINERY & MOULD GROUP

Extrusion Blow Molding Machine

Jerry can blow moulding machine suitable for making plastic bottle, jars, containers, jerrycans

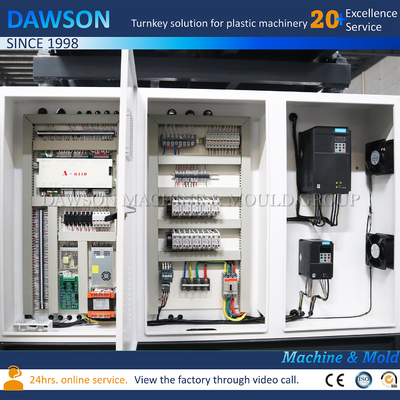

The whole blow molding machine is equipped with bilingual operation panel and automatic configuration from world famous brands to realize the advantages of simple operation and high automation.

We committed to providing customers with plastic machinery & equipment production lines beyond expectations.
Customer satisfaction is our eternal pursuit...
1 Gallon 3.79L HDPE Bleach Bottle 5L Jerry Can Making Extrusion Blow Molding Machine

1 Gallon 3.79L HDPE Bleach Bottle 5L Jerry Can Making Extrusion Blow Molding Machine

1 Gallon 3.79L HDPE Bleach Bottle 5L Jerry Can Making Extrusion Blow Molding Machine


			FAQ

			Q: Can we visit your factory?

			Sure. We're in Zhangjiagang city which is very near Shanghai. We will arrange to pick you up at Shanghai Pudong International Airport.

			Q: How can we get the exact price of plastic machine?

			Your helping for sending us the products size, picture, weight and required production capacity, we can recommend suitable machine and provide quotation.

			Q: Do you provide any spare parts with machine?

			Yes, we will put all necessary spare parts together with the machine when delivery.

			Q: How about your after-sale service ?

			We offer manual instruction and engineer training after delivery, after you prepared the air source, water source, electrical source and ready to do installation and commissioning, we will provide 24 hours online support, video technical support or field installation assist.

			Q: What is the delivery time?

			For standard machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

			Q: What is the warranty period for your machine ?

			12 months warranty for components and technical support .

			Q: Do you provide custom machines?

			Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.

			Q: How can we install the machine when it arrives?

			We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.

			Q: What's DAWSON's advantage?

			DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

			DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
