Bottle Cap Making Injection Molding Machine PCO 1881 1880 28mm Small Plastic Water

1 set
MOQ
USD 20000~21800/set
Price
Bottle Cap Making Injection Molding Machine PCO 1881 1880 28mm Small Plastic Water
Features Gallery Product Description Request A Quote
Features
Specifications
Clamping Force: 1700KN
Space Betweeen Tie Bar: 460*460mm
Toggle Stroke: 435mm
Motor Power: 21kw
Screw Diameter: 45mm
Shot Weight: 325g
High Light:

21kw Cap Injection Molding Machine

,

Bottle Cap Plastic Injection Molding Machine

,

28mm Cap Injection Molding Machine
Basic Infomation
Place of Origin: China
Brand Name: Dawson
Certification: CE
Model Number: K-TEC170
Payment & Shipping Terms
Packaging Details: container
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 100 pcs/month
Product Description

Plastic Cap Making Injection Molding Machine for Mineral Water Juice Cola Bottle



Zhangjiagang Dawson Machine is a company integrated plastic machine & molds design, production and sales. We’ve started plastic machinery business since 2003.



We have multiple series injection molding machine, specially designed for PET preform, caps, and other equipments production.

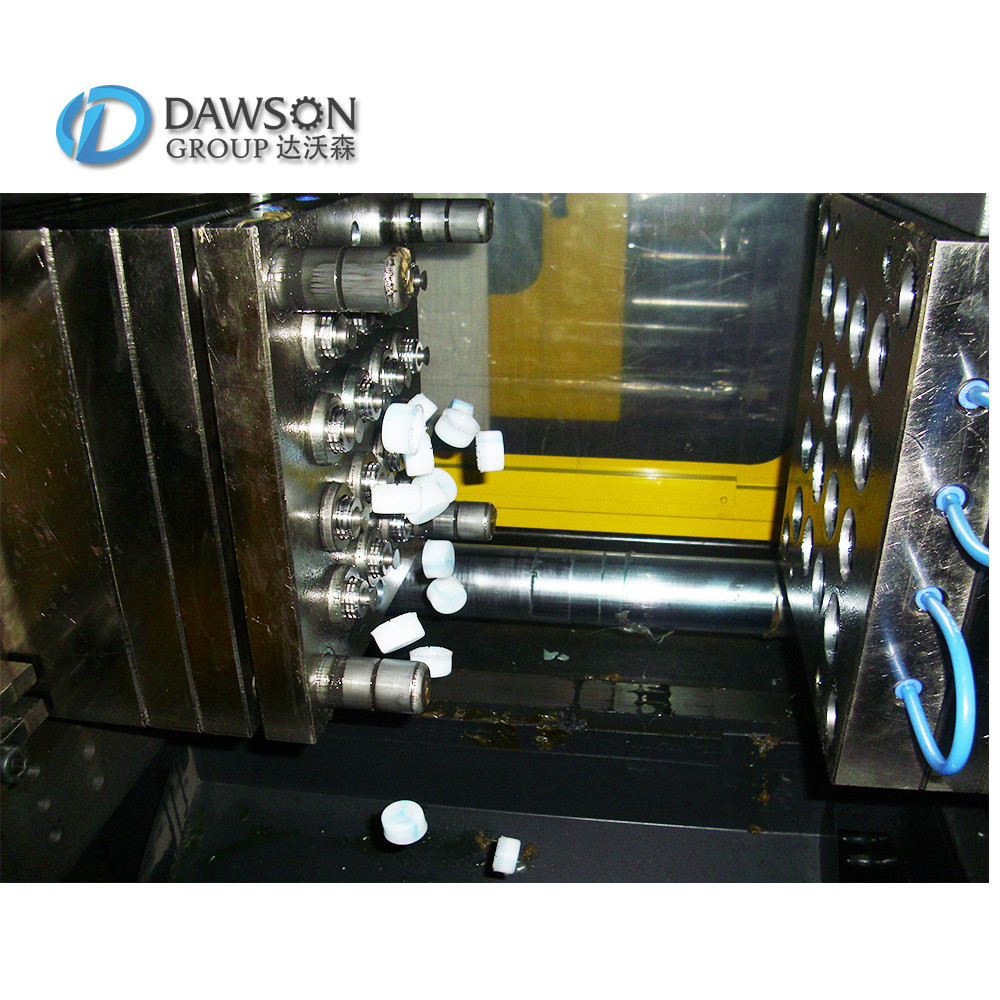

Bottle Cap Making Injection Molding Machine PCO 1881 1880 28mm Small Plastic Water 0

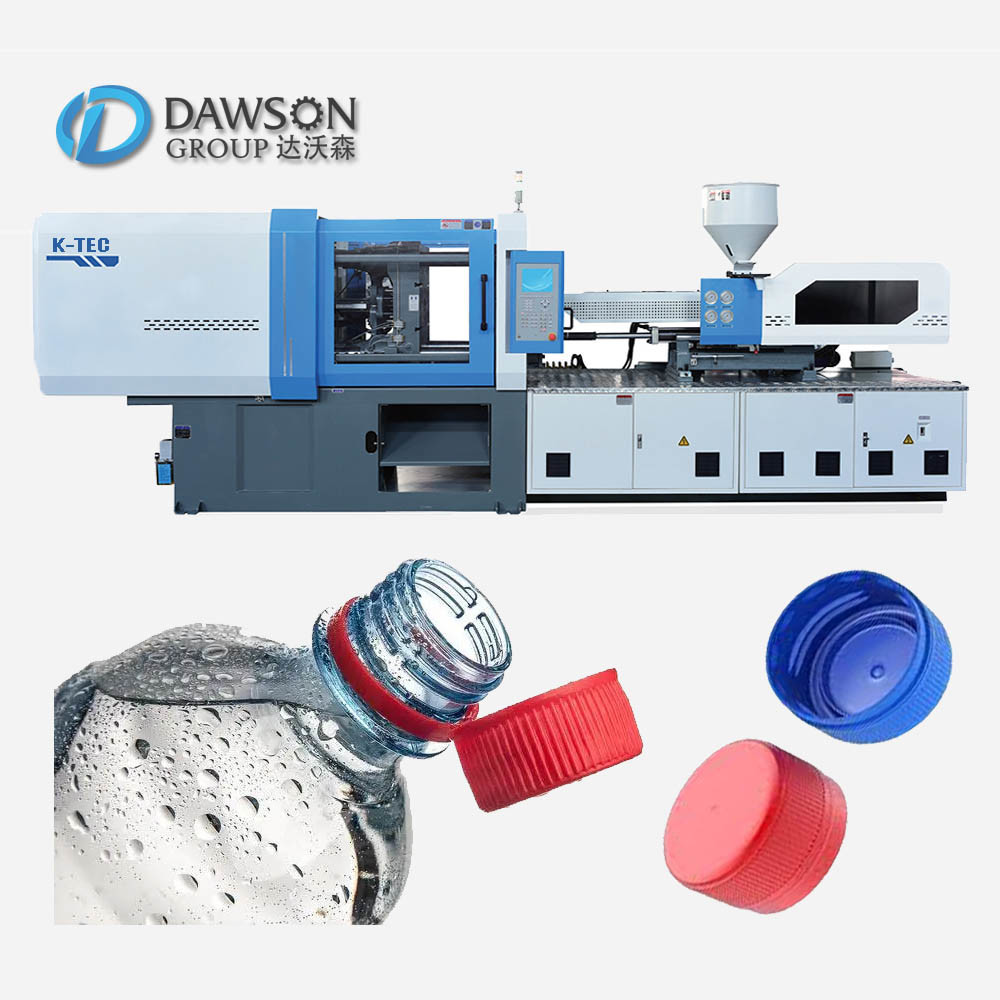

Bottle Cap Making Injection Molding Machine PCO 1881 1880 28mm Small Plastic Water 1

  Suitable Products

Bottle Cap Making Injection Molding Machine PCO 1881 1880 28mm Small Plastic Water 2

  Technical Parameters

INJECTION UNIT K-TEC100 K-TEC140 K-TEC170 K-TEC230 K-TEC270
Screw diameter mm 35 38 42 38 42 45 42 45 50 45 50 55 50 55 60
Screw L/D ratio L/D 22.8 21 19 22.1 20 18.7 23.5 22 19.8 23.4 21 19.1 25.2 22.9 21
Shot volume(theoretical) cm³ 163 192 235 226 277 318 311 357 441 397 490 593 530 641 763
Shot weight g 148 175 213 206 252 289 283 325 401 362 446 540 482 583 694
Injection rate g/s 90 104 128 94 115 132 138 160 196 124 154 186 187 227 270
Injection pressure Mpa 219 186 158 209 171 149 203 177 143 207 168 138 205 169 142
Screw speed r.p.m 205 220 200 175 185
CLAMPING
Clamp tonnage KN 1000 1400 1700 2300 2700
Toggle stroke mm 350 380 435 475 540
Space between tie-bars mm 370 * 370 420 * 420 460 * 460 520 * 520 570 * 570
Mould Height mm 150 - 380 160 - 450 180 - 520 200 - 530 200 - 580
Ejector stroke mm 100 120 135 140 150
Ejector tonnage KN 30 50 50 70 70
OTHERS
Max. pump pressure MPa 16 16 16 16 16
Motor power KW 11 14 21 28 36
Heat power KW 7.55 9.3 12.3 14.8 16.8
Machine dimension m 4.2*1.2*1.79 4.48*1.33*1.90 5.18*1.4*2.12 5.58*1.5*2.14 6*1.6*2.25
Oil tank capacity L 190 270 300 300 380
Machine weight t 3.5 4.3 6 7 8.5

Bottle Cap Making Injection Molding Machine PCO 1881 1880 28mm Small Plastic Water 3

Bottle Cap Making Injection Molding Machine PCO 1881 1880 28mm Small Plastic Water 4

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

We have our own service team in

Saudi Arabia, Colombia, Panama, South Africa ...

DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
injection molding machine, blow molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
Bottle Cap Making Injection Molding Machine PCO 1881 1880 28mm Small Plastic Water 5
Bottle Cap Making Injection Molding Machine PCO 1881 1880 28mm Small Plastic Water 6
Bottle Cap Making Injection Molding Machine PCO 1881 1880 28mm Small Plastic Water 7

Bottle Cap Making Injection Molding Machine PCO 1881 1880 28mm Small Plastic Water 8
