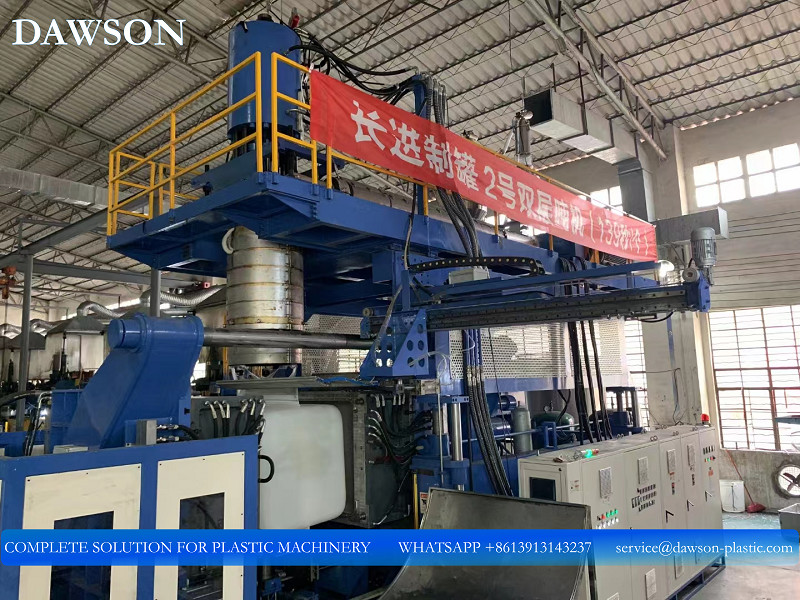

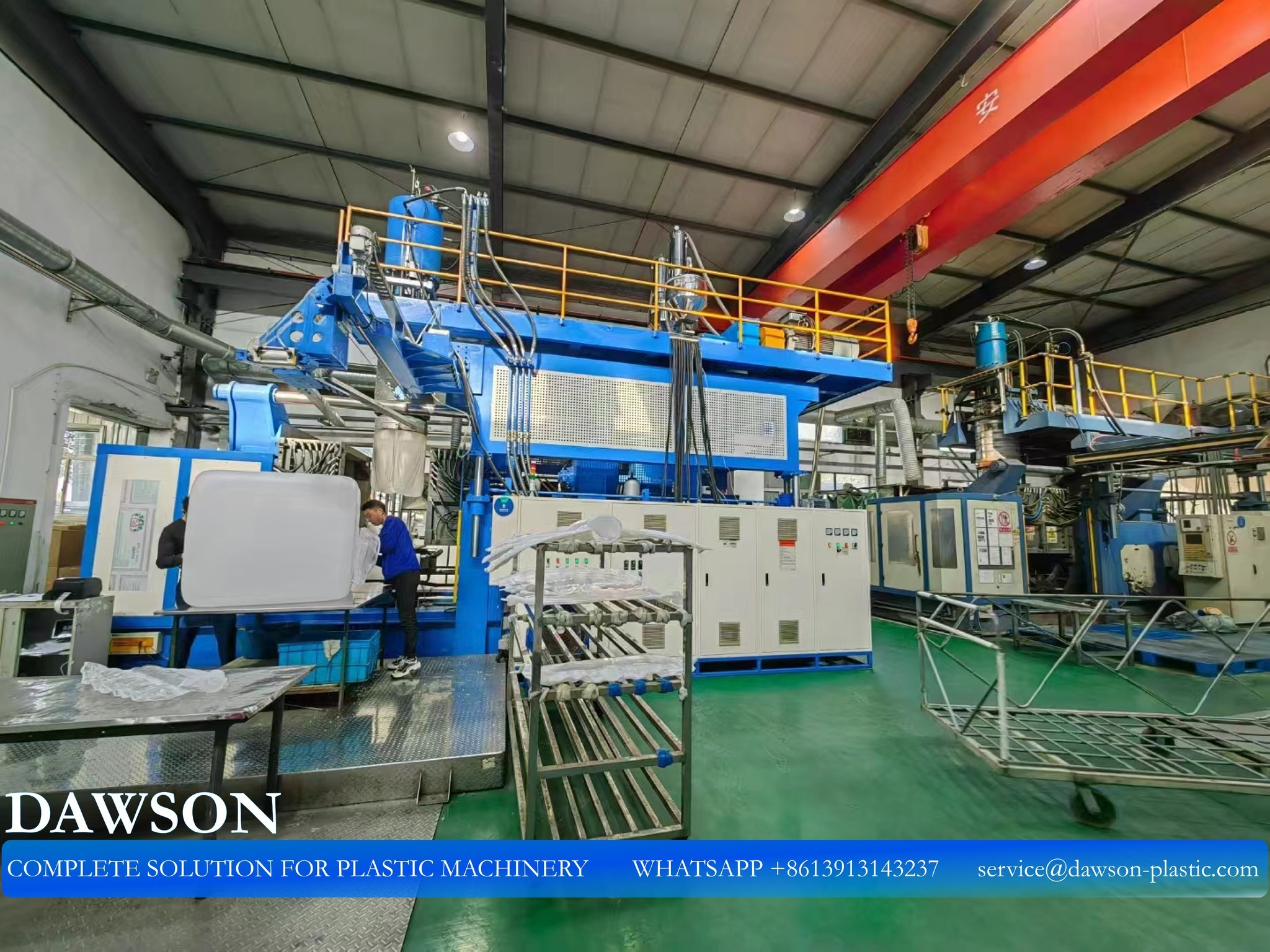

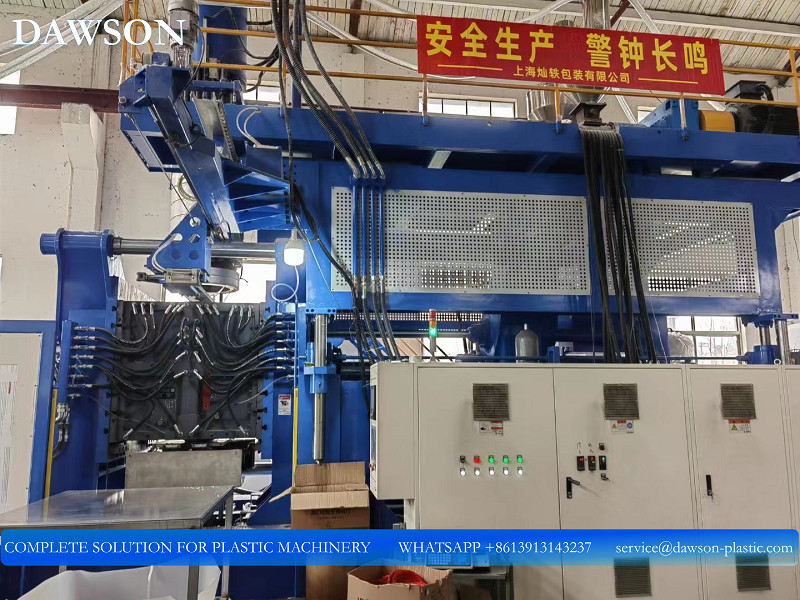

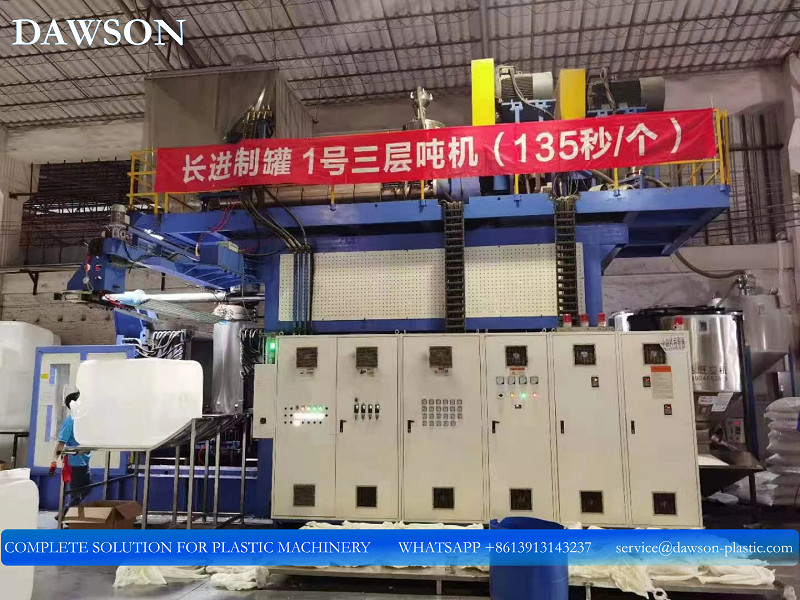

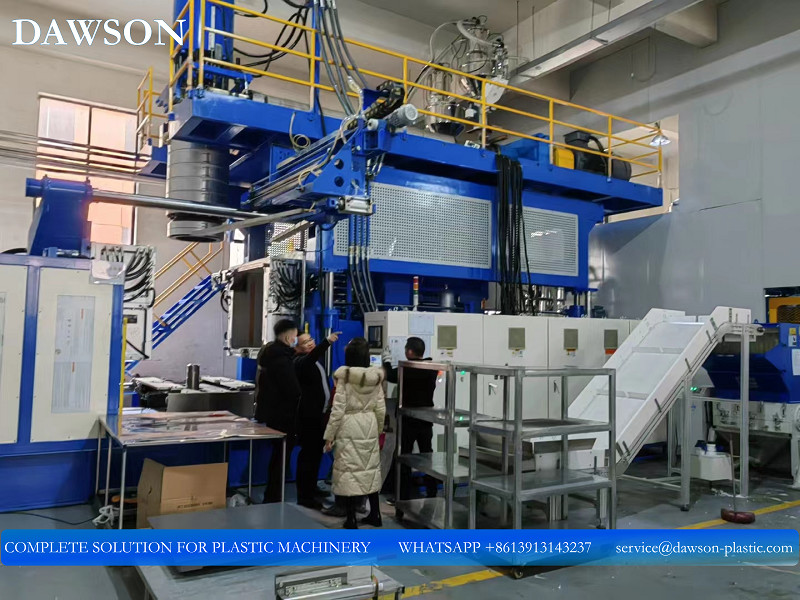

IBCs (Intermediate Bulk Containers, Totes & Cubes) are an effective and economical solution for safe transportation and storage of liquids, fluids, and chemicals. They are strong, stackable, and easy to move with either a forklift or pallet jack. Our 1000L plastic IBC tank extrusion blow molding machine is optimum for producing 500-1000L IBC tanks. Uniquely designed screw for UHMWPE material, decrease the formation time, and the production capacity can reach more than 500 pieces a day. For some customers, a cycle time up to 135 seconds can be achieved.
Changing colors is a common procedure for IBC tanks, but our special designed die head cuts color changing time and reduces energy costs; 1 tank only requires 8 kW. We have single layer, double layers, and three layers configurations for your selecting. The advantage of using 3 layers is a lower use of additives due to a subset of the original amount to the outer layer. Furthermore, the blow molding machine is equipped with a bilingual operating panel and advanced automation features.
Our extensive experience (sporting more than 50sets in customer factories) allows us to offer a turnkey approach for IBC projects, which include internal tank making machines, auxiliary equipments, outer steel cage manufacturing equipment, as well as spare parts such as steel plates, pipes, ventilation caps, and ball valves.
Our IBC tank making machine offers high output, with the capability of producing over 500 pieces in 24 hours. It is energy efficient, as it can run on a single IBC tank with only 8 kWh of electricity used. We also provide excellent die set design, ensuring that the IBC tanks remain lightweight without sacrificing quality. With years of experience in this field, our machines can proudly be said to already be running in over 50 customer facilities.
| Parameter | Value |
|---|---|
| Machine Dimension | 11m*7m*7m |
| Hydraulic Drive Motor (Main) | 42KW |
| Clamping Force | 2200KN |
| Screw Heating Power | 80KW |
| Machine Weight | 65T |
| Oil Tank Capacity | 1000L |
| Die Head Volume | 50L |
| Die Head Heating Power | 75KW |

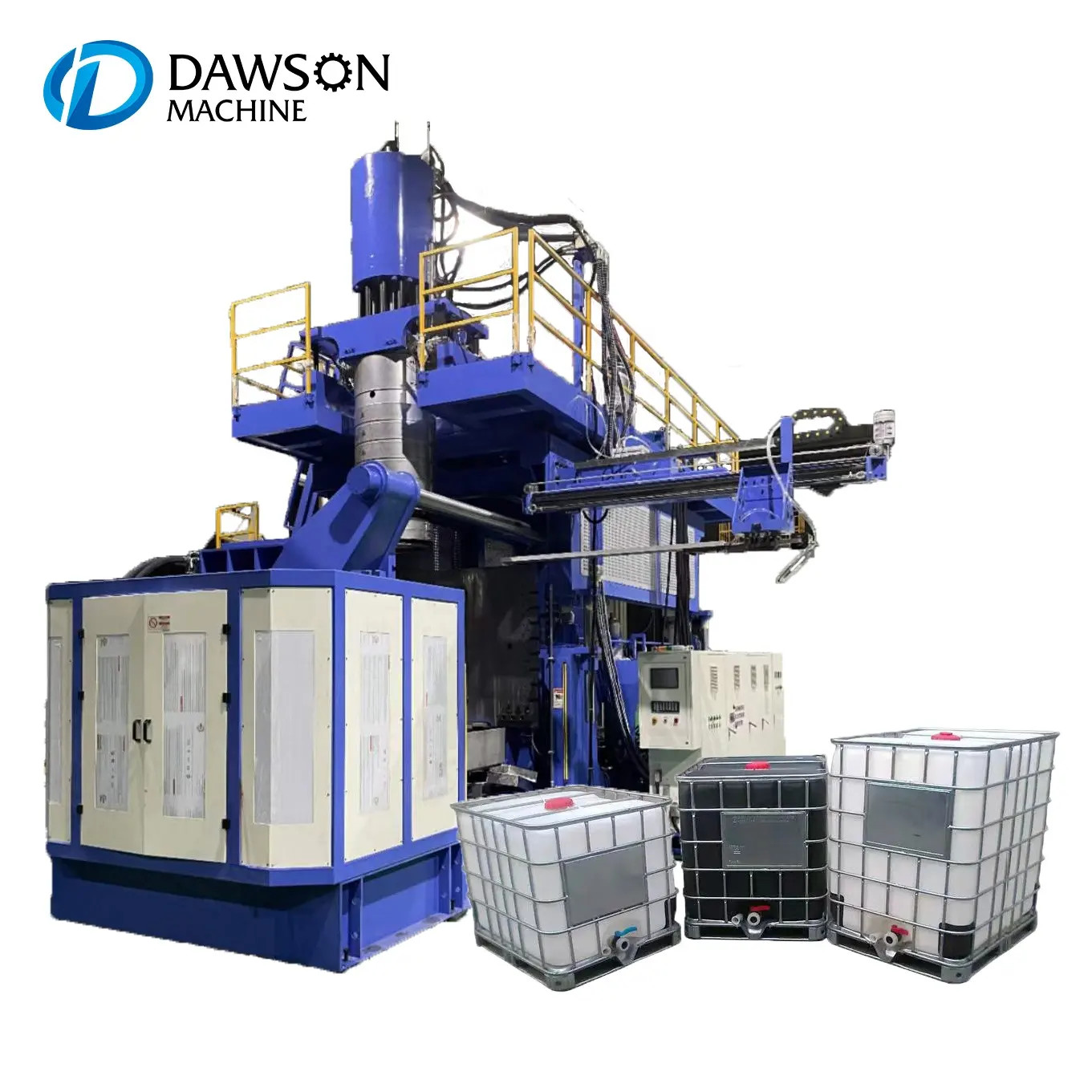

| Product Name | Automatic 1000L Plastic IBC Tank Making Extrusion Blow Molding Machine |
| Screw L/D Ratio | 30:1 |
1 layer 1000L IBC tanks
2 layer 1000L IBC tanks
3 layers 1000L IBC tanks
IBCs for bulk chemicals, food syrup, petrochemical products and paints and industrial coatings, etc.
We offer a wide range of customized Extrusion Blow Molding Machine with brand name “DAWSON”, model number DS-1000L. This machine is made in China and available with minimum order quantity of 1 set. It is Export standard packaging and the delivery time for the machine is 90-100 working days after received deposit and confirmed drawing. The payment terms are 40% advance payment by T/T before production, balanced before shipment. Our supply ability is 20 sets/year. This machine is 65T weight and the Screw diameter is 120mm*2. The Maximum product volume is 1200L and it’s a Product Type of Extrusion Blow Molding Machine. The Hydraulic Drive Motor (Parison Control) is 7.5KW.
The Extrusion Blow Molding Machine is securely packaged before shipping to minimize the risk of damage during transit. The package includes the use of several layers of protective material, such as bubble wrap and cardboard. Each machine is also securely strapped to the pallet to ensure that it is secure during shipping.
Once the package is ready to be shipped, it is sent via express shipping, which provides tracking information and a fast delivery time. The cost of shipping is included in the cost of the machine and is calculated based on the weight and size of the package.
