Zhangjiagang Dawson Machine CO.,LTD is a plastic machinery manufacturing company, able to provide different pricing solutions tailored to the different needs of customers.

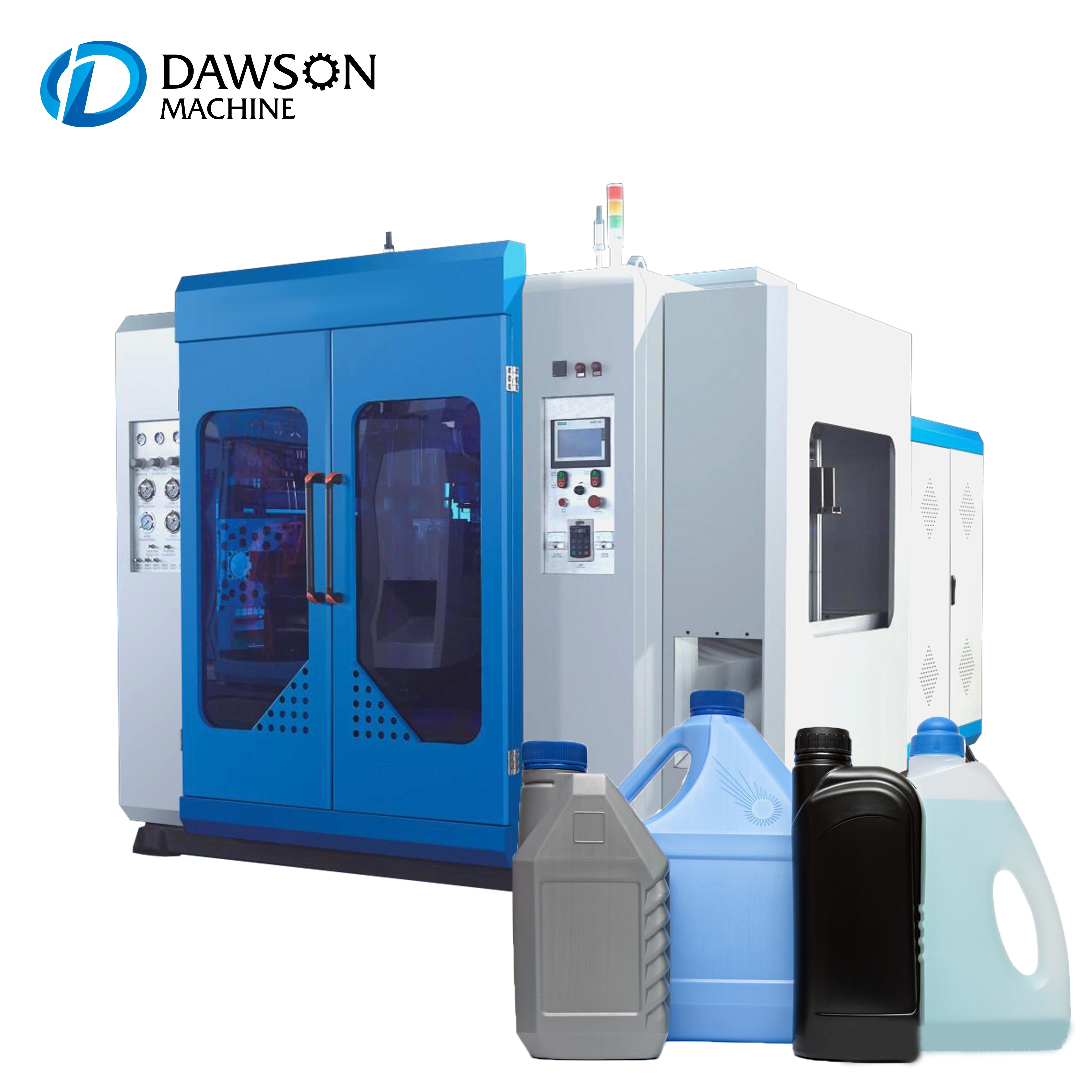

This machine mainly produces plastic bottles up to 10L, double station and single station to make 5L bottles is our popular machine model, also can make small bottles, milk bottles, drums, barrels and so on.
Single station output: 5L 140~160PCS/H
Double station output: 5L 210~230PCS/H
Our machine use double tie bar clamping unit and high precision linear rails and hear gear box and inverter.
Also can provide the parison controller from different brand.
The bottles produced by our machines are mainly used in the chemical industry, food industry, pharmaceutical products, automotive industry, petroleum industry, daily necessities, etc
| Machine Model | Max. Bottle size | Production forecast | |
| ABLB65 | Double Station Double Head | 1L | 450~480 BPH |
| Double Station Single Head | 5L | 280~320 BPH | |
| Name | Units | ABLB65II | ABLB75II |
| Max.product volume | L | 3.5 | 8 |
| Screw diameter | MM | 65 | 75 |
| Screw drive power | KW | 18.5 | 22 |
| Output of HDPE | KG/H | 75 | 100 |
| Oil pump drive power | KW | 7.5 | 7.5 |
| Clamping force | KN | 65 | 80 |
| Max.size of mold | MM | 320×350 | 400×430 |
| Template size | MM | 290×320 | 380×420 |
| Mold stroke | MM | 150-500 | 170-520 |
| Max.die diameter | MM | 170 | 170 |
| Size of machine | L×W×H | 3.9×2.2×2.6 | 4.2×2.2×2.7 |
| Weight of machine | TON | 6.5 | 7.5 |
