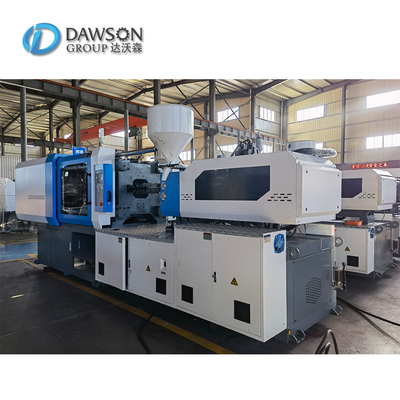

270 Ton Horizontal Automatic Plastic Injection Machine Clear PET Juice Water Preform

270 Ton Horizontal Automatic Plastic Injection Machine Clear PET Juice Water Preform

Brand Name:	DAWSON
Model Number:	PET270S/1000
MOQ:	1 set
Price:	USD 27,500 ~ 29,000 / set
Delivery Time:	5-8 weeks
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Clamping Force:

2700 KN

Injection Weight:

1006g (PET)

Space Between Tie Bar:

570*570mm

Mould Thickness:

200~550mm

Platen Stroke:

540mm

Warranty:

1 Year

Style:

Horizontal

Screw Diameter:

62mm

Plasticizing Capacity:

295 G/s

Preform Neck:

20~120mm

Output:

3000~3500 Pcs/h

Language:

English, Chinese Or Other Specified

Packaging Details:

Standard Export Packing

Supply Ability:

200 sets / month

Highlight:

Horizontal PET Plastic Injection Machine

270ton Plastic Injection Machine

550mm Plastic PET Injection Machine

Product Description

270 Ton Horizontal Automatic Plastic Injection Machine Clear PET Juice Water Preform 0

270 Ton Horizontal Automatic Plastic Injection Machine Clear PET Juice Water Preform 1

DAWSON MACHINERY & MOULD GROUP

Injection Molding Machine

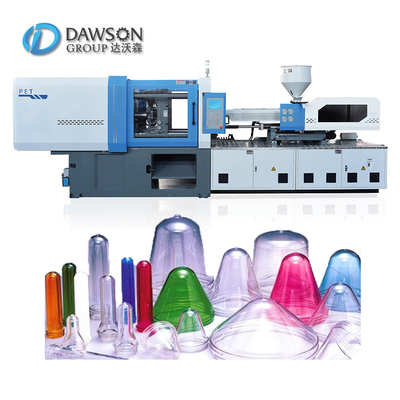

Specialized for making PET preforms, special screw for PET products, all machine adapt latest Taiwan control system,
Japan YUKEN hydraulic valve for highest quality standard and machine performance.

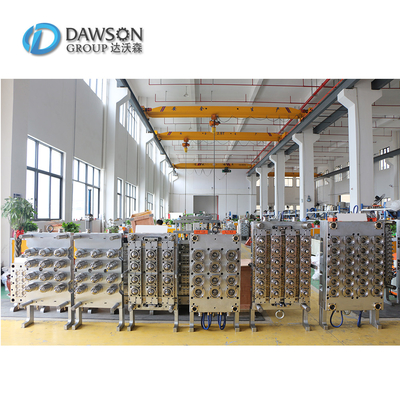

We also able to provide mould designing and manufacturing to help you build up all kinds of plastic items manufacturing.

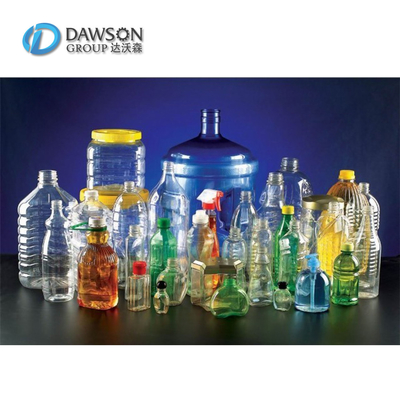

Injection molding machine is suitable for multiple types of products as well, such as caps , pails, buckets, jars, covers, lids, basins...

270 Ton Horizontal Automatic Plastic Injection Machine Clear PET Juice Water Preform 2

270 Ton Horizontal Automatic Plastic Injection Machine Clear PET Juice Water Preform 3

Technical Parameters

Parameters		PET170S/530	PET230S/1000	PET270S/1000	PET270S/1500
Screw diameter	mm	50	62	62	70
Theoretical shot volume	cm3	450	860	860	1300
Shot weight	g	527	1006	1006	1521
Clamping force	KN	1700	2300	2700	2700
Toggle stroke	mm	435	475	540	540
Ejector stroke	mm	135	140	150	150
Space between tie bars	mm	460 * 460	520 * 520	570 * 570	570 * 570
Mould thickness	mm	180 ~ 500	200 ~ 530	200 ~ 550	200 ~ 550
Motor power	kw	28	36	43	56
Machine size	m	5.5 * 1.4 * 2.1	6.14 * 1.5 * 2.14	6.34 * 1.6 * 2.25	7.21 * 1.7 * 2.37
Machine weight	ton	6.5	7.5	8.5	9

Details Images

DAWSON MACHINERY & MOULD GROUP

Our customers from all over the world

Including Asia, Africa, South America, Europe countries, such as Thailand, Indonesia, India, Philippines, Ecuador, Colombia, Guatemala, South Africa, Malawi...

Local service team in

Saudi Arabia, Colombia, Panama, South Africa ... etc

DAWSON MACHINE & MOULD GROUP is devoted to the plastic machinery industry since 2003.

We are located in Zhangjiagang city, which is 2 hours' driving from Shanghai. Very convenient for you to visit us from there. We developed professional engineering, production, aftersale group during the past years. Welcome to send inquiry or come to our factory.

Reliable friend Dawson, always the max supprt!
