Wide Neck PET Plastic Injection Mould Machine Jar Cup Can Container Preform Production Line
Product Description
DAWSON MACHINERY & MOULD GROUP

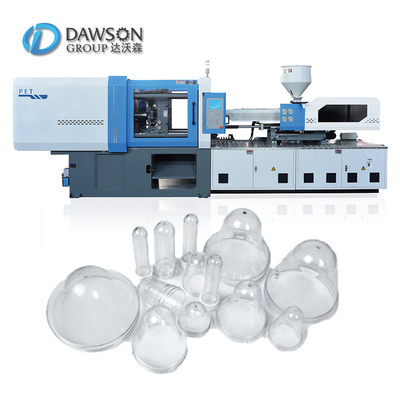

Injection MoldingMachine
Specialized for making PET preforms, small neck as well as wide neck.
PET material special screw, all machine adopt latest Taiwan control system,
World class famous brand components such as Japan YUKEN hydraulic valve for highest quality standard and machine performance.
We also able to provide mould design and manufacture to help you build up your own manufacturing.
Technical Parameters
Parameters
PET170S/530
PET230S/1000
PET270S/1000
PET270S/1500
Screw diameter
mm
50
62
62
70
Theoretical shot volume
cm3
450
860
860
1300
Shot weight
g
527
1006
1006
1521
Clamping force
KN
1700
2300
2700
2700
Toggle stroke
mm
435
475
540
540
Ejector stroke
mm
135
140
150
150
Space between tie bars
mm
460 * 460
520 * 520
570 * 570
570 * 570
Mould thickness
mm
180 ~ 500
200 ~ 530
200 ~ 550
200 ~ 550
Motor power
kw
28
36
43
56
Machine size
m
5.5 * 1.4 * 2.1
6.14 * 1.5 * 2.14
6.34 * 1.6 * 2.25
7.21 * 1.7 * 2.37
Machine weight
ton
6.5
7.5
8.5
9

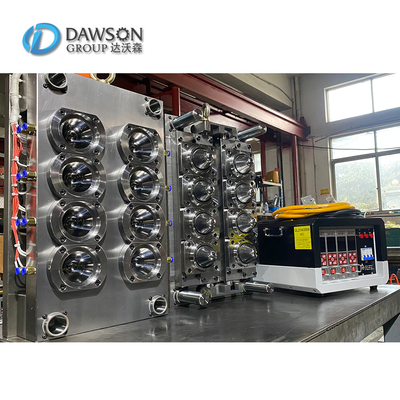

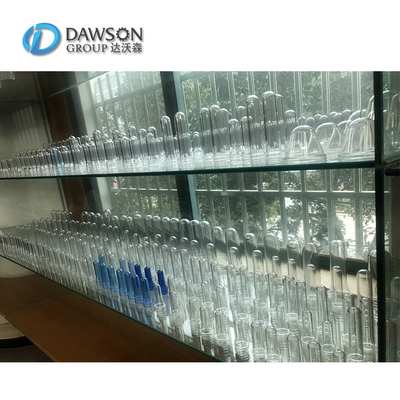

Details Images
DAWSON MACHINERY & MOULD GROUP
Starting Business since 2003!
Our injection molding machines are sold to all over the world, to many South America, Asia, Africa countries.
Local service team in Saudi Arabia, Colombia, Panama, South Africa ...
Located in Zhangjiagang city, we are experienced in injection molding machine project. Help a lot of customers build their own business and production line.
Professional aftersale team solve your problems during production.
DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
