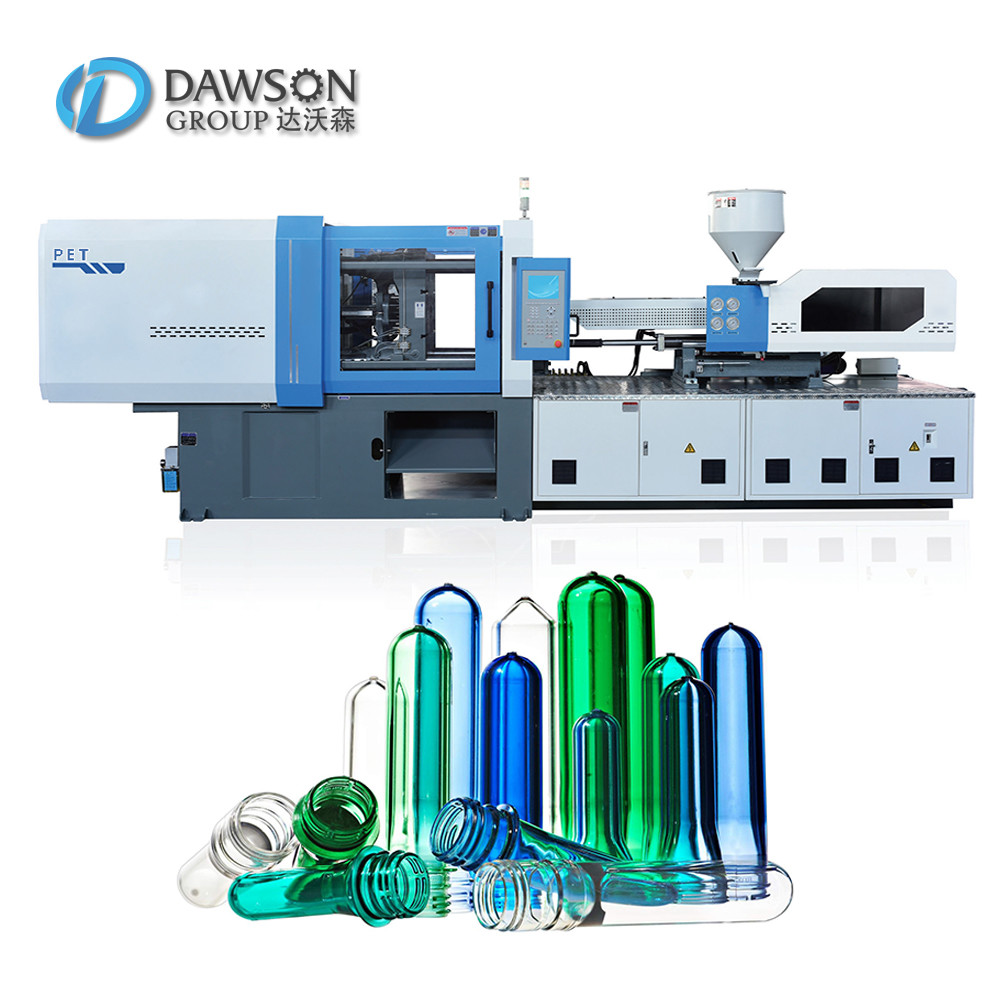

2300 KN PET Plastic Bottle Injection Molding Machine Preform Horizontal Small
Product Description
DAWSON MACHINERY & MOULD GROUP
Injection MoldingMachine
Specialized for making PET preforms , caps , pails, buckets, jars, covers, lids.
Special screw for PET products, all machine adapt latest Taiwan control system,
Japan YUKEN hydraulic valve for highest quality standard and machine performance.
We also able to provide mould designing and manufacturing to help you build up all kinds of plastic items manufacturing.
Technical Parameters
Parameters
PET170S/530

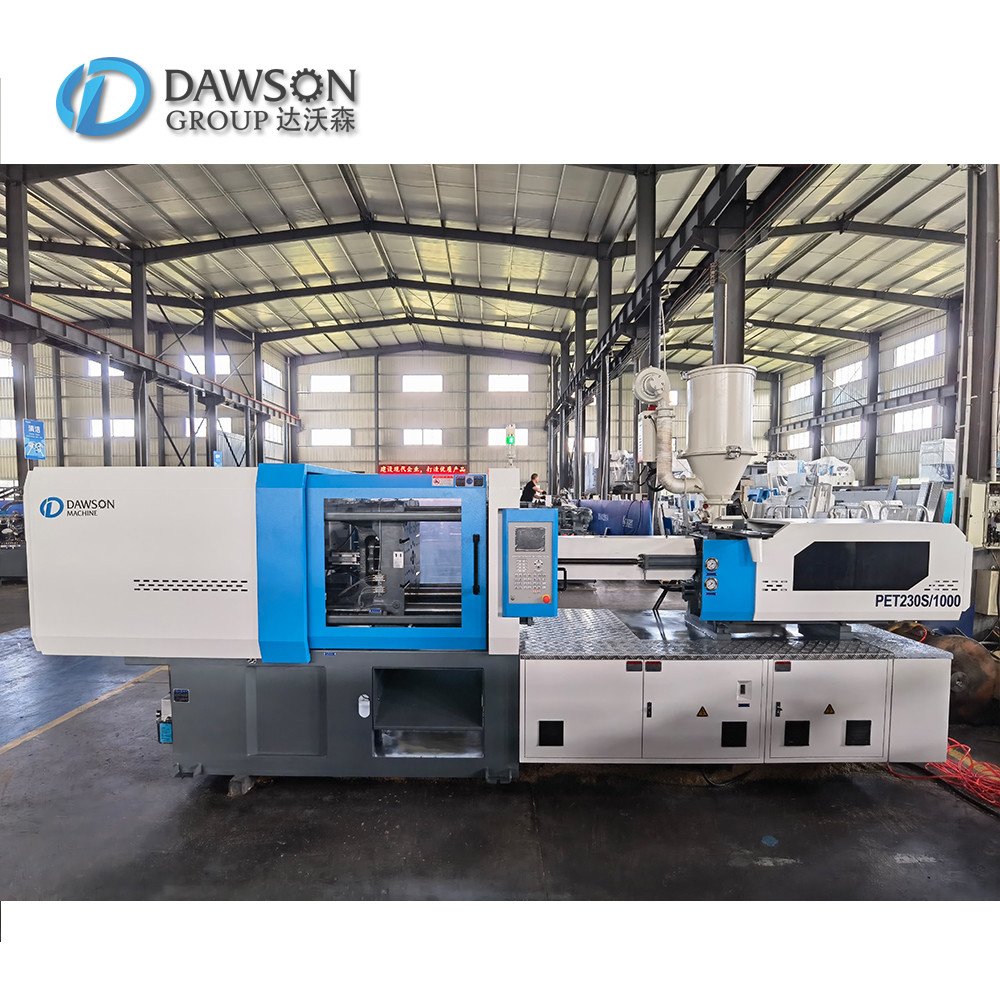

PET230S/1000
PET270S/1000
PET270S/1500
Screw diameter
mm
50
62
62
70
Theoretical shot volume
cm3
450
860
860
1300
Shot weight
g
527
1006
1006
1521
Clamping force
KN
1700
2300
2700
2700
Toggle stroke
mm
435
475
540
540
Ejector stroke
mm
135
140
150
150
Space between tie bars
mm
460 * 460
520 * 520
570 * 570
570 * 570
Mould thickness
mm
180 ~ 500
200 ~ 530
200 ~ 550
200 ~ 550
Motor power
kw
28
36
43
56
Machine size
m
5.5 * 1.4 * 2.1
6.14 * 1.5 * 2.14
6.34 * 1.6 * 2.25
7.21 * 1.7 * 2.37
Machine weight
ton
6.5
7.5
8.5
9

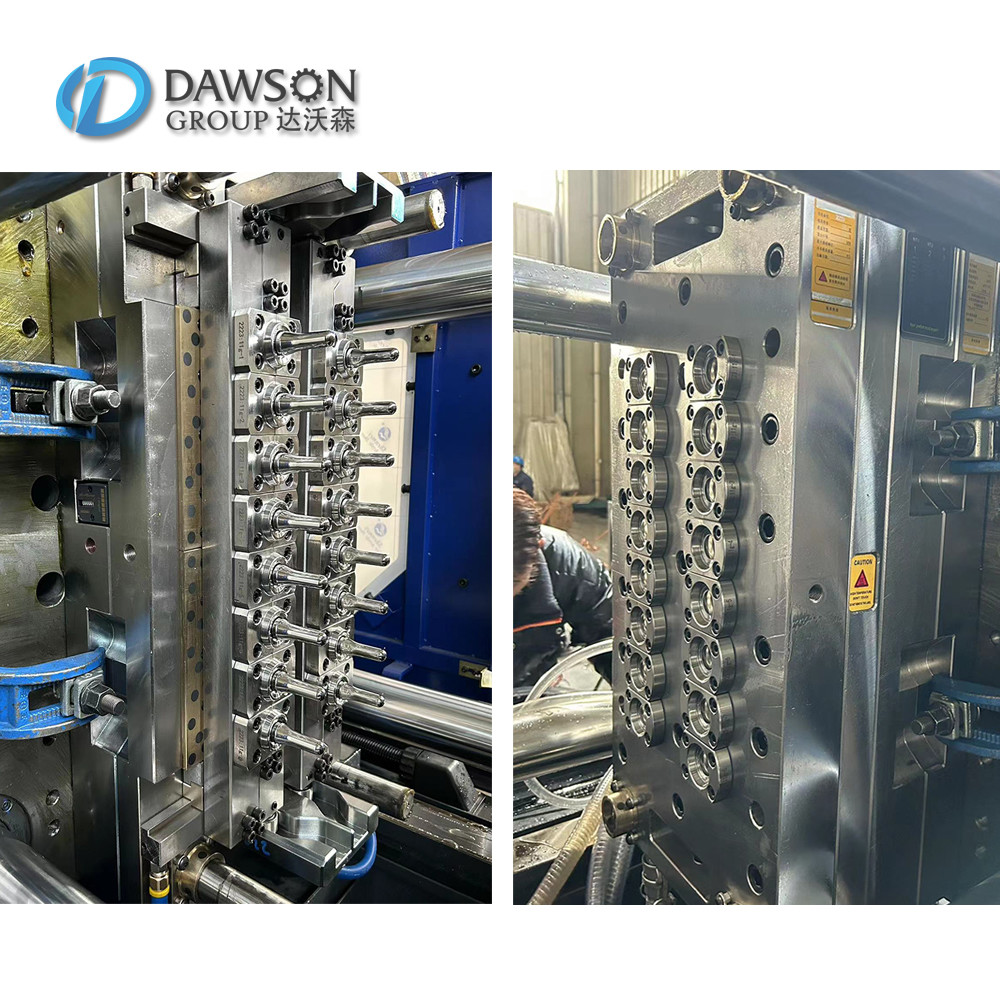

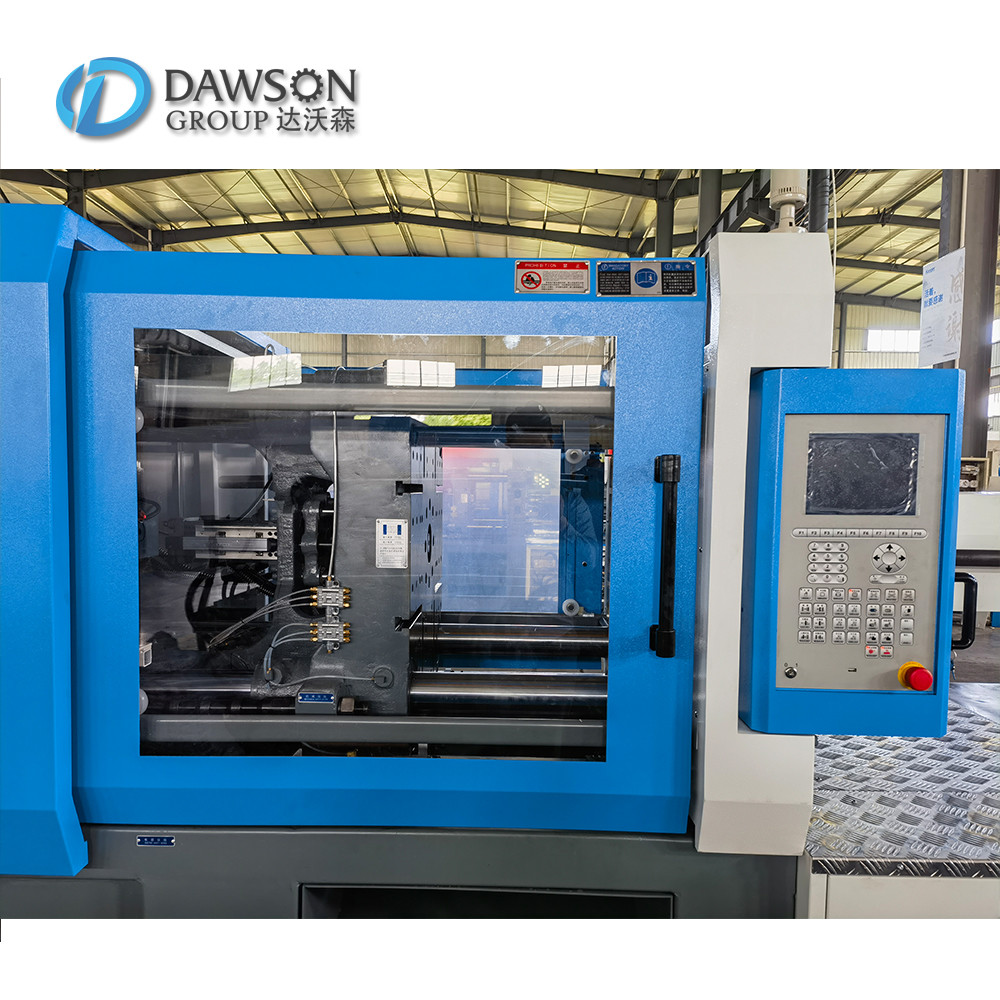

Details Images
DAWSON MACHINERY & MOULD GROUP
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....
We have our own service team in
Saudi Arabia, Colombia, Panama, South Africa ...
DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
injection molding machine, blow molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!
DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
