Mineral Water Bottle PET Blow Molding Machine Plastic 3500 KG 38 Mm

Brand Name:	PET
MOQ:	1
Price:	4580 USD/PCS
Delivery Time:	45-60 work days
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Plastic Processed:

PET

Neck Diameter(mm):

38 Mm

Warranty Of Core Components:

1 Year

Weight (KG):

3500 KG

Brand Name:

Dawson

PLC Brand:

GHINGET

High Pressure Valve Brand:

AirTac

Highlight:

water bottle PET blow molding machine

38mm PET blow molding machine

3500KG PET Plastic blow molding machine

Product Description

Plastic making new generation hot sale mineral water bottle blow molding machine

Products Description

 DAWSON MACHINERY & MOULD GROUP

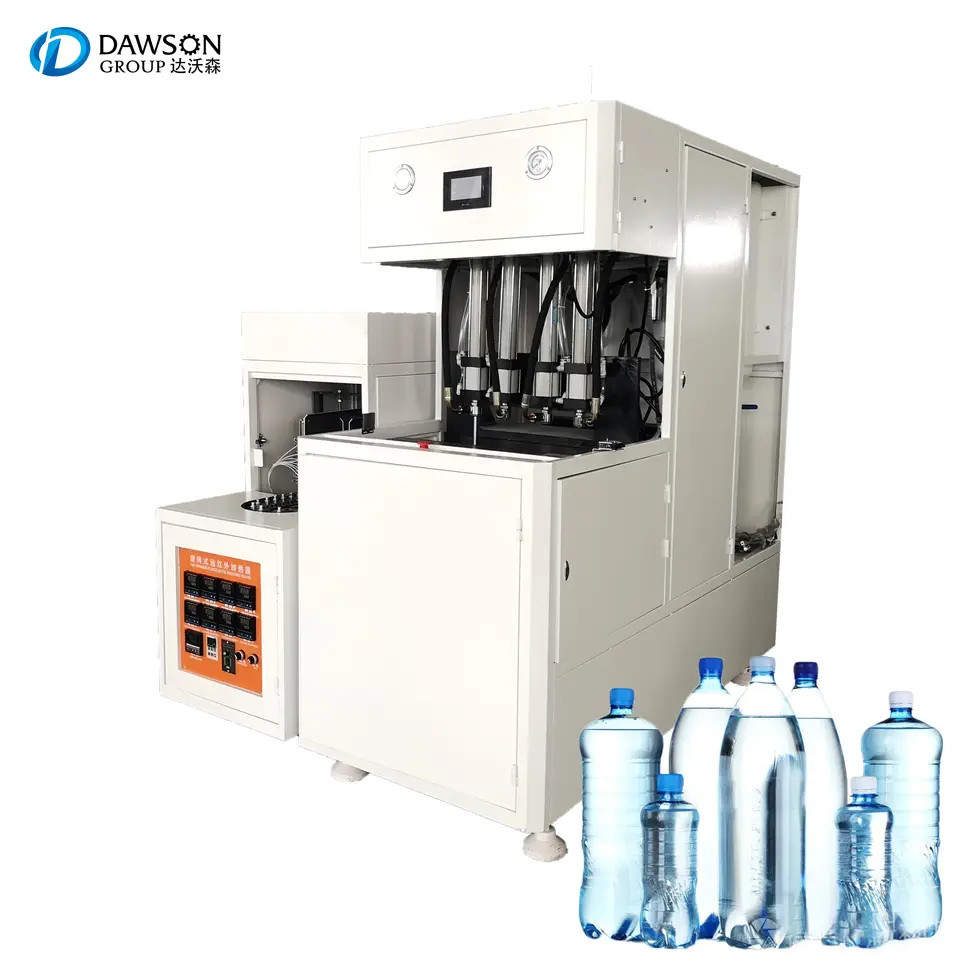

Semi Automatic PET Bottle Blow Molding Machine

This PET bottle making blow moulding machine is controlled by microcomputer. The plastic

blowing machine can control the technical parameters more accurately.With the upper and lower system,emergency stop system,independent counter device,count the output accurately, with infrared lamp heating device,penetrating power, preform rotation heating, heating evenly and quickly.

PET semi-automatic plastic bottle blowing machine is suitable for blowing plastic PET bottles such as carbonated beverage bottles,mineral water bottles, cosmetic bottles and hot filling bottles etc.


			Main machine (blower + oven)

			Item

			YC-2L-4

			Product Spec

			Max. product volume(L/cav)

			2L

			Max. preform neck size(mm)

			100

			Max. product diameter(mm)

			180

			Max. product height (mm)

			300

			Cavities

			4

			Blow molding part

			Die force (KN)

			100

			Die stroke (mm)

			270

			Max. mould size(mm)

			390*345

			Mould thickness

			Adjustable

			Mould spacing(mm)

			Adjustable

			Max. pulling stroke(mm)

			400

			Operation pressure(Mpa)

			0.8-1.0

			Operation air pressure consumption

			(1tr/min)

			200

			Blow pressure(Mpa)

			1.2-2.8

			Blow air pressure consumption (1tr/min)

			300

			Output(pcs/h)

			2600-2800(500ml bottle)

			Machine size(LxWxH)(m)

			1.46*0.58*1.8

			Machine weight(KG)

			650

			Oven

			Temperature grade(rate)

			8

			Heating time(S)

			90-200

			Voltage(V)

			220 or as your request

			Frequency(HZ)

			50/60

			Total power(KW)

			16

			Oven Size (LxWxH)

			1.35*0.55*1.15

			Oven weight (KG)

			300

Machine Advantages

PET Bottle Blowing Machine DescriptionPET linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.

Semi-auto blow molding machine

Semi-automatic bottle blowing machine is controlled by microcomputer,control the technical parameters more accurately.PET bottle blowing machine is simple and safe to operate.It only requires one person and does not require special training. PET blow molding machine is suitable for blow molding of plastic packaging bottles such as carbonated beverage bottles, mineral water bottles, hot filling bottles and cosmetic bottles. It is suitable for the production of small beverage

companies and daily chemical product companies.

infrared lamp heating

Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable;

heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic

temperature-removal device to ensure the constant temperature of oven.

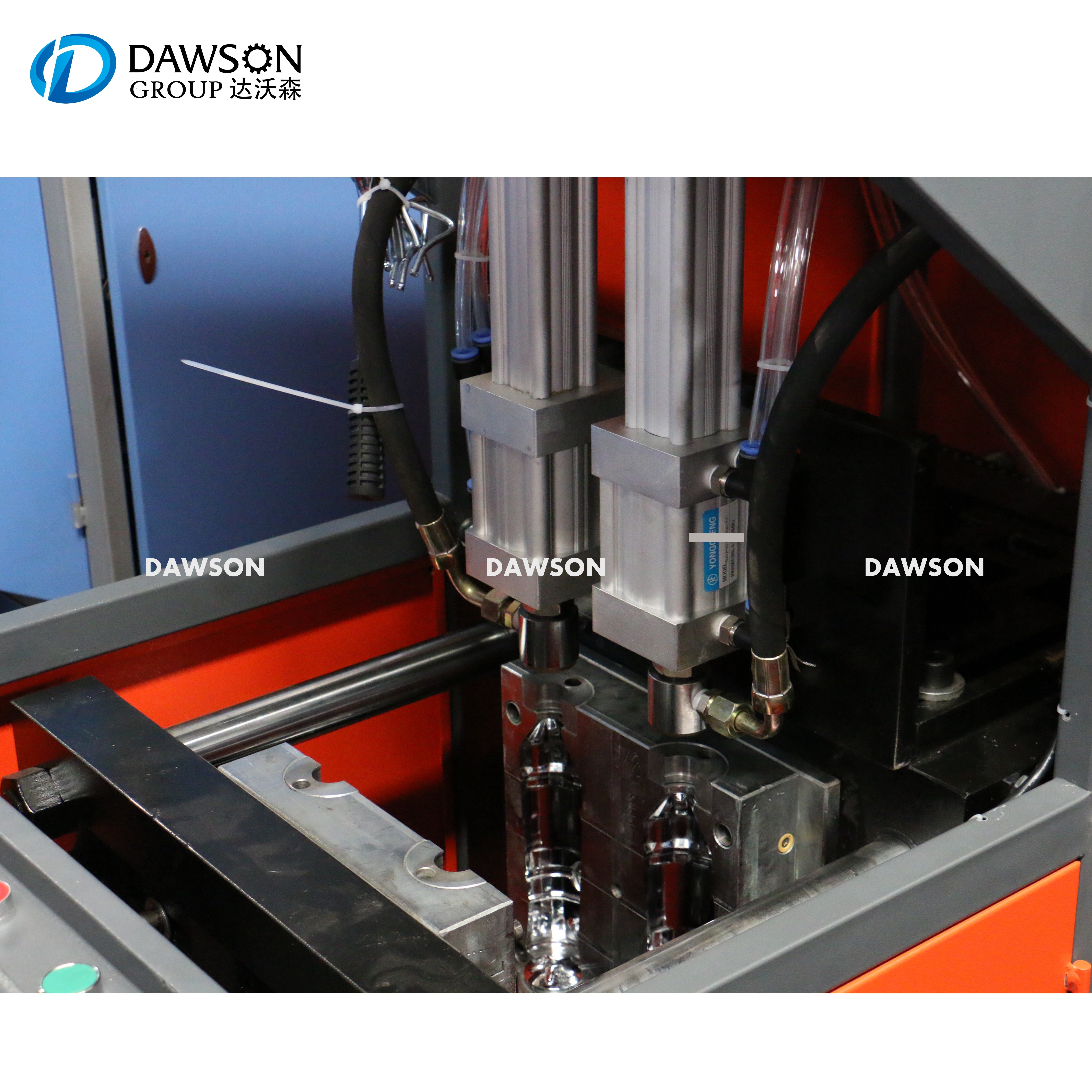

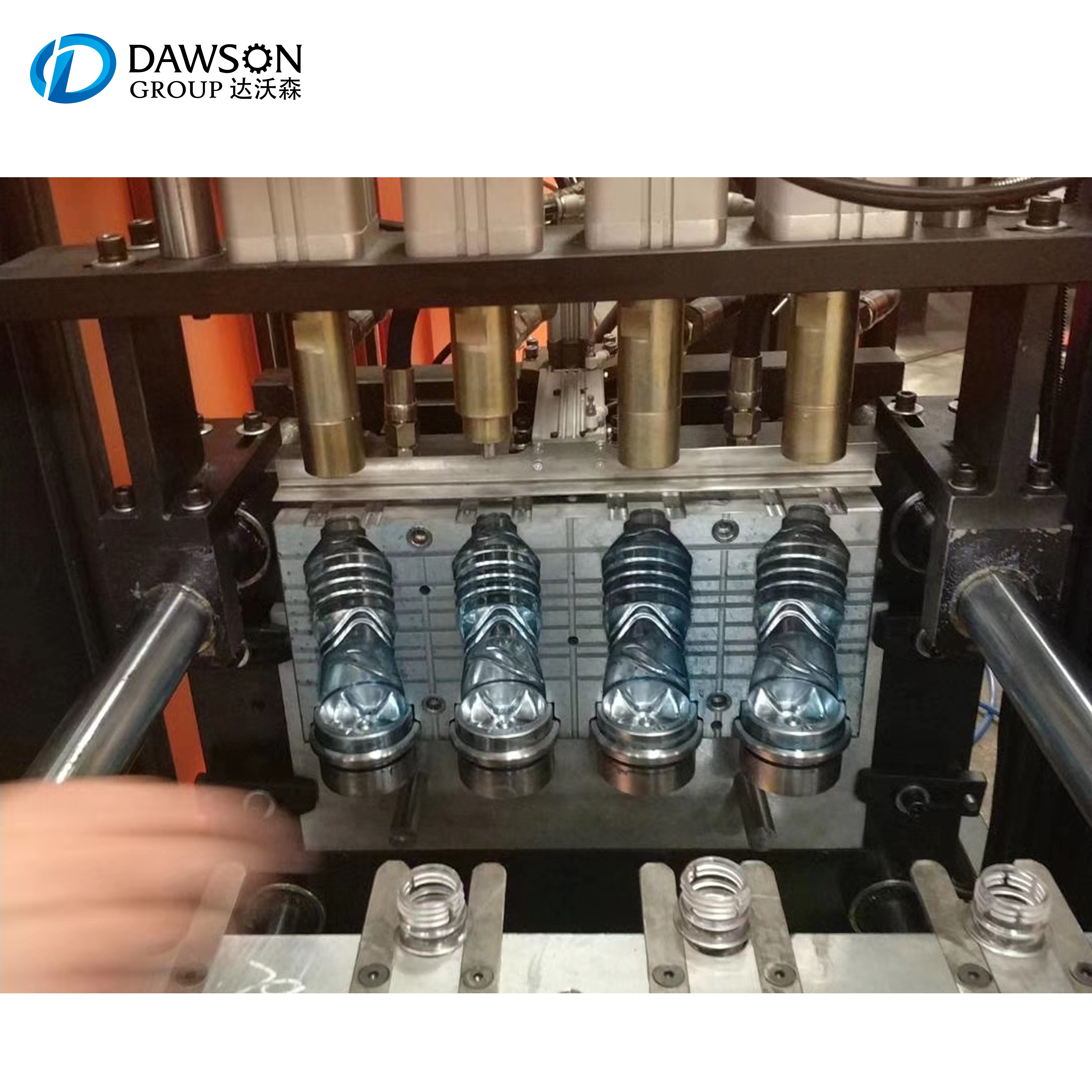

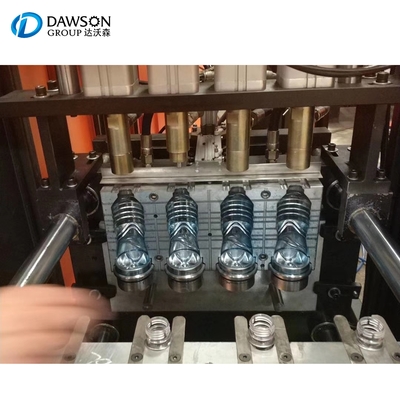

Specially designed high rigidity composite mold structure

Specially designed high rigidity composite mold structure, wide applicability, suitable for various types of mold thickness, easy

to adjust and save energy, less air demand, precision polished spindle, equipped with photoelectric sensor, low noise,rapid

response, long working hours , stable performance,ensure stable operation.

Professional Workshop
Our Professional Injection Stretch Blow Molding Machine Workshop...

Company Profile

DAWSON MACHINERY & MOULD GROUP

Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

We have our own service team in

Saudi Arabia, Colombia, Panama, South Africa ...

RFQ

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong

International Airport. We can

pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with

quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical

support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers

products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the

customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we

can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save

a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
