New type sale popular product plastic 4 cavity pet blowing machinery blow molding machine
Products Description

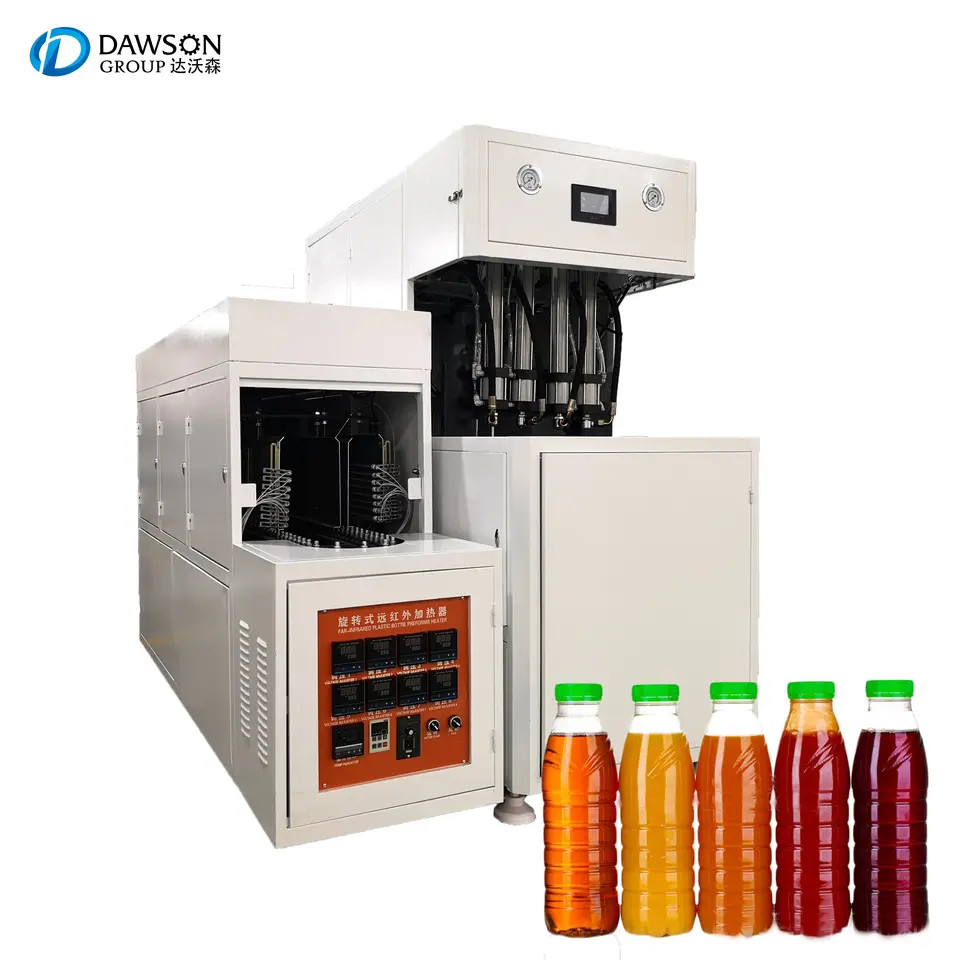

Semi-Auto PET Bottle Blow Moulding Machine
Our Semi Automatic Blow Molding Machine is used in the production of PET water bottles, hot filling bottles, carbonated beverage bottles, edible oil bottles, and pesticide bottles, gallon bottles...etc.
| Main machine (blowert + oven) | Model type | YC-2L-2 | YC-2L-4 | YC-5L-1 |
| Product Spec | Max. product volume(L/cav) | 2 | 2L | 5L |
| Max. preform neck size(mm) | 100 | 100 | 150 | |
| Max. product diameter(mm) | 180 | 180 | 200 | |
| Max. product height (mm) | 300 | 300 | 400 | |
| Cavities | 2 | 4 | 1 | |
| Blow molding part | Die force (KN) | 100 | 100 | 120 |
| Die stroke (mm) | 270 | 270 | 320 | |
| Max. mould size(mm) | 390*345 | 390*345 | 390*350 | |
| Mould thickness | Adjustable | Adjustable | Adjustable | |
| Mould spacing(mm) | Adiustable | Adjustable | Adjustable | |
| Max. pulling stroke(mm) | 400 | 400 | 500 | |
| Operation pressure(Mpa) | 0.8-1.0 | 0.8-1.0 | 0.8-1.0 | |
|
Operation air pressure consumption (1tr/min) |
200 | 200 | 350 | |
| Blow pressure(Mpa) | 1.2-2.8 | 1.2-2.8 | 1.2-2.8 | |
| Blow air pressure consumption (1tr/min) | 300 | 300 | 300 | |
| Output(pcs/h) | 800 | 1200-1500(500ml bottle) | 350 | |
| Machine size(LxWxH)(m) | 1.46*0.58*1.8 | 1.46*0.58*1.8 | 1.56*0.7*1.9 | |
| Machine weight(KG) | 650 | 650 | 700 | |
| Oven | Temperature grade(rate) | 8 | 8 | 8 |
| Heating time(S) | 90-200 | 90-200 | 90-200 | |
| Voltage(V) | 220 or as your request | 220 or as your request | 220 or as your request | |
| Frequency(HZ) | 50/60 | 50/60 | 50/60 | |
| Total power(KW) | 16 | 16 | 16 | |
| Oven Size (LxWxH) | 1.35*0.55*1.15 | 1.35*0.55*1.15 | 1.45*0.65*1.15 | |
| Oven weight (KG) | 300 | 300 | 330 |
Professional Workshop
Our Professional Injection Stretch Blow Molding Machine Workshop...
 |
|
