Name: 5L Jerrycan Laundry Bottles Blow Molding Machine Plastic Engine Oil Chemical Container
Brand: Dawson Machinery & Mould Group Co.,Ltd
SKU: DSB80
Price: 55.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Output (kg/h): 100 Kg/h

Machinery Test Report: Provided

Blow Molding Type: Extrusion Blow Molding Machine

Showroom Location: None

Water Flow: 100L/Min

Weight (T): 7.5

Mold Platen Size(Width)(mm): 380 Mm

Screw Heating Power(kW): 7 KW

Highlight:

Jerrycan Laundry Bottles Blow Molding Machine

100 kg/h Bottles Blow Molding Machine

7 kW Bottles Blow Molding Machine

Basic Infomation

Place of Origin: China

Brand Name: DAWSON

Certification: CE

Model Number: DSB80

Payment & Shipping Terms

Packaging Details: Standard Export Packing

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T

Supply Ability: 20 set/month

Gallery

5L Jerrycan Laundry Bottles Blow Molding Machine Plastic Engine Oil Chemical Container

Product Description

5L Jerry Can Plastic Engine Oil bottle making Chemical Container Laundry Bottles Blow Molding Machine Price

DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

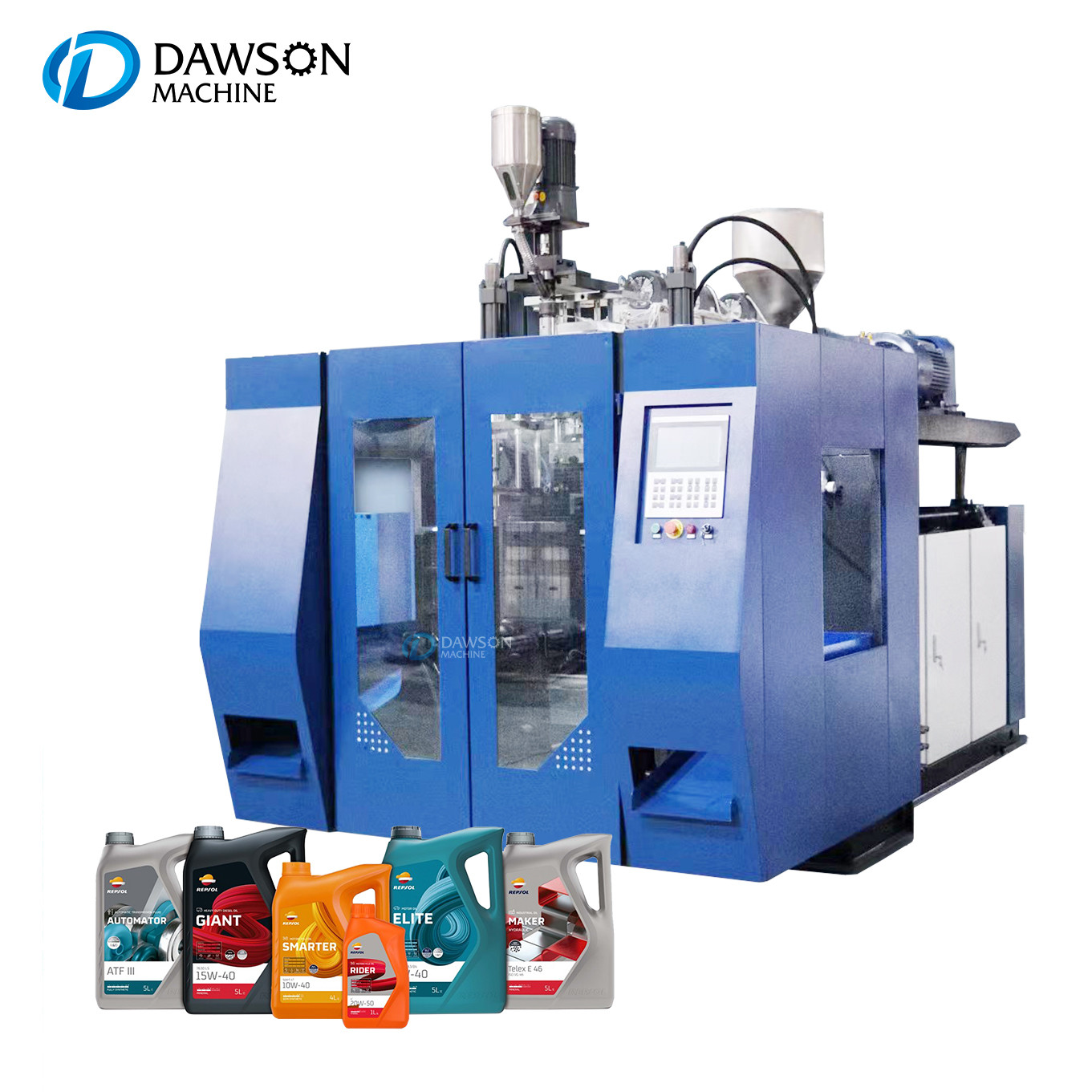

Automatic Extrusion Blow Molding Machine

5L Jerrycan Laundry Bottles Blow Molding Machine Plastic Engine Oil Chemical Container 0

Products Description

DAWSON MACHINERY & MOULD GROUP

Extrusion Blow Molding Machine
This type of blow molding machine can produce plastic balls, milk bottles,plastic oil bottles, detergent bottles,shampoo bottles,medical bottles,tube, plastic cans,containers,jars,tools,toys,etc.

			Machine Model

			Max. Bottle size

			Production forecast

			ABLB80

			Double Station single Head

			10L

			120~150 BPH

			Single Station Single Head

			12L

			90~120 BPH

Technical Parameters

			Name

			Units

			ABLB80

			ABLB80II

			Max.product volume

			L

			12

			10

			Screw diameter

			MM

			80

			80

			Screw drive power

			KW

			30

			37

			Output of HDPE

			KG/H

			110

			120

			Oil pump drive power

			KW

			11

			11

			Clamping force

			KN

			100

			100

			Max.size of mold

			MM

			400*550

			400*550

			Template size

			MM

			400*540

			400*540

			Mold stroke

			MM

			170~520

			170~520

			Max.die diameter

			MM

			200

			200

			Size of machine

			L×W×H

			4.8*2.1*2.6

			4.8*2.3*2.6

			Weight of machine

			TON

			6.5

			8.5

			Name
			Trader

			electronic parts

			Microcomputer control system
			Japanese MITSUBISHI

			Temperature Controller
			Japanese MITSUBISHI

			Auxiliary Relay
			OMRON

			contactor
			Schneider from France

			Electric motor
			WN

			Power Source
			TAIWAN MEANWELL

			Inverter
			DELTA

			hydraulic parts

			Oil pump
			SUMITOMO

			Valve
			JAPAN YUKEN

			Oil pump and connection
			JAPAN YUKEN

			Sealed part
			HALLITE

			air control system

			Cylinder
			AIRTAC

			Air Valve
			AIRTAC

			No
			Product
			quantity
			remark

			1
			Relay
			2
			24V and 220V

			2
			Air pipe connector
			1

			3
			P10 Reinforced pipe

			4 meters

			4
			4V210 electromagnetic air valve
			1

			5
			Simple switcher
			2
			One for 32A, the other 10A

			6
			connector(3210)
			2

			7
			Seal components,scraper seal
			1

			8
			17-19 open spanner
			1

			9
			Knuckle buster
			2
			35-42 and 78-86

			10
			Proximity switch
			4

			11
			thermocouple
			5

			12
			Air throttle valve
			1

			13
			Key button
			4

			14
			Indicator light
			1

			15
			fuse
			8
			10A,5A

			16
			temperature controller
			2

			17
			Ammeter
			2

			18
			Fast insert
			5
			10-01,10-02,12-02,12-03,

			10-03

			19
			High temperature wire
			10m
			With connecting plug

			20
			Inner haxagon spanner
			1

			21
			Screw driver
			3
			2 slotted driver,1 cross driver

			22
			PU10 air pipe
			5m

			23
			PU12 air pipe
			4m

			24
			Blow pin connections
			5sets

			25
			Air filter
			2

			FAQ

			Q: Can we visit your factory?

			Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong

			International Airport. We can

			pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

			Q: How can we get the exact price of plastic machine?

			Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with

			quotation.

			Q: Do you provide any spare parts with machine?

			Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

			Q: How about your after-sale service ?

			We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical

			support or field installation assist.

			Q: What is the lead time?

			For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

			Q: What is the warranty period for your machine ?

			12 months warranty for components and technical support .

			Q: Do you provide custom machines?

			Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers

			products to meet customer' needs.

			Q: How can we install the machine when it arrives?

			We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the

			customer's employees.

			Q: What's DAWSON's advantage?

			DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we

			can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save

			a lot of cost and time.

			DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
