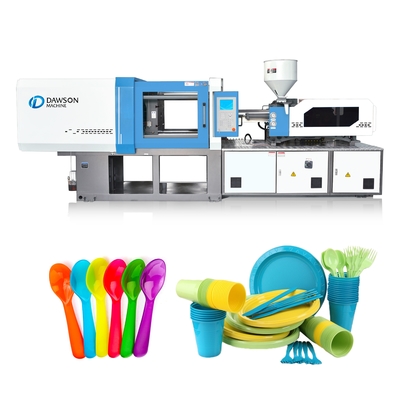

Spoon Fork Producing Injection Molding Machine High Speed 510*510 Mm 200g/S

Spoon Fork Producing Injection Molding Machine High Speed 510*510 Mm 200g/S

Brand Name:	DAWSON
Model Number:	BST-2300A
MOQ:	1 set
Price:	US $37000-39800/ Set
Delivery Time:	55-65working days
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

LDistance Between Tie Bars:

510*510 Mm

Used For:

Tube Connector, Preform, Caps, Crates, Toys...

After-sales Service Provided:

Video Technical Support, Free Spare Parts, Field Installatio

Screw L/D Ratio:

22.8

Plasticizing Capacity(g/s):

200 G/s

Showroom Location:

Philippines

Packaging Details:

Standard Export Packing

Supply Ability:

5 sets / month

Highlight:

Spoon fork Producing Injection Molding Machine

510*510mm Spoon fork Injection Molding Machine

200g/s Spoon fork Injection Molding Machine

Product Description

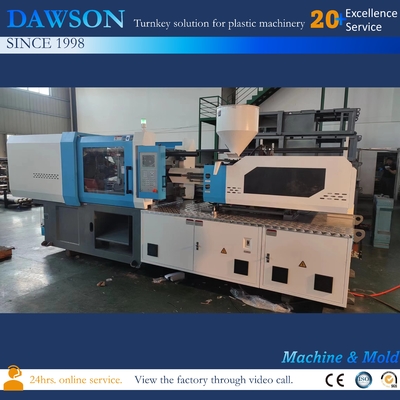

China Supplier Spoon fork Producing Injection Molding Machine high speed machine

DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***

Our injection Molding Machine uses proportional pressure and flow control, the pressure and the speed can be adjusted, stable movement curve and gentle shock,the computer is imported from Industry family.The LCD displaying screen with high clarity has Chinese and English language to use.Close-loop PID temperature control with the advantage of high precision.The operating table of the injection moulding machine have two safety, one is machine safety, another is electrical safety, that ensures the operators's safety.

Products Description

Totally Enclosed Design

High-safety

Larger Space Between Tie-Bars

Greater adaptability

Precision Clamping Unit,Adopt 5 points elbows and hydraulic
mechanical drive technology
Modern Control Technology,World famous brands controller
fast response speed,easy for operation

Technical Parameters

Excellent molding produce valvestability

The servo driving system has its pressure and flow under close loop control; and

compared with traditional injection molders, its molding repetition precision is

improved substantially

Rapid response

The servo driver features rapid response whose rapid starting time is improved by

50% compared with traditional injection.

High performanceV environmental protection

The complete machine features. Iow operating noise, and even quieter during Iow

speed operation

Constant oil temperature

The serve motor output hydraulic oil proportionately to prevent excessive heat. It

can achieve substantial water saving even without cooling.

Substantial energy saving

Under the same conditions, it can save 20%-80% energy compared with traditional

constant delivery pump injection molders.

Parameters		BST-1800	BST-2050	BST-2300	BST-2600
Screw diameter	mm	48	48	52	56
Theoretical Shot weight	CM3	420	525	658	770
Shot weight	gram	378	472	592	690
Clamping force	KN	1080	2050	2300	2600
Toggle stroke	mm	440	445	480	530
Ejector stroke	mm	155	155	155	160
Space between tie bars	mm	480*460	490*464	510*510	554*554
Mould thickness	mm	180-470	190-470	200-510	200-550
Machine size	m	5.31.61.75	5.41.61.75	5.71.82.0	6.11.71.8
Machine weight	ton	5.5	6	6.5	8

Standard Feature

Injection Molding Machine Standard Feature

CLAMPING UNIT

1. New type 5-point toggle device with the advantage of stable movement curve and gentle shock
2. High-quality mold platen with enough intensity to ensure no out of shape if high-pressure clamping
3. Hard chrome plated high tensile strength tie bars made of superior alloy with a good wear and corrosion resistance
ability
4. Wear-resistant guide for moving platen
5. Transducer control clamping stroke
6. Many step controls for speed and pressure of clamping and opening
7. Ejection device offer dwell, single, more, vibration function
8. Differential high-speed clamping
9. Low pressure mold protection function
10. Hydraulic mold height adjustment derived by gear with rough and fine operation
11. Mechanical and electrical dual safety interlock
12. Automatic centralized lubrication system with far pressure detector

HYDRAULIC UNIT

1. Proportional pressure and flow control with the advantage of fine adjustment and high precision
2. Know-how manifold design, compact, reasonable and fast respond
3. Imported world famous hydraulic valves
4. Imported world famous hydraulic sealing rings
5. Import technology hydraulic hose and fittings
6. Low noise hydraulic system
7. Oil tank with inner stainless-steel container
8. Precision oil filter
9. Oil cooler

CONTROL UNIT

1. 1. The computer is imported from Industry family. The LCD displaying screen with high clarity has Chinese and English
language to display
2. World famous electrical components
3. Close-loop PID temperature control with the advantage of high precision.
4. Deviation preset between high and low temperature. And break control for temperature sensor.
5. Alarming system in case of cold start and no material in hopper
6. Transducer control the injection and opening stroke to accuracy of ±0.05mm
7. 99 steps speed control for increasing and reducing to suit for different technology demands
8. Self-diagnostic and trouble alarm function
9. Parameters lock function to avoid being changed
10. 100 sets of production parameters can be stored into the computer memorial software
11. Machine can record the quantity of products and automatically stop if up to the required quantity.
12. Emergency stop device
13. Alarm lamp

SPARE PARTS

█ Operation Manual █ Normal hopper
█ Level pad █ Heater band █ Mold clip

Spoon Fork Producing Injection Molding Machine High Speed 510*510 Mm 200g/S 2

Company Profile

DAWSON MACHINERY & MOULD GROUP

Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

We have our own service team in

Saudi Arabia, Colombia, Panama, South Africa ...

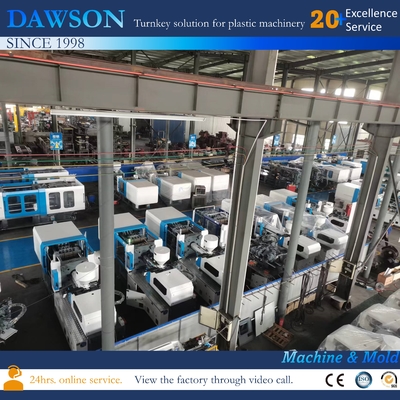

DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
injection molding machine, blow molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!

Customer Photos

We committed to providing customers with plastic machinery & equipment production lines beyond expectations.

Customer satisfaction is our eternal pursuit...

			FAQ

			Q: Can we visit your factory?

			Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong

			International Airport. We can

			pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

			Q: How can we get the exact price of plastic machine?

			Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.

			Q: Do you provide any spare parts with machine?

			Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

			Q: How about your after-sale service ?

			We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.

			Q: What is the lead time?

			For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

			Q: What is the warranty period for your machine ?

			12 months warranty for components and technical support .

			Q: Do you provide custom machines?

			Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.

			Q: How can we install the machine when it arrives?

			We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.

			Q: What's DAWSON's advantage?

			DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
