Automatic HDPE IBC water tank barrel blow molding making machine golden manufacturer
DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....
DAWSON MACHINERY & MOULD GROUP

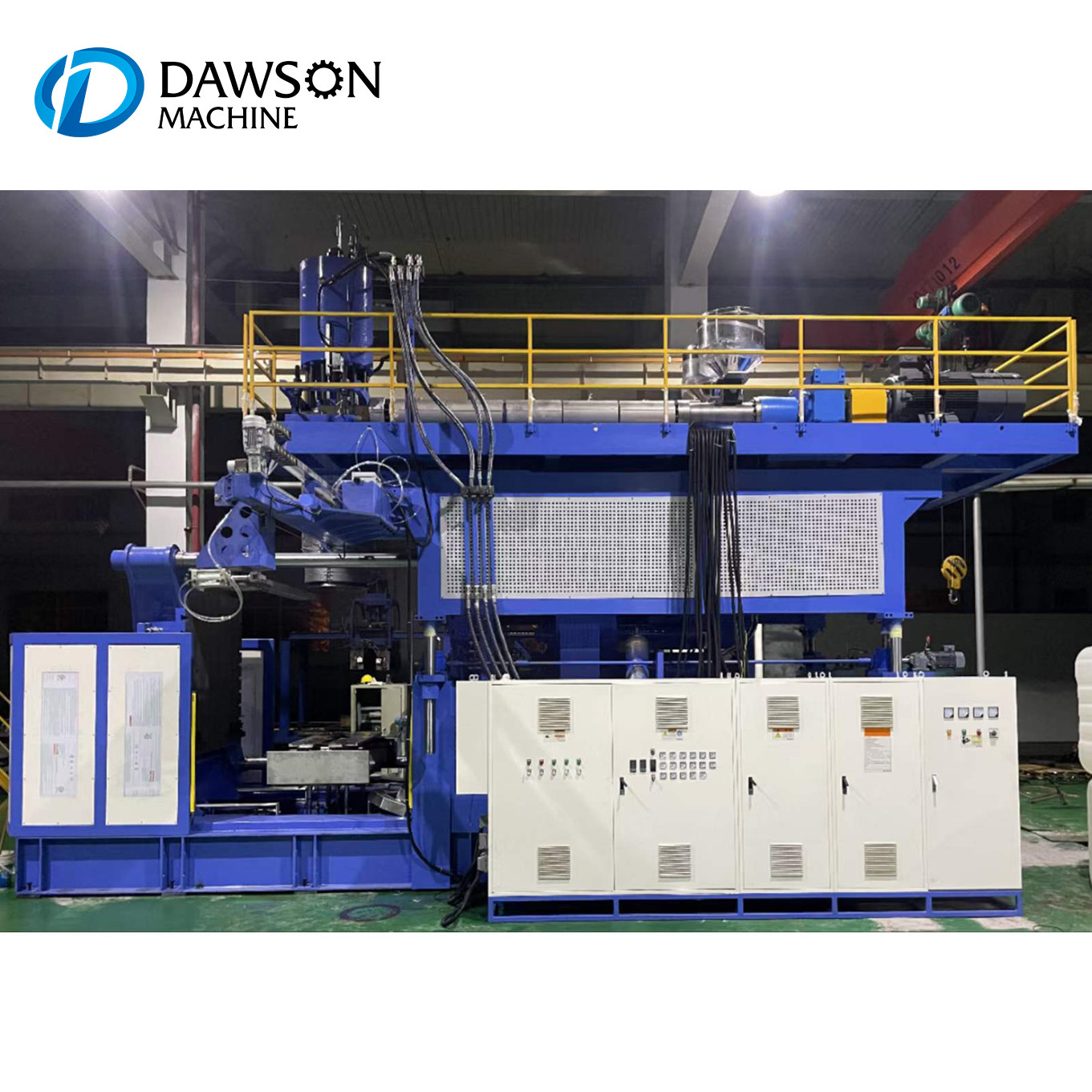

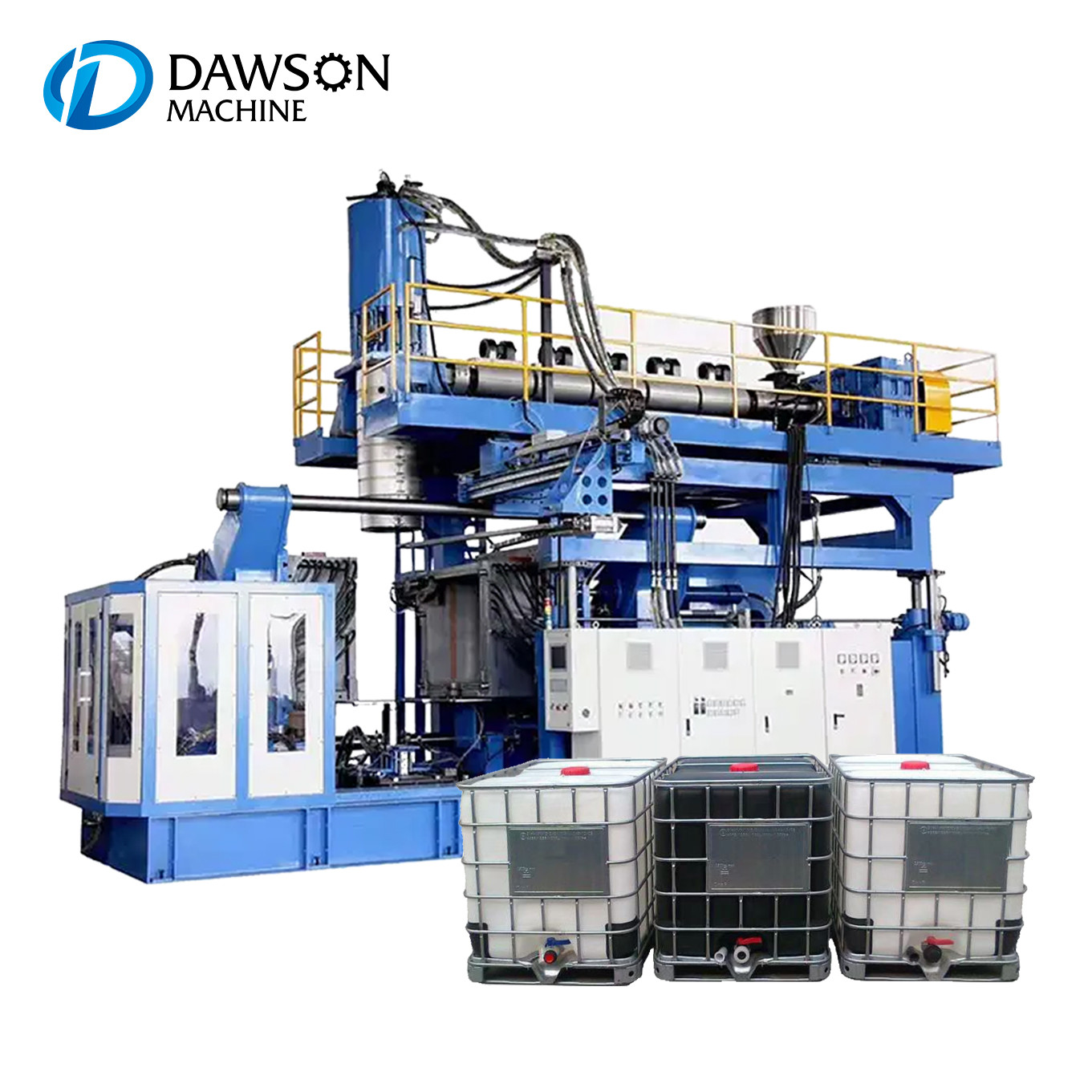

Extrusion Blow Molding Machine DMB-1000L
Main characteristics of JLDM1000L blow molding machine
1. The mechanical structure is stable and reliable, the intermediate formwork is threaded through the pull rod, and the overall processing accuracy of the frame is high.
2 Modular design, simple disassembly and assembly, on-site installation completed in one day
3. The double layers are evenly distributed, and the proportion of the inner and outer layers is adjustable
4. Special polymer screw has uniform plasticization without temperature rise. More than 500 capacity in 24 hours
5. The hydraulic system is stable and reliable, and the action is stable, and the injection time is about 10 seconds
6. IBC special design die head, fast color change, low energy consumption, average 8 kilowatt-hours per barrel
The 7-die eccentric machining center is repaired at one time without screw top, and the eight corners of the product are strong,
The wall thickness is uniform, and the lightest can reach 13kg
8 Screw cooling and hydraulic cooling, equipped with separate automatic circulating cooling system, with good cooling effect
9 Manipulator and down-blowing are controlled by proportional valve, which is accurate and stable
The overall appearance is beautiful and generous, the quality of imported equipment, and the image of the enterprise is improved
|
Name
|
Units
|
DMB-1000L
|
|
Max.product volume
|
L
|
1200L
|
|
Screw diameter
|
MM
|
120
|
|
Screw drive power
|
KW
|
132
|
|
Output of HDPE
|
KG/H
|
500-550
|
|
Oil pump drive power
|
KW
|
42
|
|
Clamping force
|
KN
|
2200
|
|
Max.size of mold
|
MM
|
1700× 1800
|
|
Template size
|
MM
|
1800×1800
|
|
Mold stroke
|
MM
|
1100-3300
|
|
Size of machine
|
L×W×H
|
11×7×7
|
|
Weight of machine
|
TON
|
65
|
DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!
DAWSON will be your reliable friend in China, and we will always do our best to give you max support!

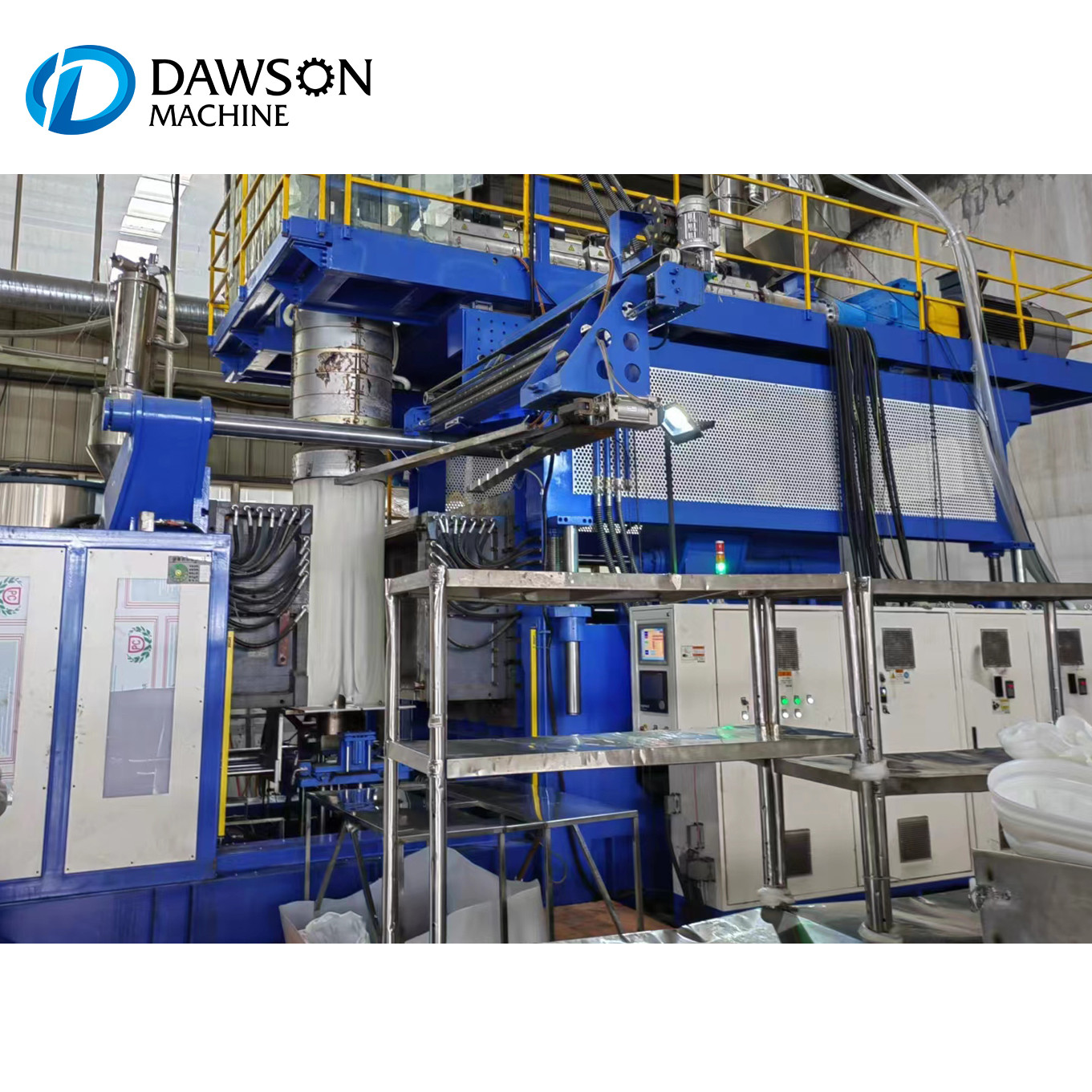

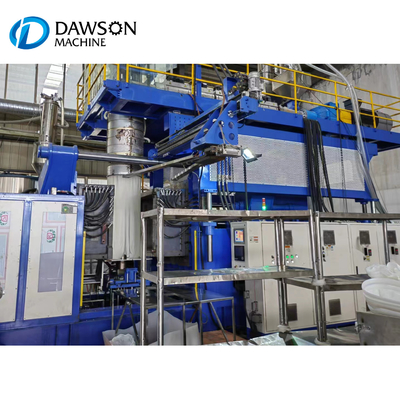

Our professional blow molding machine workshop...

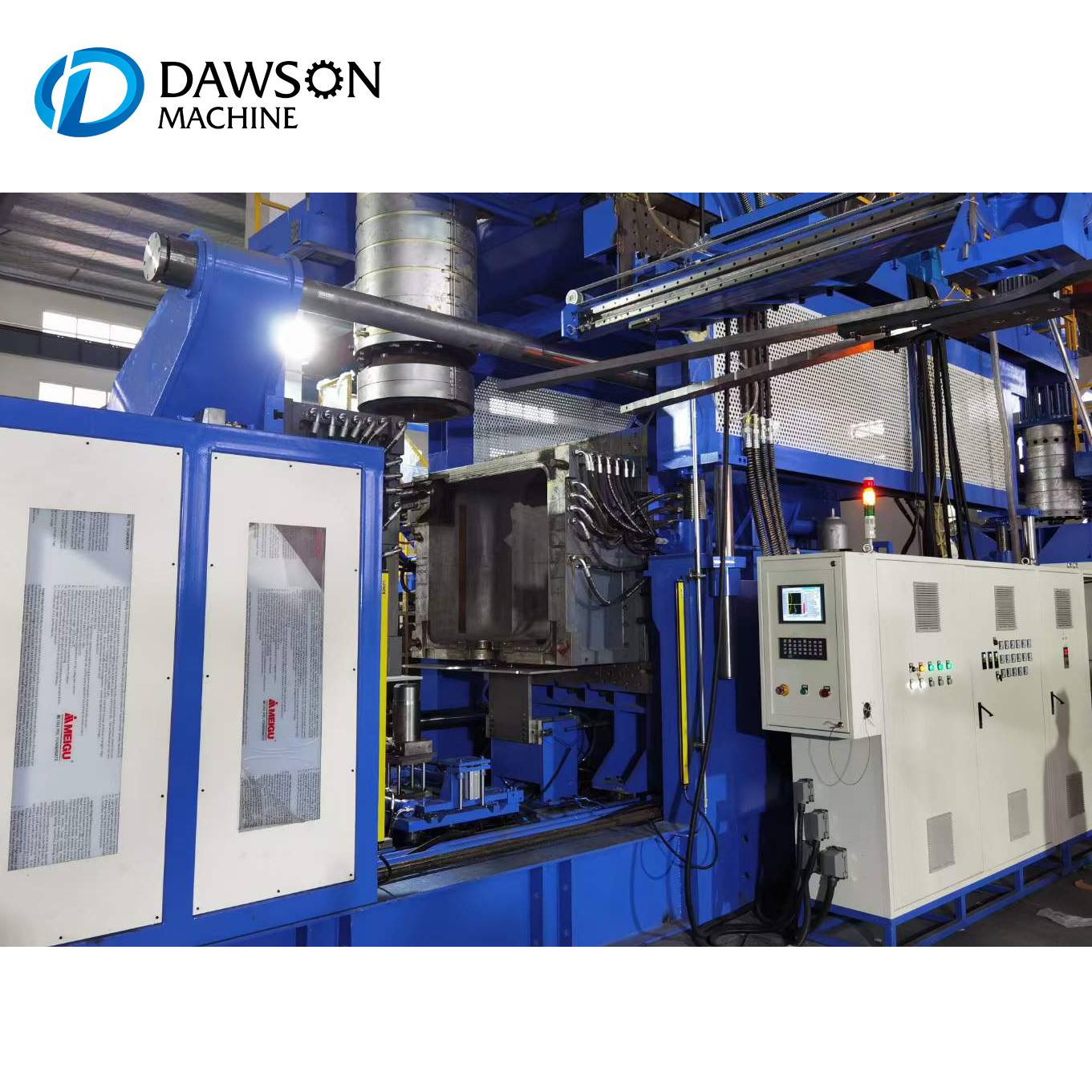

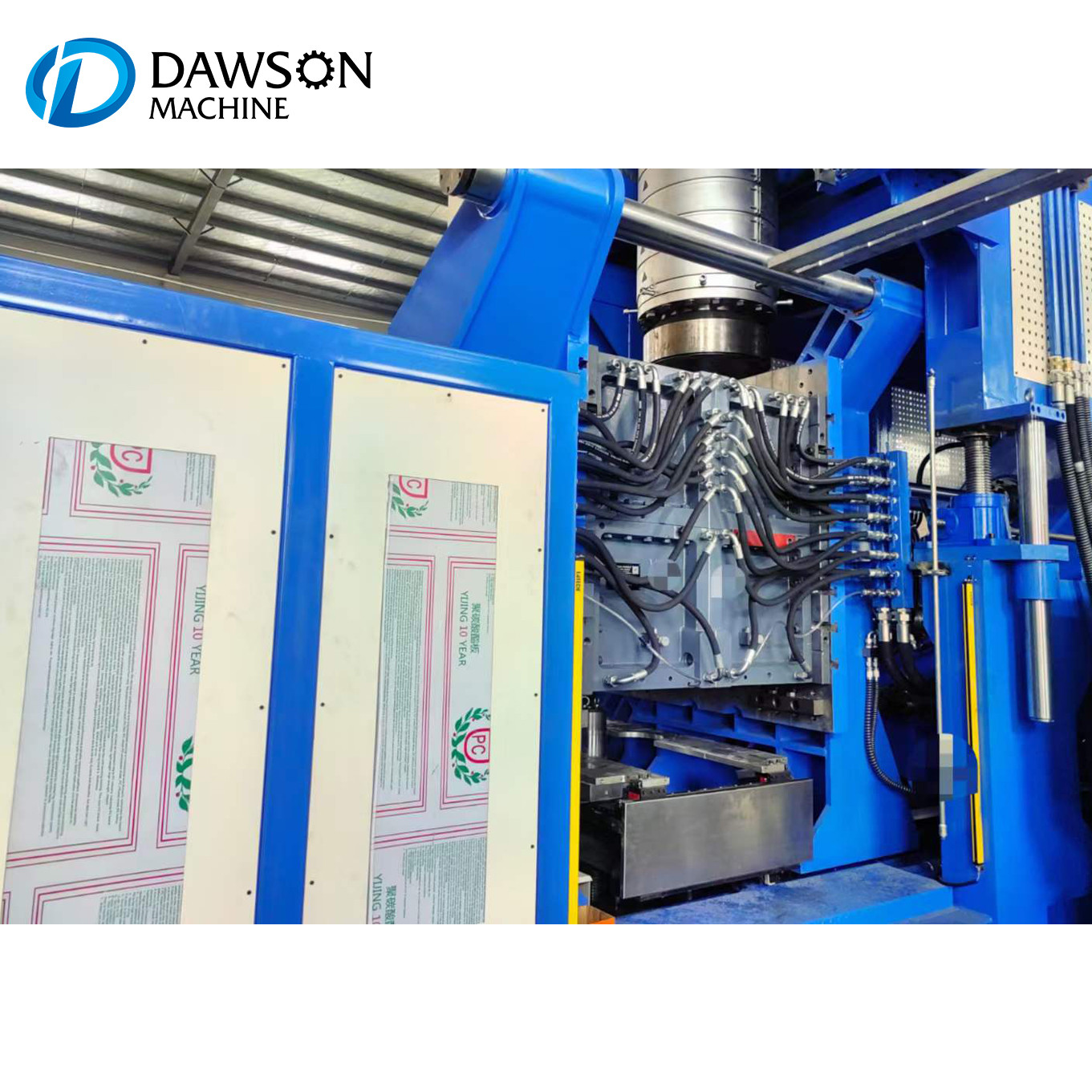

High Quality Blow Molding mould
In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.
We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.
- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat treatment to HRC62
- Double neck design available to change in future as a spare part necking
- All mould can be made auto-deflashing or manual deflashing as per customer requests
- Perfect mould cooling design to ensure the best moulding preformace
- Available to provide 2D & 3D product drawing for customers
- Available to send samples to customer for approval the product quality
- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU,
HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...
|
|
|
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.
Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.
Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
