Home /Products/1000L Blow Molding Machine/HDPE Extrusion Blow Molding Making Machine 1000L IBC Tank 500KG / H

HDPE Extrusion Blow Molding Making Machine 1000L IBC Tank 500KG / H

1 set
MOQ
US $287000-430000/ Set
Price
HDPE Extrusion Blow Molding Making Machine 1000L IBC Tank 500KG / H
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: ABLD150
Max. Product Volume: 1000 Liters
Mold Platen Size: 1800×1800
Core Components: PLC, Engine, Bearing, Gearbox, Gear
Trademark: DAWSON
Made In: China
Highlight:

HDPE Extrusion Blow Molding Making Machine

,

1000L IBC Extrusion Blow Molding Machine

,

500 KG/H Extrusion Blow Molding Machine
Basic Infomation
Place of Origin: CHINA
Brand Name: DAWSON
Certification: CE
Model Number: ABLD150
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 55-65working days
Payment Terms: L/C, T/T
Supply Ability: 5 sets / month
Product Description



Special Designed 1000L HDPE IBC Tank Extrusion Blow Molding Making Machine



DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***



HDPE Extrusion Blow Molding Making Machine 1000L IBC Tank 500KG / H 0





Products Description



DAWSON MACHINERY & MOULD GROUP
Extrusion Blow Molding Machine DMB-1000L

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....
Machine Model
Max. Bottle size
Production forecast
DMB-1000L
Single Station Accumulator Head
1200L
20-25 BPH



Technical Parameters
1 Model No# DS1000L
2 Product Range IBC tank,Water tank, Road Barrier, Pallets
3 Product Layers Double Layer
4 Processing Material HDPE/HMW-HDPE
5 Machine Dimension 11mx7mx7m
6 Machine Weight 65Ton
7 Total Power 360KW
8 Average power Consumption 234KW
9 Extruders 2 sets of extruders
10 Die Head 50 L accumulator die head
11 Output 20~25 pieces of IBC TANK




SR DESCRIPTION OF PARTS BRAND ORIGIN
1 PLC SIEMENS GERMANY
2 TOUCH SCREEN SIEMENS GERMANY
3 INVERTER SIEMENS GERMANY
4 SCREW MOTOR SIEMENS GERMANY
5 AIR SWITCH SIEMENS GERMANY
6 CONTACTOR SIEMENS GERMANY
7 SSR (SOLID STATE RELAY) CARLO GAWAZZI SWIZERLAND
8 WALL THICKNESS CONTROLLER MOOG USA
9 SERVO VALVE MOOG JAPAN
10 HYDRAULIC VALVE YUKEN JAPAN
11 SOLENOID VALVE YUKEN JAPAN
12 PNEUMATIC VALVE AIRTAC TAIWAN

Photos Reference

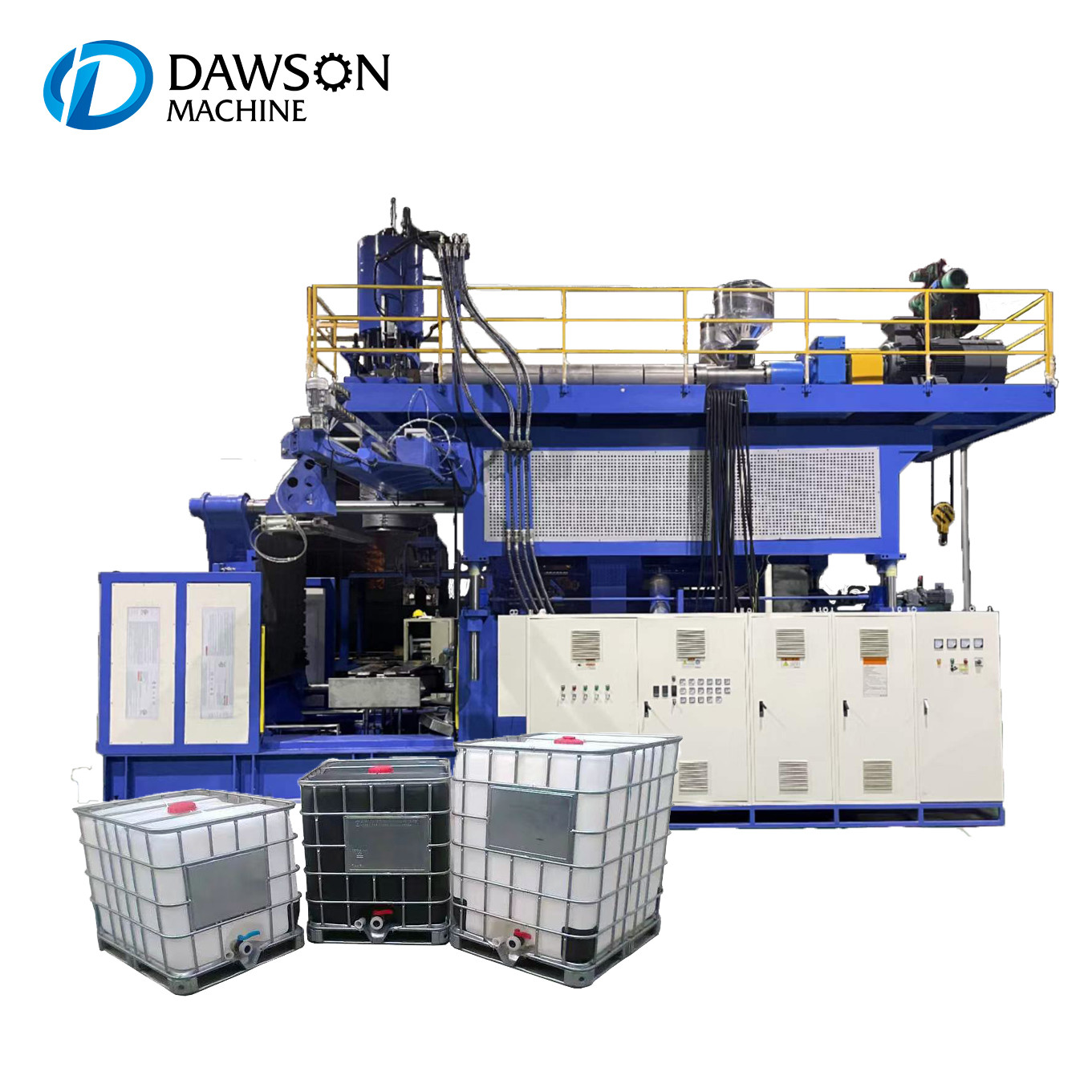

HDPE Extrusion Blow Molding Making Machine 1000L IBC Tank 500KG / H 1
Technical Parameters
Name
Units
DMB-1000L
Max.product volume
L
1200L
Screw diameter
MM
120
Screw drive power
KW
132
Output of HDPE
KG/H
500-550
Oil pump drive power
KW
42
Clamping force
KN
2200
Max.size of mold
MM
1700× 1800
Template size
MM
1800×1800
Mold stroke
MM
1100-3300
Size of machine
L×W×H
11×7×7
Weight of machine
TON
65

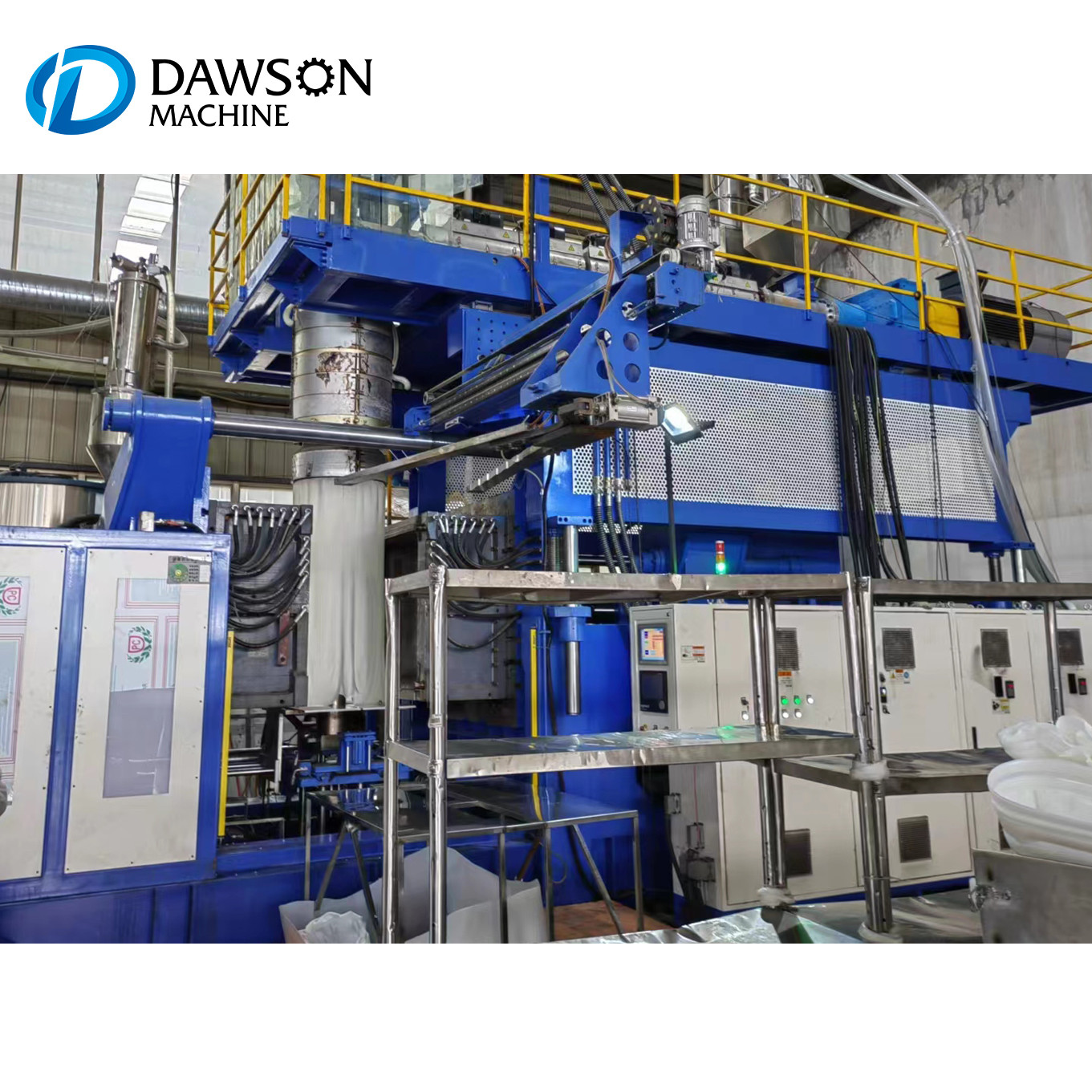

HDPE Extrusion Blow Molding Making Machine 1000L IBC Tank 500KG / H 2




DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!


DAWSON will be your reliable friend in China, and we will always do our best to give you max support!



Customer Photos
Our professional blow molding machine workshop...
High Quality Blow Molding mould

In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.
We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.

- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat treatment to HRC62
- Double neck design available to change in future as a spare part necking
- All mould can be made auto-deflashing or manual deflashing as per customer requests
- Perfect mould cooling design to ensure the best moulding preformace
- Available to provide 2D & 3D product drawing for customers
- Available to send samples to customer for approval the product quality
- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU,

HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...

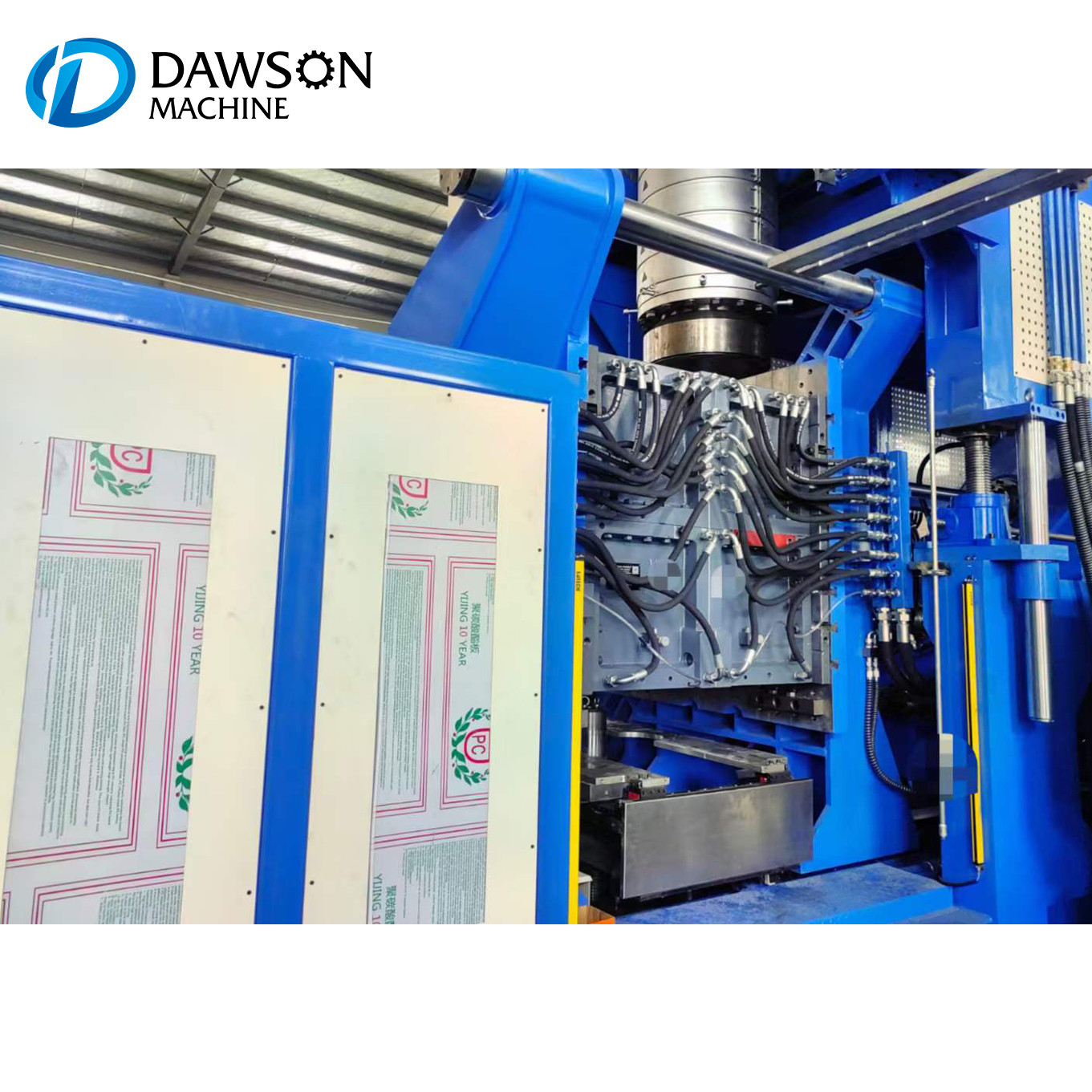

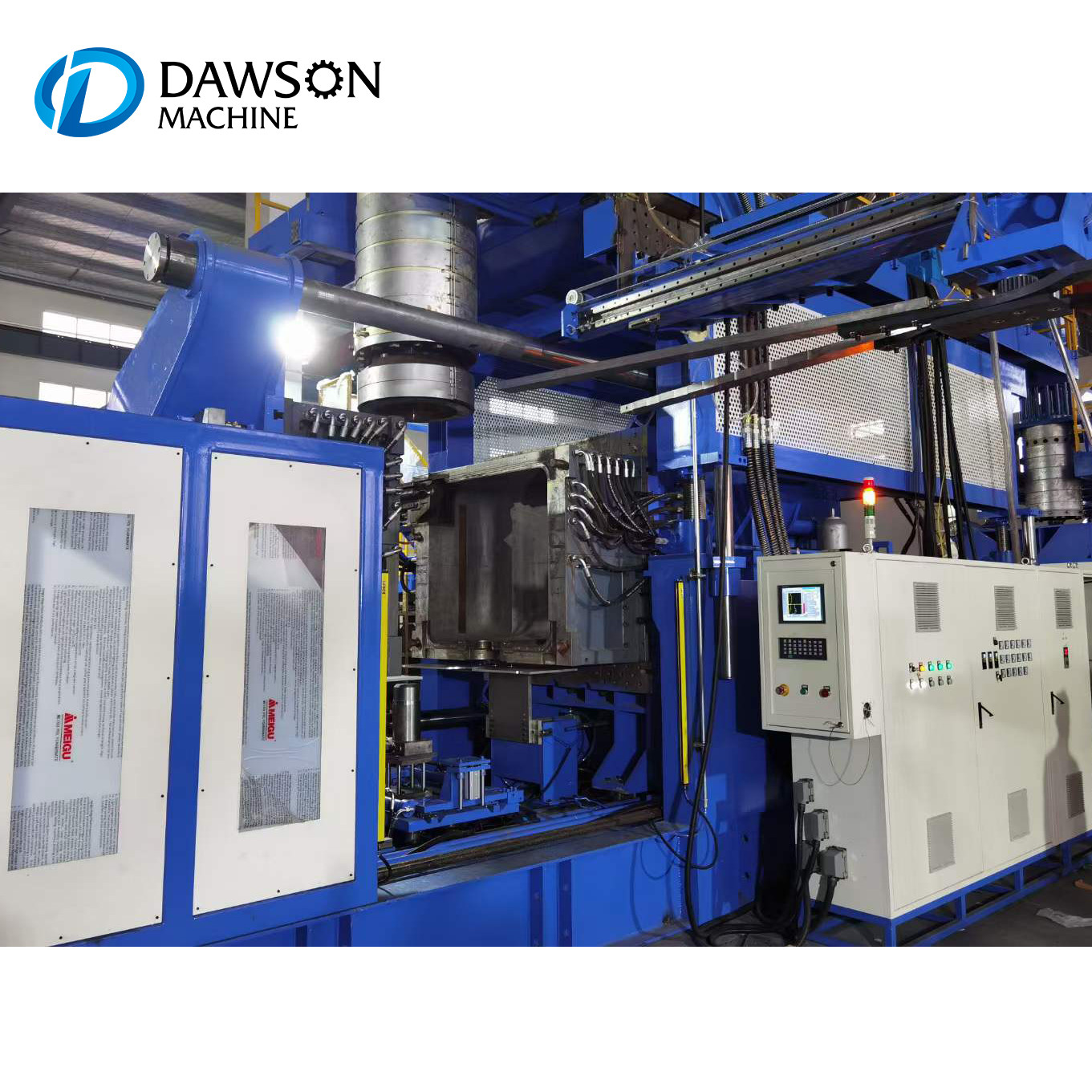

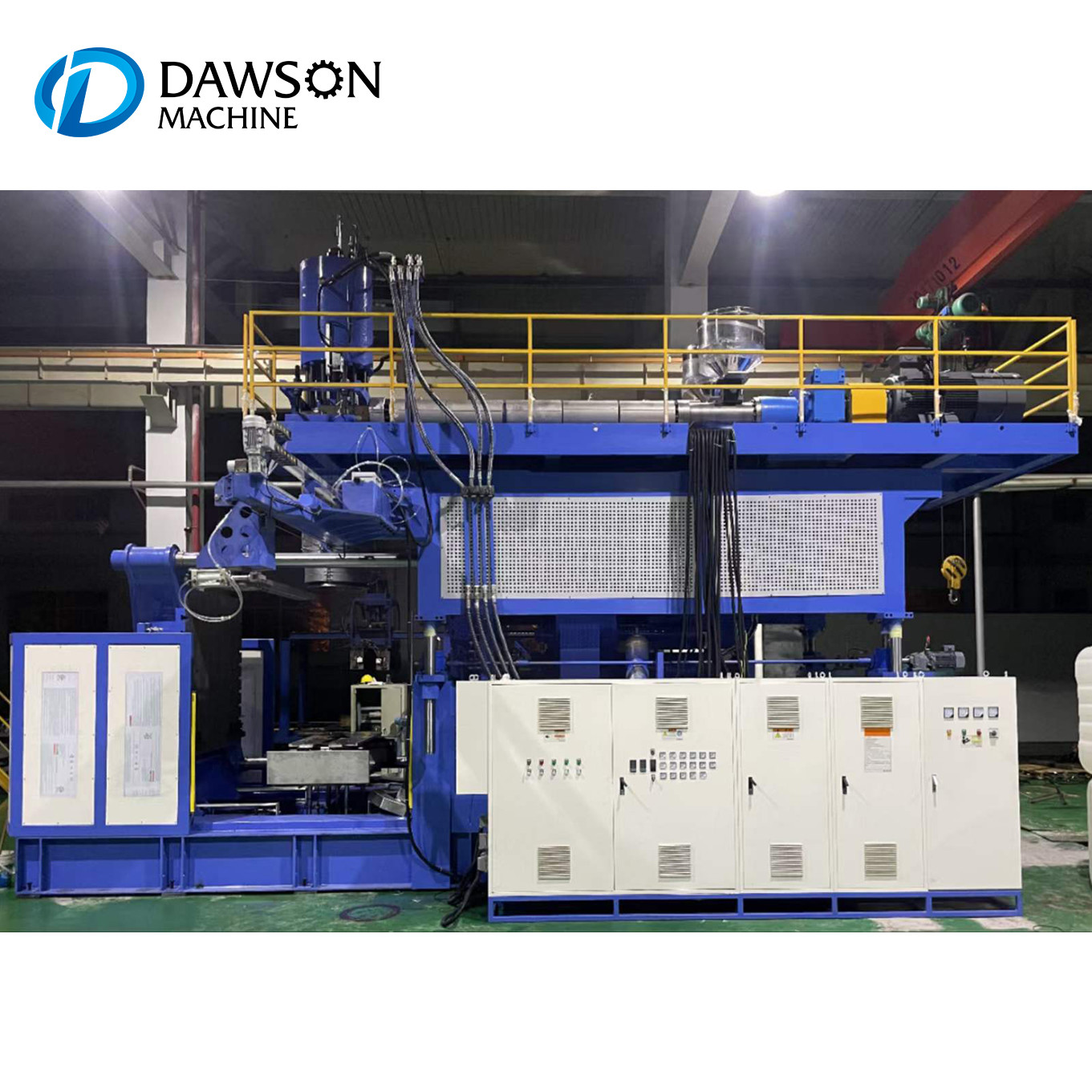

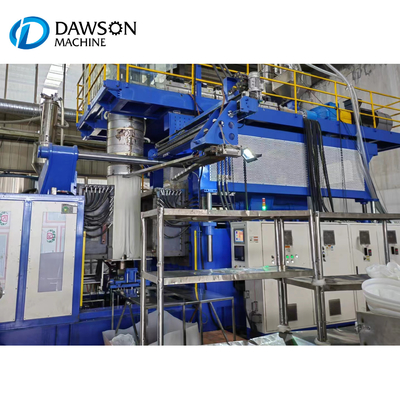

HDPE Extrusion Blow Molding Making Machine 1000L IBC Tank 500KG / H 3 HDPE Extrusion Blow Molding Making Machine 1000L IBC Tank 500KG / H 4 HDPE Extrusion Blow Molding Making Machine 1000L IBC Tank 500KG / H 5 HDPE Extrusion Blow Molding Making Machine 1000L IBC Tank 500KG / H 6
HDPE Extrusion Blow Molding Making Machine 1000L IBC Tank 500KG / H 7 HDPE Extrusion Blow Molding Making Machine 1000L IBC Tank 500KG / H 8 HDPE Extrusion Blow Molding Making Machine 1000L IBC Tank 500KG / H 9 HDPE Extrusion Blow Molding Making Machine 1000L IBC Tank 500KG / H 10





FAQ

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
