Chemical Tank 1000L IBC Container HDPE Blow Moulding Water Tank Extrusion Blow Molding Machine
DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....
DAWSON MACHINERY & MOULD GROUP

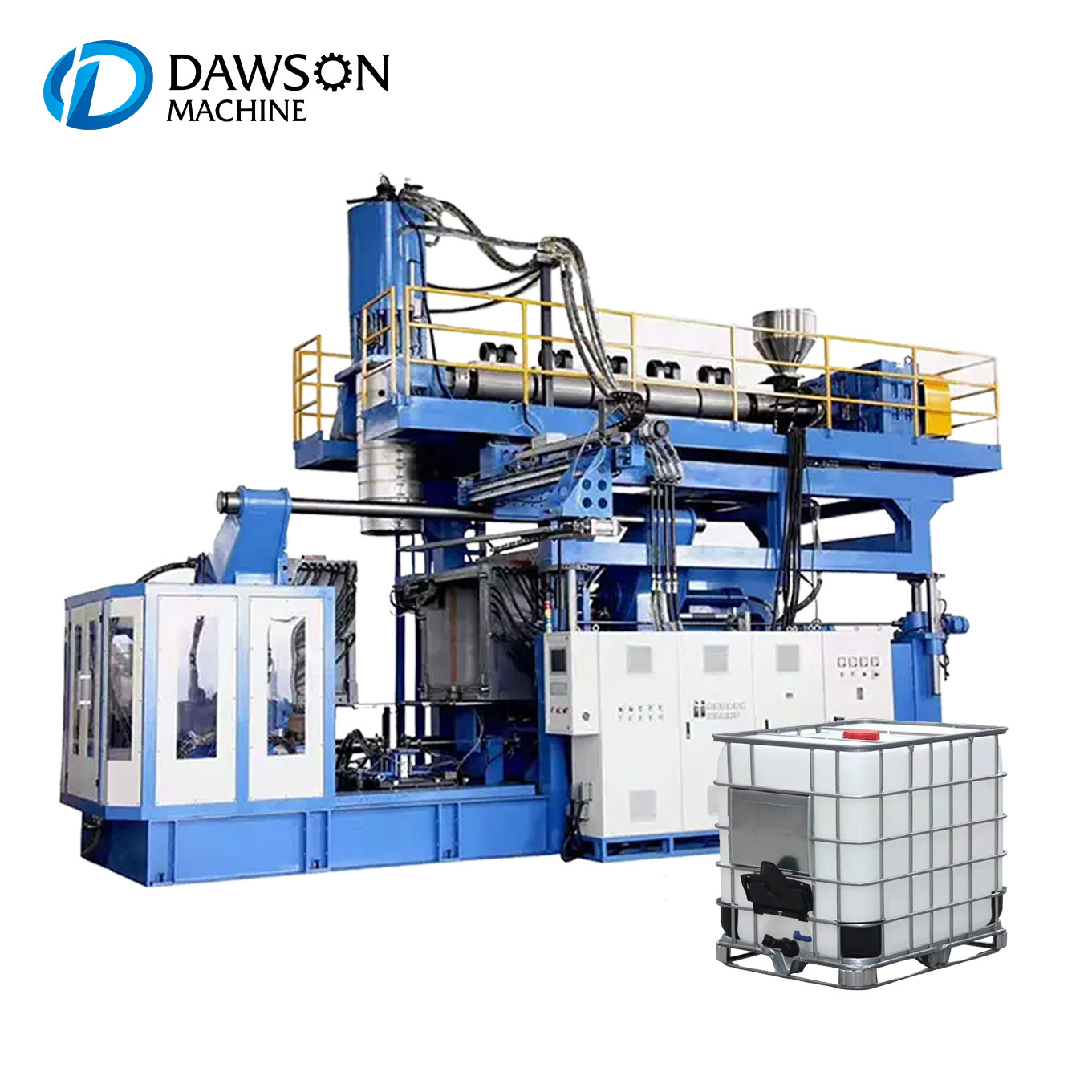

Extrusion Blow Molding Machine DMB-1000L
DMB-1000L extrusion blow molding machine is suitable for producing 500-1000L IBC Tanks. Equipped with special designed screw suitable for UHMWPE material, with uniform plastication, and no temperature rise, which shorten the IBC tank forming cycle. It’s production capacity can reach over 500pcs/day.
Manufacturing IBC tanks, changing color is a common procedure, using our special designed die head, you can shorten the color changing time, save power energy. One IBC tank use 8kw electricity.
The whole blow molding machine is equipped with bilingual operation panel and automatic configuration from world famous brands to realize the advantages of simple operation and high automation.
|
|
|
|
|
|
Single Station Accumulator Head
|
|
|
|
Name
|
Units
|
DMB-1000L
|
|
Max.product volume
|
L
|
1200L
|
|
Screw diameter
|
MM
|
120
|
|
Screw drive power
|
KW
|
132
|
|
Output of HDPE
|
KG/H
|
500-550
|
|
Oil pump drive power
|
KW
|
42
|
|
Clamping force
|
KN
|
2200
|
|
Max.size of mold
|
MM
|
1700× 1800
|
|
Template size
|
MM
|
1800×1800
|
|
Mold stroke
|
MM
|
1100-3300
|
|
Size of machine
|
L×W×H
|
11×7×7
|
|
Weight of machine
|
TON
|
65
|
SR
|
DESCRIPTION OF PARTS
|
BRAND
|
ORIGIN
|
1
|
PLC
|
SIEMENS
|
GERMANY
|
2
|
TOUCH SCREEN
|
SIEMENS
|
GERMANY
|
3
|
INVERTER
|
SIEMENS
|
GERMANY
|
4
|
SCREW MOTOR
|
SIEMENS
|
GERMANY
|
5
|
AIR SWITCH
|
SIEMENS
|
GERMANY
|
6
|
CONTACTOR
|
SIEMENS
|
GERMANY
|
7
|
SSR (SOLID STATE RELAY)
|
CARLO GAWAZZI
|
SWIZERLAND
|
8
|
WALL THICKNESS CONTROLLER
|
MOOG
|
USA
|
9
|
SERVO VALVE
|
MOOG
|
JAPAN
|
10
|
HYDRAULIC VALVE
|
YUKEN
|
JAPAN
|
11
|
SOLENOID VALVE
|
YUKEN
|
JAPAN
|
12
|
PNEUMATIC VALVE
|
AIRTAC
|
TAIWAN
|
DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!
DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
Our professional blow molding machine workshop...
High Quality Blow Molding mould
It needs to be cooled fast and uniformly when the IBC tank is shaped.Because the IBC is large volume and wide single area.In order to ensure that the product will not be deformed after thermal forming. There is a higher requirements on mold design and use.
First of all, the mold should be cooled fast and the heat transfer on the cooling surface should be uniform. Aluminium was the best choice;The cutting material is high quality die steel, equipped with cooling water channel. Longer service life, can guarantee more than two million times. The advantage:
- The embedded water pipes of aluminum castings are evenly distributed, with large waterway diameter to guarantee cooling effect. Cutting edge design has cooling channel, to ensure good cooling effect of mold.
- Take cooling water with the needle to ensure good cooling at the outlet. The liquid inlet is inlaid with an independent cooling channel to ensure a good cooling effect of the thread at the inlet.
- The knife edge plate which inlaid around the slide block is unique in design, which reduces the joint marks on the products and makes the products beautiful in appearance.
|
|
|
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.
Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.
Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
|
