Preform Plastic Pet Bottle Injection Molding Machines Big Clamping 48mm

1 set
MOQ
US $37000-39800/ Set
Price
Preform Plastic Pet Bottle Injection Molding Machines Big Clamping 48mm
Features Gallery Product Description Request A Quote
Features
Specifications
Certification: CE
Product Name: Injection Molding Machine
Mould Lifespan: > 1,000,000 Cycles
Voltage: As Customer Required
Used For: Tube Connector, Preform, Caps, Crates, Toys...
Oil Tank Capacity: 300 L
High Light:

Preform Pet Bottle Injection Molding Machines

,

48mm Pet Bottle Injection Molding Machines

,

Big Clamping Pet Injection Molding Machines

Basic Infomation
Place of Origin: CHINA
Brand Name: DAWSON
Model Number: BST-2300A
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 55-65working days
Payment Terms: L/C, T/T
Supply Ability: 5 sets / month
Product Description

China popular complete plastic pet bottle preform making machine big clamping injection molding machines



DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***


Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

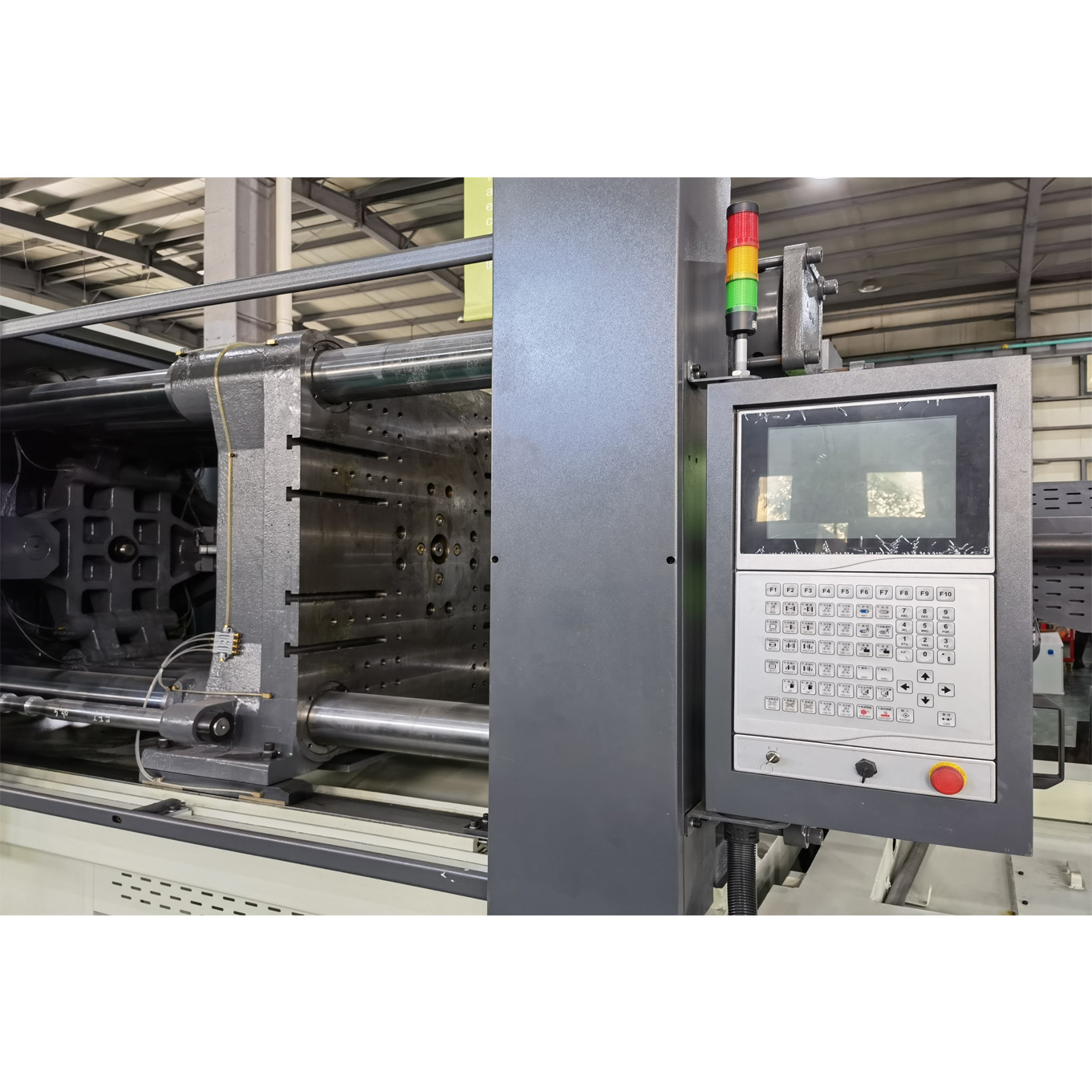

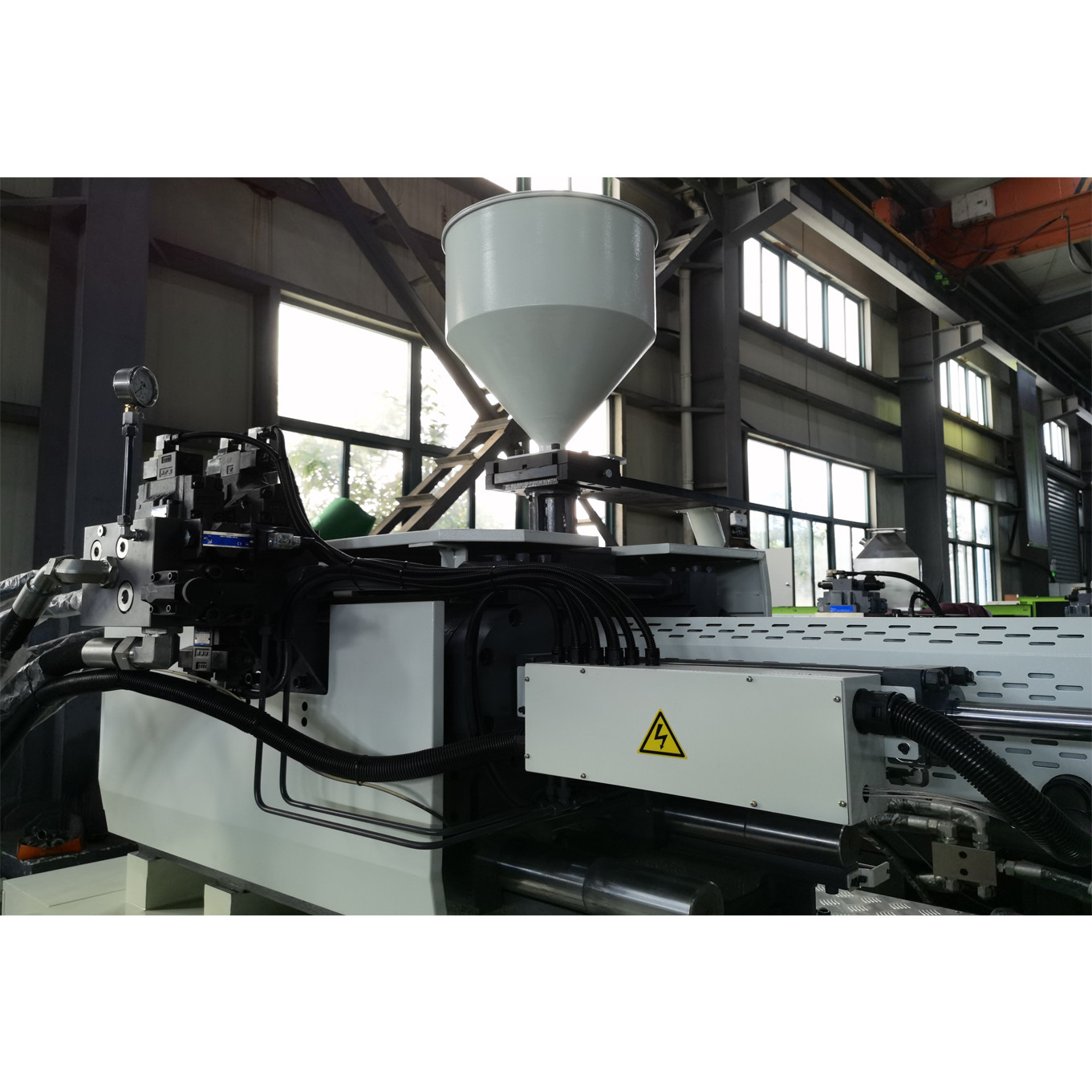

Preform Plastic Pet Bottle Injection Molding Machines Big Clamping 48mm 0

Preform Plastic Pet Bottle Injection Molding Machines Big Clamping 48mm 1

Products Description



DAWSON MACHINERY & MOULD GROUP
Injection molding machines are also known as injection molding machines or injection machines. It is the main molding equipment for thermoplastic or thermosetting plastics using plastic molding dies to make plastic products of various shapes. Divided into vertical, horizontal, all-electric. The injection molding machine heats the plastic and applies a high pressure to the molten plastic to eject it to fill the mold cavity.

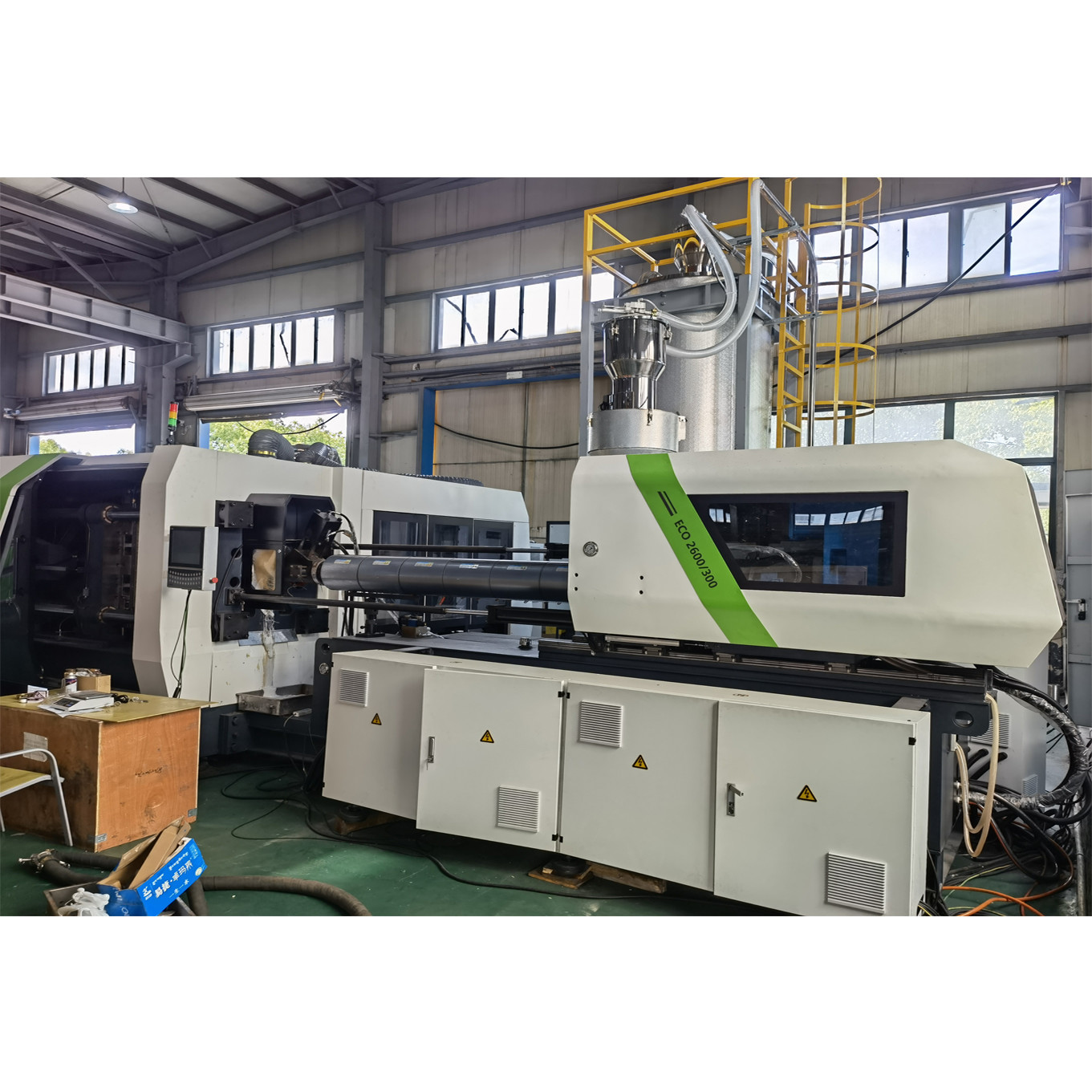

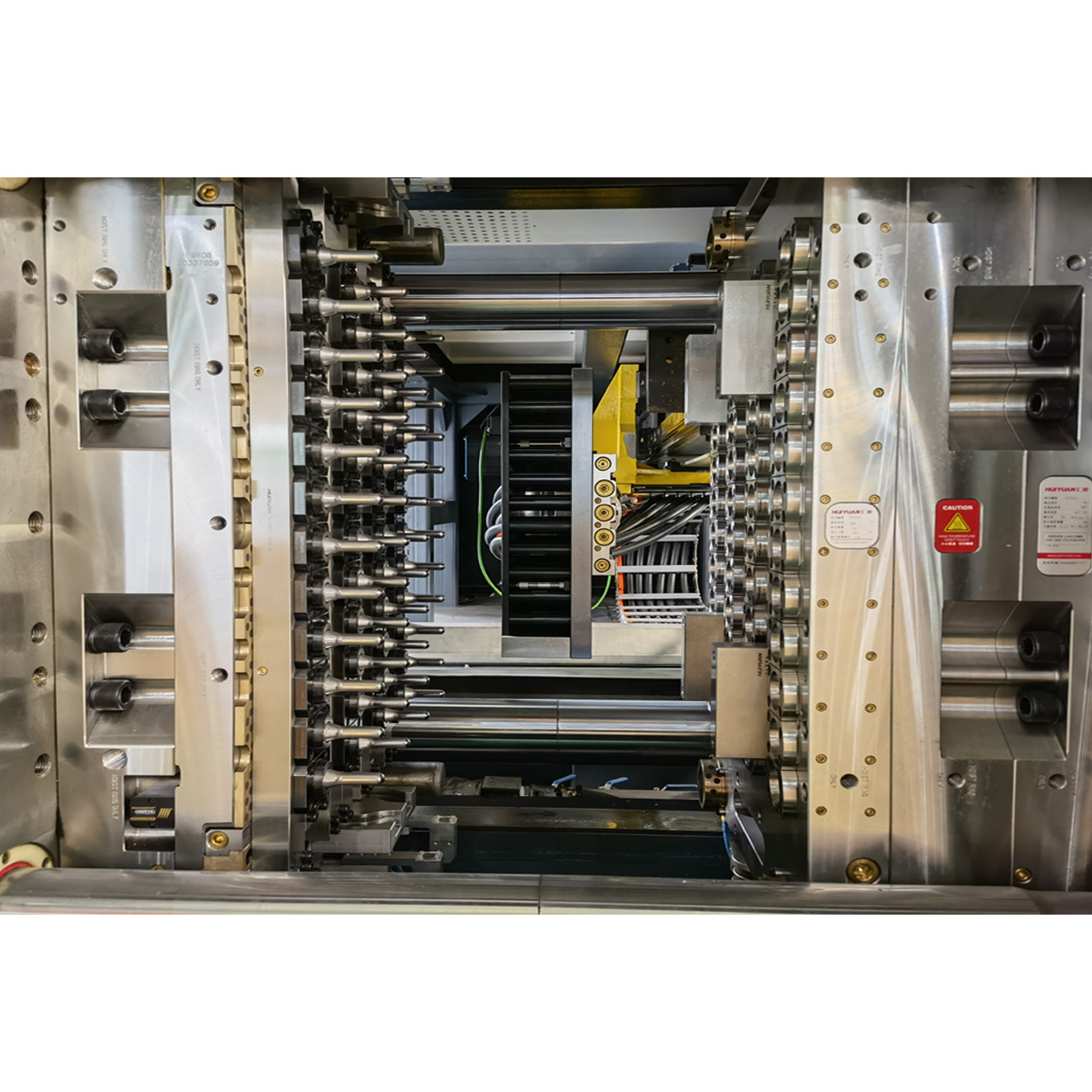

Preform Plastic Pet Bottle Injection Molding Machines Big Clamping 48mm 2 Preform Plastic Pet Bottle Injection Molding Machines Big Clamping 48mm 3


 Our injection Molding Machine uses proportional pressure and flow control, the pressure and the speed can be adjusted, stable movement curve and gentle shock,the computer is imported from Industry family.The LCD displaying screen with high clarity has Chinese and English language to use.Close-loop PID temperature control with the advantage of high precision.The operating table of the injection moulding machine have two safety, one is machine safety, another is electrical safety, that ensures the operators's safety.

Technical Parameters

Parameters
BST-1800
BST-2050
BST-2300
BST-2600
Screw diameter
mm
48
48
52
56
Theoretical Shot weight
CM3
420
525
658
770
Shot weight
gram
378
472
592
690
Clamping force
KN



1080
2050
2300
2600
Toggle stroke
mm
440
445
480
530
Ejector stroke
mm
155
155
155
160
Space between tie bars
mm
480*460
490*464
510*510
554*554
Mould thickness
mm
180-470
190-470
200-510
200-550
Machine size
m
5.3*1.6*1.75
5.4*1.6*1.75
5.7*1.8*2.0
6.1*1.7*1.8
Machine weight
ton
5.5
6
6.5
8





 Standard Feature



Injection Molding Machine Standard Feature
CLAMPING UNIT
1. New type 5-point toggle device with the advantage of stable movement curve and gentle shock
2. High-quality mold platen with enough intensity to ensure no out of shape if high-pressure clamping
3. Hard chrome plated high tensile strength tie bars made of superior alloy with a good wear and corrosion resistance
ability
4. Wear-resistant guide for moving platen
5. Transducer control clamping stroke
6. Many step controls for speed and pressure of clamping and opening
7. Ejection device offer dwell, single, more, vibration function
8. Differential high-speed clamping
9. Low pressure mold protection function
10. Hydraulic mold height adjustment derived by gear with rough and fine operation
11. Mechanical and electrical dual safety interlock
12. Automatic centralized lubrication system with far pressure detector
HYDRAULIC UNIT
1. Proportional pressure and flow control with the advantage of fine adjustment and high precision
2. Know-how manifold design, compact, reasonable and fast respond
3. Imported world famous hydraulic valves
4. Imported world famous hydraulic sealing rings
5. Import technology hydraulic hose and fittings
6. Low noise hydraulic system
7. Oil tank with inner stainless-steel container
8. Precision oil filter
9. Oil cooler
CONTROL UNIT
1. 1. The computer is imported from Industry family. The LCD displaying screen with high clarity has Chinese and English
language to display
2. World famous electrical components
3. Close-loop PID temperature control with the advantage of high precision.
4. Deviation preset between high and low temperature. And break control for temperature sensor.
5. Alarming system in case of cold start and no material in hopper
6. Transducer control the injection and opening stroke to accuracy of ±0.05mm
7. 99 steps speed control for increasing and reducing to suit for different technology demands
8. Self-diagnostic and trouble alarm function
9. Parameters lock function to avoid being changed
10. 100 sets of production parameters can be stored into the computer memorial software
11. Machine can record the quantity of products and automatically stop if up to the required quantity.
12. Emergency stop device
13. Alarm lamp
SPARE PARTS
█ Operation Manual █ Normal hopper
█ Level pad █ Heater band █ Mold clip



 Details Images

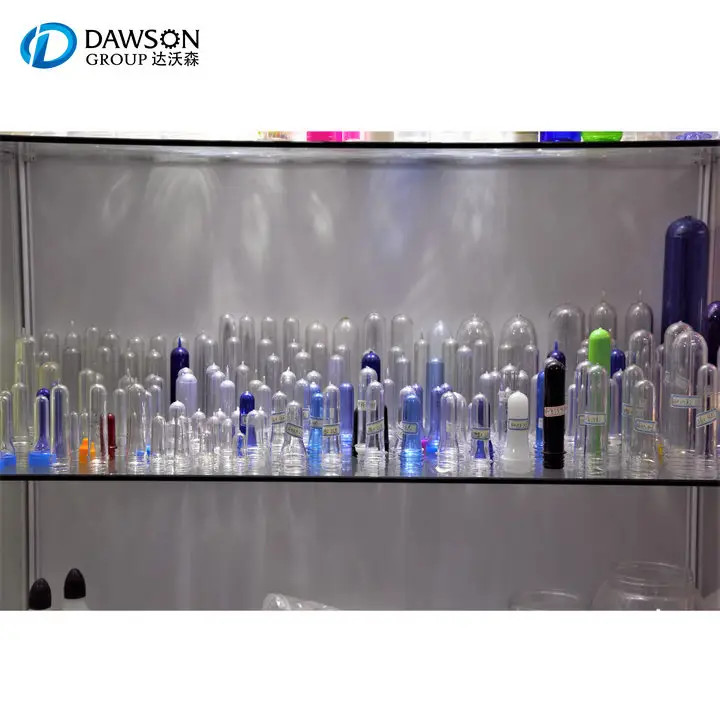

Preform Plastic Pet Bottle Injection Molding Machines Big Clamping 48mm 4

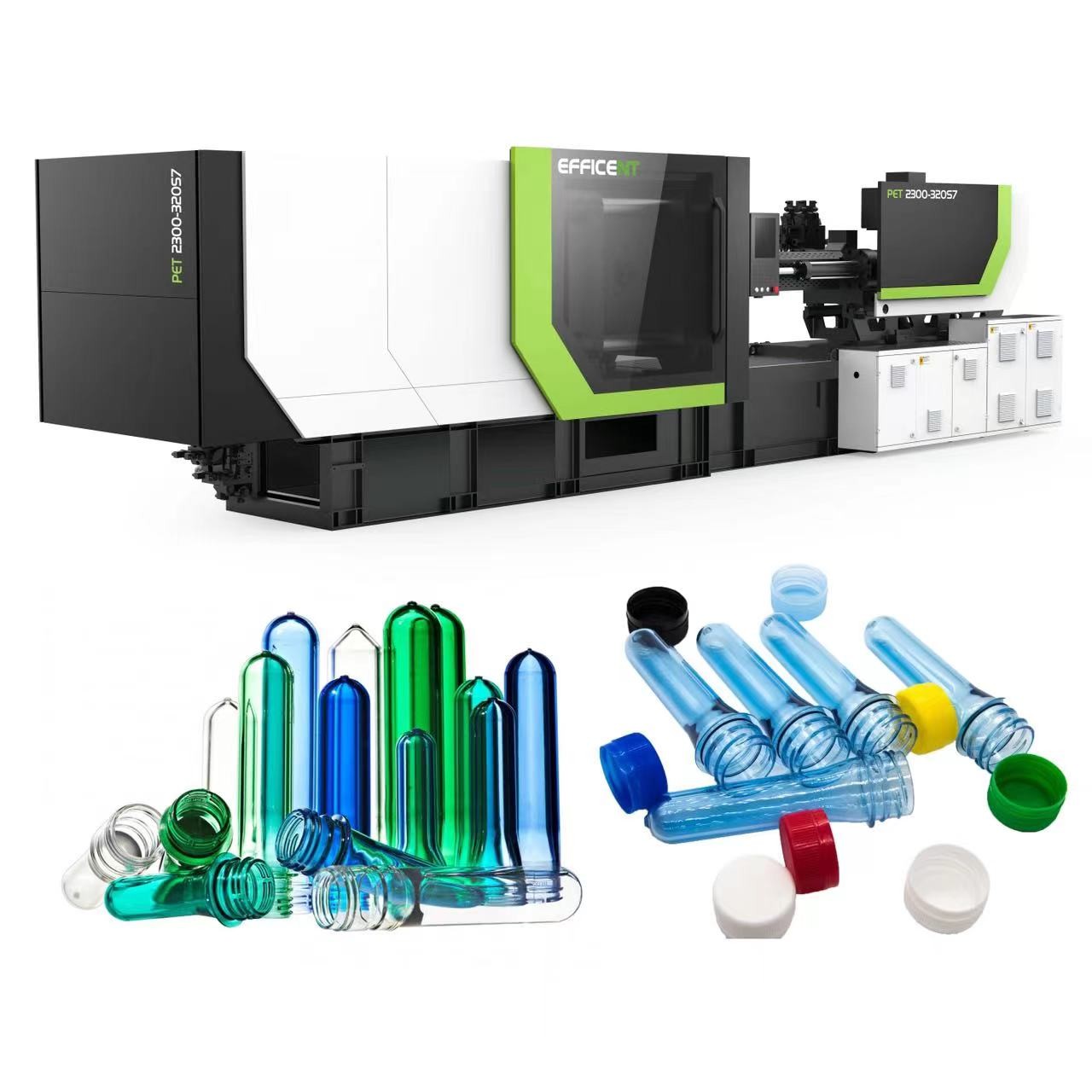

Preform Plastic Pet Bottle Injection Molding Machines Big Clamping 48mm 5

Company Profile



DAWSON MACHINERY & MOULD GROUP


Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

We have our own service team in

Saudi Arabia, Colombia, Panama, South Africa ...
Preform Plastic Pet Bottle Injection Molding Machines Big Clamping 48mm 6
DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
injection molding machine, blow molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!


DAWSON will be your reliable friend in China, and we will always do our best to give you max support!



Customer Photos



We committed to providing customers with plastic machinery & equipment production lines beyond expectations.

Customer satisfaction is our eternal pursuit...
Preform Plastic Pet Bottle Injection Molding Machines Big Clamping 48mm 7 Preform Plastic Pet Bottle Injection Molding Machines Big Clamping 48mm 8 Preform Plastic Pet Bottle Injection Molding Machines Big Clamping 48mm 9
Preform Plastic Pet Bottle Injection Molding Machines Big Clamping 48mm 10 Preform Plastic Pet Bottle Injection Molding Machines Big Clamping 48mm 11 Preform Plastic Pet Bottle Injection Molding Machines Big Clamping 48mm 12
Preform Plastic Pet Bottle Injection Molding Machines Big Clamping 48mm 13 Preform Plastic Pet Bottle Injection Molding Machines Big Clamping 48mm 14 Preform Plastic Pet Bottle Injection Molding Machines Big Clamping 48mm 15 Preform Plastic Pet Bottle Injection Molding Machines Big Clamping 48mm 16
Preform Plastic Pet Bottle Injection Molding Machines Big Clamping 48mm 17 Preform Plastic Pet Bottle Injection Molding Machines Big Clamping 48mm 18 Preform Plastic Pet Bottle Injection Molding Machines Big Clamping 48mm 19 Preform Plastic Pet Bottle Injection Molding Machines Big Clamping 48mm 20

Preform Plastic Pet Bottle Injection Molding Machines Big Clamping 48mm 21

Preform Plastic Pet Bottle Injection Molding Machines Big Clamping 48mm 22

FAQ

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
