High Quality Blow Molding mould
In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.
We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.
- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat
treatment to HRC62
- Double neck design available to change in future as a spare part necking
- All mould can be made auto-deflashing or manual deflashing as per customer requests
- Perfect mould cooling design to ensure the best moulding preformace
- Available to provide 2D & 3D product drawing for customers
- Available to send samples to customer for approval the product quality
- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...

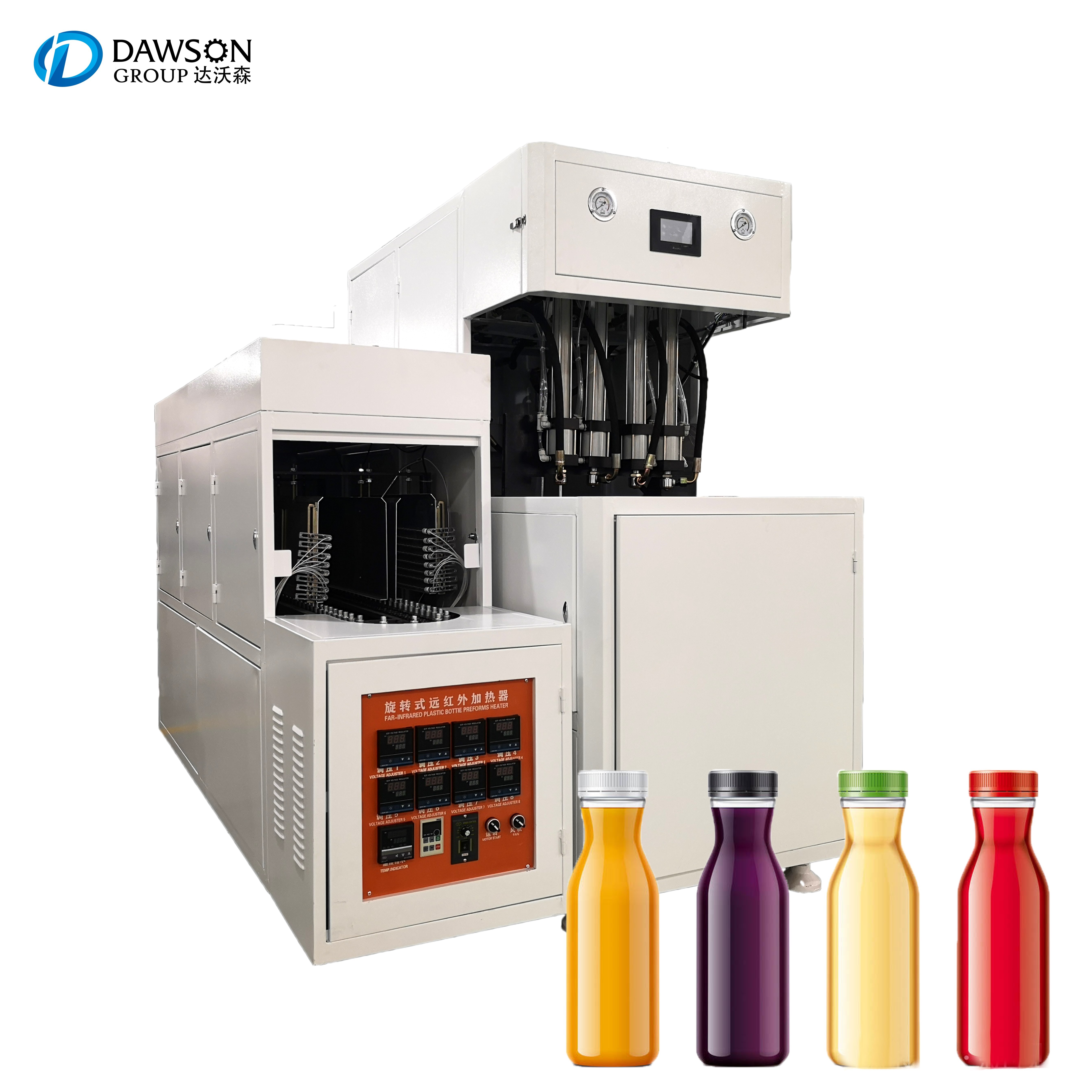

Semi Automatic PET Bottle Blow Molding Machine
This PET bottle making blow moulding machine is controlled by microcomputer. The plastic
blowing machine can control the technical parameters more accurately.With the upper and lower system,emergency stop system,independent counter device,count the output accurately, with infrared lamp heating device,penetrating power, preform rotation heating, heating evenly and quickly.
PET semi-automatic plastic bottle blowing machine is suitable for blowing plastic PET bottles such as carbonated beverage bottles,mineral water bottles, cosmetic bottles and hot filling bottles etc.
|
Main machine (blower + oven)
|
|
YC-2L-4
|
|
Product Spec
|
Max. product volume(L/cav)
|
2L
|
|
Max. preform neck size(mm)
|
100
|
|
Max. product diameter(mm)
|
180
|
|
Max. product height (mm)
|
300
|
|
Cavities
|
4
|
|
Blow molding part
|
Die force (KN)
|
100
|
|
Die stroke (mm)
|
270
|
|
Max. mould size(mm)
|
390*345
|
|
Mould thickness
|
Adjustable
|
|
Mould spacing(mm)
|
Adjustable
|
|
Max. pulling stroke(mm)
|
400
|
|
Operation pressure(Mpa)
|
0.8-1.0
|
|
Operation air pressure consumption
(1tr/min)
|
200
|
|
Blow pressure(Mpa)
|
1.2-2.8
|
|
Blow air pressure consumption (1tr/min)
|
300
|
|
Output(pcs/h)
|
2600-2800(500ml bottle)
|
|
Machine size(LxWxH)(m)
|
1.46*0.58*1.8
|
|
Machine weight(KG)
|
650
|
|
Oven
|
Temperature grade(rate)
|
8
|
|
Heating time(S)
|
90-200
|
|
Voltage(V)
|
220 or as your request
|
|
Frequency(HZ)
|
50/60
|
|
Total power(KW)
|
16
|
|
Oven Size (LxWxH)
|
1.35*0.55*1.15
|
|
Oven weight (KG)
|
300
|
Q Series PET Bottle Blowing Machine Description
PET linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.
Semi-auto blow molding machine
Semi-automatic bottle blowing machine is controlled by microcomputer,control the technical parameters more accurately.PET bottle blowing machine is simple and safe to operate.It only requires one person and does not require special training. PET blow molding machine is suitable for blow molding of plastic packaging bottles such as carbonated beverage bottles, mineral water bottles, hot filling bottles and cosmetic bottles. It is suitable for the production of small beverage
companies and daily chemical product companies.
infrared lamp heating
Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable;
heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic
temperature-removal device to ensure the constant temperature of oven.

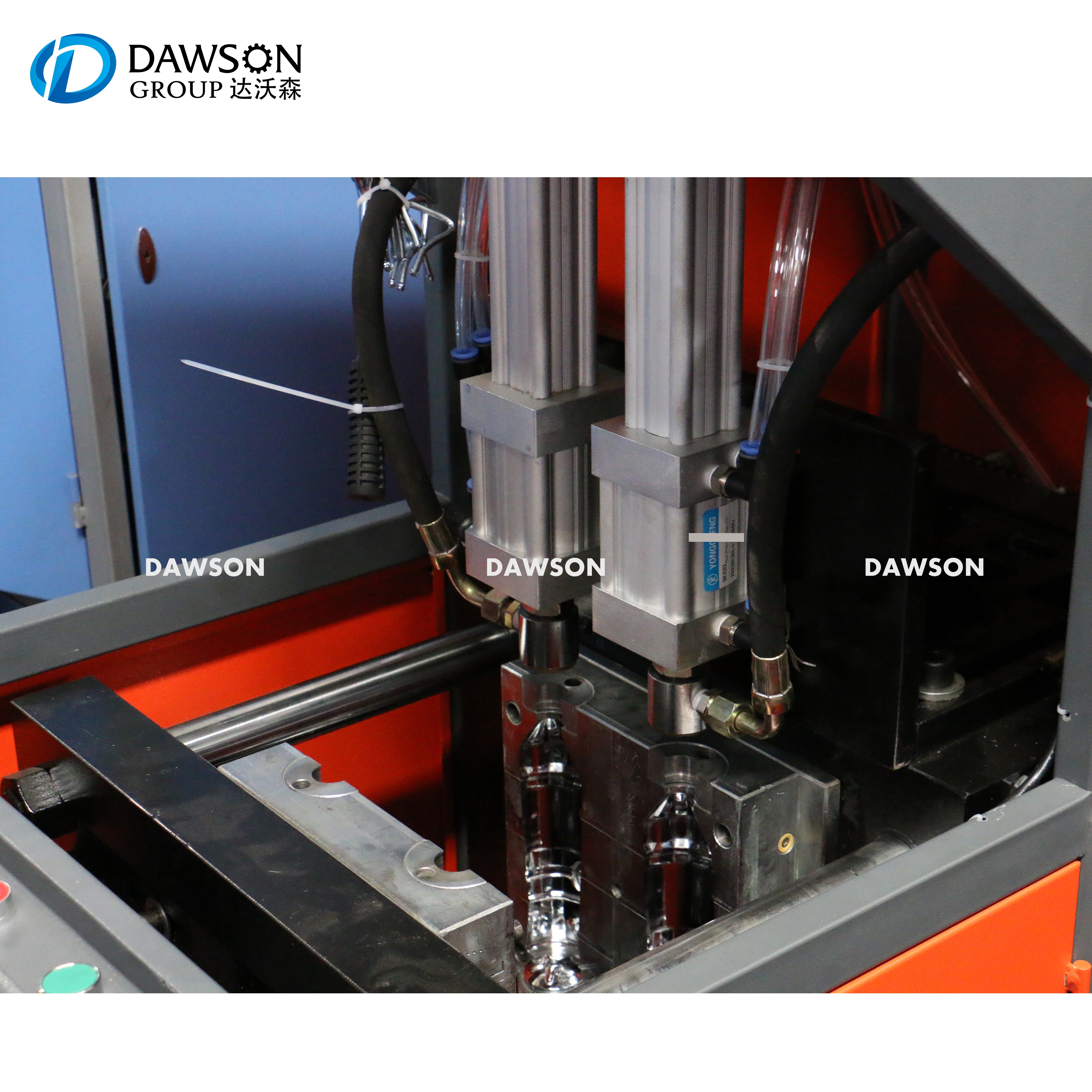

Specially designed high rigidity composite mold structure
Specially designed high rigidity composite mold structure, wide applicability, suitable for various types of mold thickness, easy
to adjust and save energy, less air demand, precision polished spindle, equipped with photoelectric sensor, low noise,rapid
response, long working hours , stable performance,ensure stable operation.
