Semi Automatic PET Bottle Blowing Moulding Machine Round Shampoo 50HZ

1 piece
MOQ
USD 4000 - 6000/piece
Price
Semi Automatic PET Bottle Blowing Moulding Machine Round Shampoo 50HZ
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Automatic: Yes
Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Voltage: 380V/3PH/50HZ
Power(w): As Order
Blow Moulding Type: Extrusion Blow Moulding
Application: Bottle
Plastic Processed: PP,PE
Name: Automatic Blowing Machine
Product Name: Automatic Blowing Molding Machine
High Light:

Semi Automatic Bottle Blowing Moulding Machine

,

PET Shampoo Bottles Blowing Moulding Machine

,

50HZ Bottles Blowing Moulding Machine

Basic Infomation
Place of Origin: CHINE
Brand Name: DAWSON
Certification: CE
Model Number: YC-2L
Payment & Shipping Terms
Packaging Details: wooden
Delivery Time: 45-65 days
Payment Terms: L/C, T/T
Supply Ability: 25 pieces per month
Product Description

DAWSON MACHINERY & MOULD GROUP

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....


Semi Automatic PET Bottle Blow Molding Machine

This PET bottle making blow moulding machine is controlled by microcomputer. The plastic
blowing machine can control the technical parameters more accurately.With the upper and lower system,emergency stop system,independent counter device,count the output accurately, w
ith infrared lamp heating device,penetrating power, preform rotation heating, heating evenly and quickly.

PET semi-automatic plastic bottle blowing machine is suitable for blowing plastic PET bottles such as carbonated beverage bottles,mineral water bottles, cosmetic bottles and hot filling bottles etc.

Technical Parameters
Main machine (blower + oven)
Item
YC-2L-4
Product Spec
Max. product volume(L/cav)
2L
Max. preform neck size(mm)
100
Max. product diameter(mm)
180
Max. product height (mm)
300
Cavities
4
Blow molding part
Die force (KN)
100
Die stroke (mm)
270
Max. mould size(mm)
390*345
Mould thickness
Adjustable
Mould spacing(mm)
Adjustable
Max. pulling stroke(mm)
400
Operation pressure(Mpa)
0.8-1.0
Operation air pressure consumption
(1tr/min)
200
Blow pressure(Mpa)
1.2-2.8
Blow air pressure consumption (1tr/min)
300
Output(pcs/h)
2600-2800(500ml bottle)
Machine size(LxWxH)(m)
1.46*0.58*1.8
Machine weight(KG)
650
Oven
Temperature grade(rate)
8
Heating time(S)
90-200
Voltage(V)
220 or as your request
Frequency(HZ)
50/60
Total power(KW)
16
Oven Size (LxWxH)
1.35*0.55*1.15
Oven weight (KG)
300
Machine Advantages
Q Series PET Bottle Blowing Machine Description

PET linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.

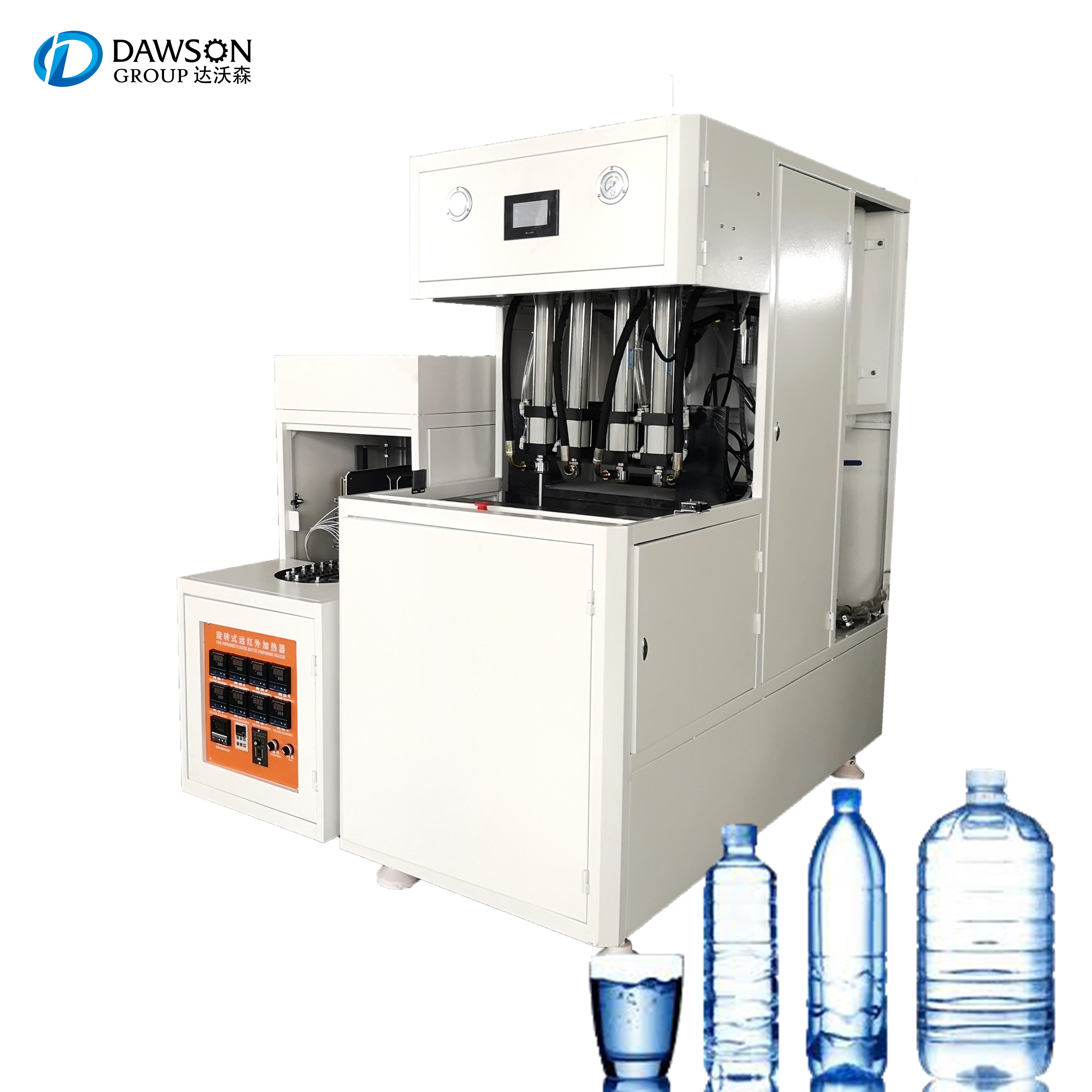

Semi Automatic PET Bottle Blowing Moulding Machine Round Shampoo 50HZ 0
Semi-auto blow molding machine

Semi-automatic bottle blowing machine is controlled by microcomputer,control the technical parameters more accurately.PET bottle blowing machine is simple and safe to operate.It only requires one person and does not require special training. PET blow molding machine is suitable for blow molding of plastic packaging bottles such as carbonated beverage bottles, mineral water bottles, hot filling bottles and cosmetic bottles. It is suitable for the production of small beverage
companies and daily chemical product companies.
infrared lamp heating

Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable;
heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic
temperature-removal device to ensure the constant temperature of oven.

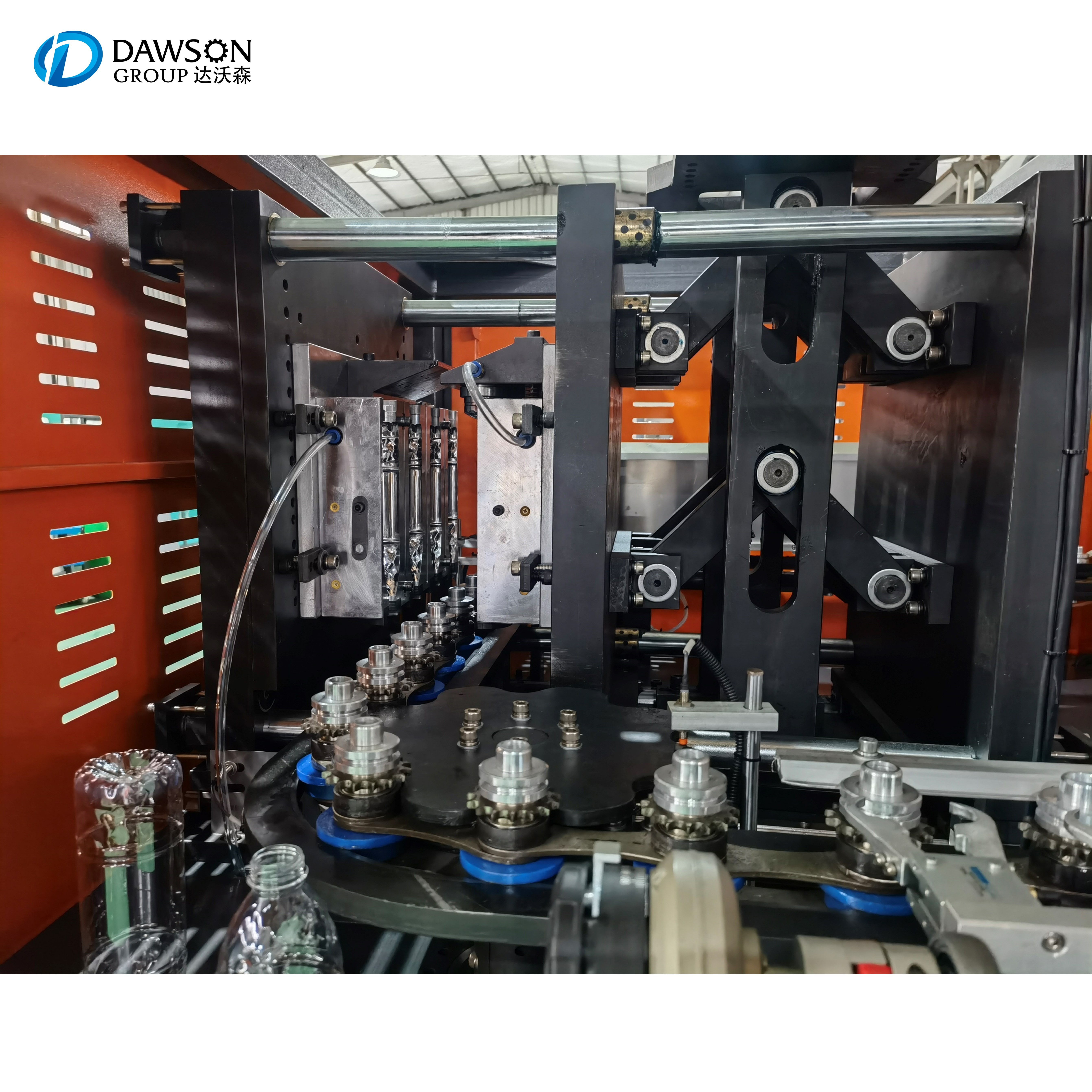

Semi Automatic PET Bottle Blowing Moulding Machine Round Shampoo 50HZ 1

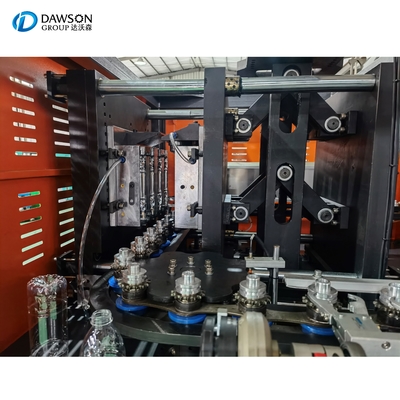

Semi Automatic PET Bottle Blowing Moulding Machine Round Shampoo 50HZ 2
Specially designed high rigidity composite mold structure


Specially designed high rigidity composite mold structure, wide applicability, suitable for various types of mold thickness, easy
to adjust and save energy, less air demand, precision polished spindle, equipped with photoelectric sensor, low noise,rapid
response, long working hours , stable performance,ensure stable operation.

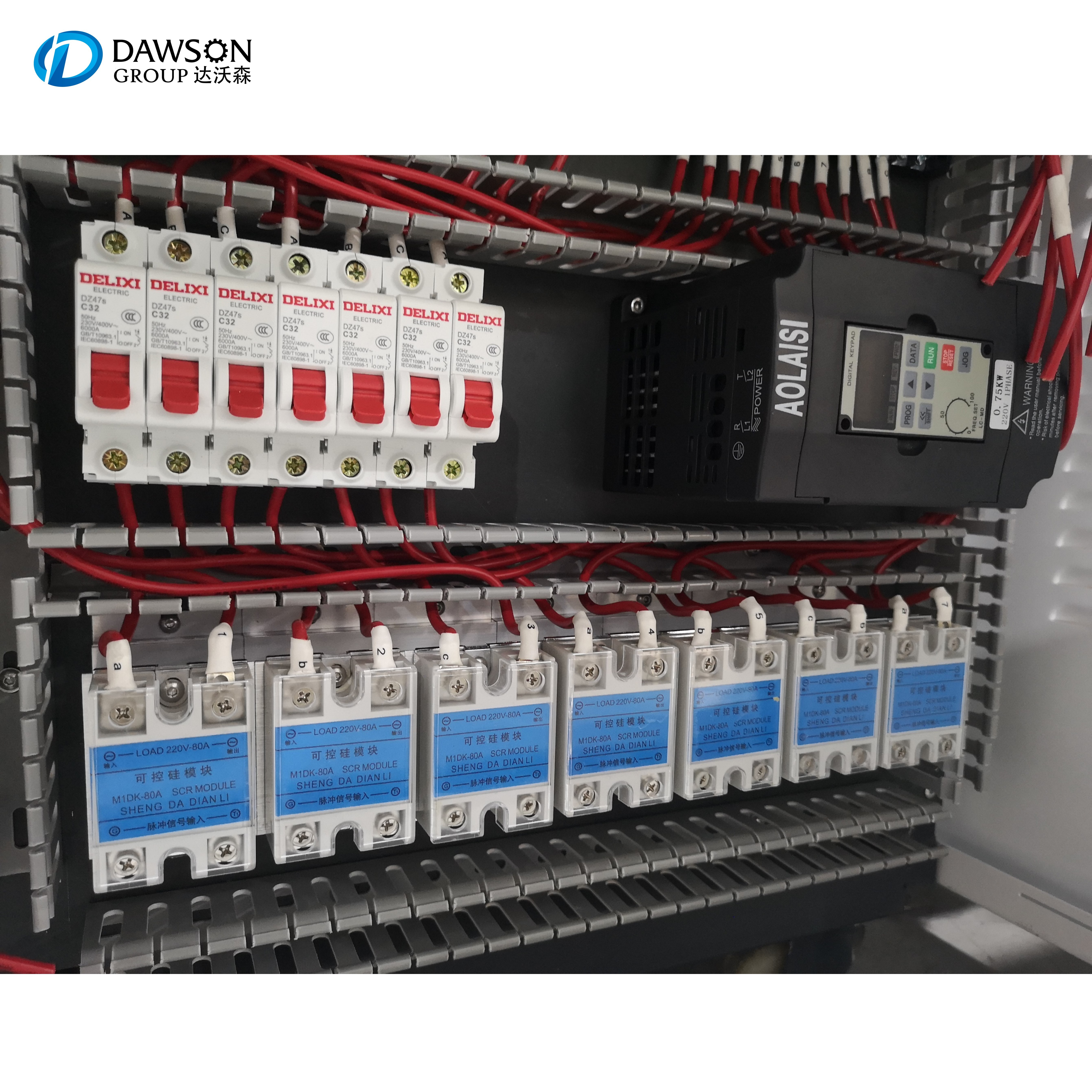

Semi Automatic PET Bottle Blowing Moulding Machine Round Shampoo 50HZ 3
