HDPE 5L Automatic Jerry Can Blow Moulding Machine 180PCS/H Lubricant Bottle
Contact Person : Kenmartin
Phone Number : 008613913143237
WhatsApp : +8613913143237
|Application:||Bottles, Jars, Jerry Cans, Gallons, Containers||Cooling Water Pressure:||0.3 MPa|
|Blowing Pressure:||0.6 MPa||Mold Stroke:||170-520 Mm|
|Clamping Force:||80 Kn||Dry Cycle:||800bph|
|Sutiable:||0-5L Bottle||Suitable Material:||HDPE,PP,PVC,PS,PETG,LDPE|
Hdpe Bottle Plastic Extrusion Blow Molding Machine,
2L Plastic Extrusion Blow Molding Machine,
800bph Extrusion Blow Molding Machine
factory price full automatic 0-2L hdpe bottle plastic extrusion blow molding machine
DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....
Automatic Extrusion Blow Molding Machine ABLB65/75
Automatic Extrusion Blow Molding Machine ABLB65I
ABLB65I full-automatic bottle making machine is specially designed for plastic chemical bottles,medical bottles,lubricant oil bottles,cosmetic bottles,and other small plastic bottles not over than 5Liters.
|Max container capacity||L||5|
|Number of die heads||Set||1|
|Dry cycle time||Second||5|
|Machine dimension (L*W*H)||M||3 *1.9 *2.4|
|Platen opening stroke||mm||200-500|
|Max mould size (W*H)||mm||390*390|
|Platen moving distance||Mm||440|
|Extrusion motor power||KW||15|
|Oil pump motor power||KW||5.5|
|Extrusion heating power||KW||12|
|Head heating power||KW||5.7|
|Cooling Fan power||KW||0.42|
|Average power consumption||KW||21|
|Screw L/D ratio||L/D||24|
|Number of heating zone||Zone||3|
|Extruder heating power||KW||12|
|Extruder driving power||KW||15|
|Cooling Fan No||3|
|Head type||Continuous extrusion head|
|Central distance / mm||-||160||110||85|
|Max die diameter / mm||150||80||50||30|
|Heating zong No||2||3||4||5|
1. Suitable products
0~5L HDPE, PP bottles

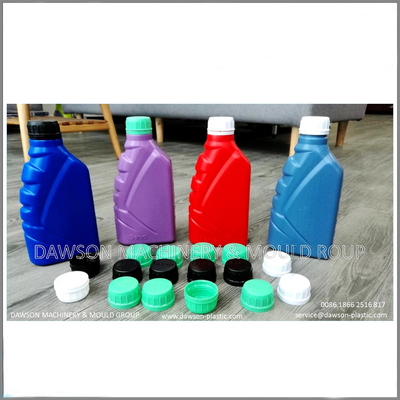

Applications: milk bottles, food pack containers, jars, chemical bottles,
Lubricants bottles, household bottles, detergent/shampoo bottles, oil bottles.
This machine can be double station or single single station, depends on your output demands.
3. Die head
This machine when using single die head, can make 2L to 5L bottles,
, the die head can also be changed to double die head.
Single die head (2~5L)
Double die head (0~2L)
Changing the die head system takes around 1.5~3h, this also included heating time.
4.Mould - Aluminium 7075# inserted beryllium copper
the best blow molding mould material, aluminium mould has good cooling, and beryllium copper is very durable as well.
( we also provide S50c, P20, S136 material for you to choose, mould can be auto-deflashing or without auto-deflashing.)
5. MOOG 100 Point Parison control system is a program to change the parison thickness,As the plastic is extruded from the die head,the programming can:
1. Reduce the plastic used
2. Improved wall thickness distribution
3. Reduce cooling time
Do we have to use MOOG parison system?
No, We also have many customers they do not use MOOG parison control system, as on our machine's die head, we also can manually adjust the die gaps, from which it can also control the thickness and weight of bottles.
MOOG is more precision, and more easy to do the adjust. It also depends on your ending customer demands and markets.
But for some special designed blow molding items & accumulation type blow molding machines, MOOG is indispensable, it has to use MOOG.
Automatic Extrusion Blow Molding Machine ABLB65/75I
u Product: 0~5 L Bottles
u Power supply: 380/220v 50/60 Hz Tri-phase
u Die head number: Single / Double
u Suitable raw material: PE, PP, PVC, PS, PETG
u Output capacity: 140~160 pcs/h (5L) / with single head
300~320 pcs/h (1L) / with double head
