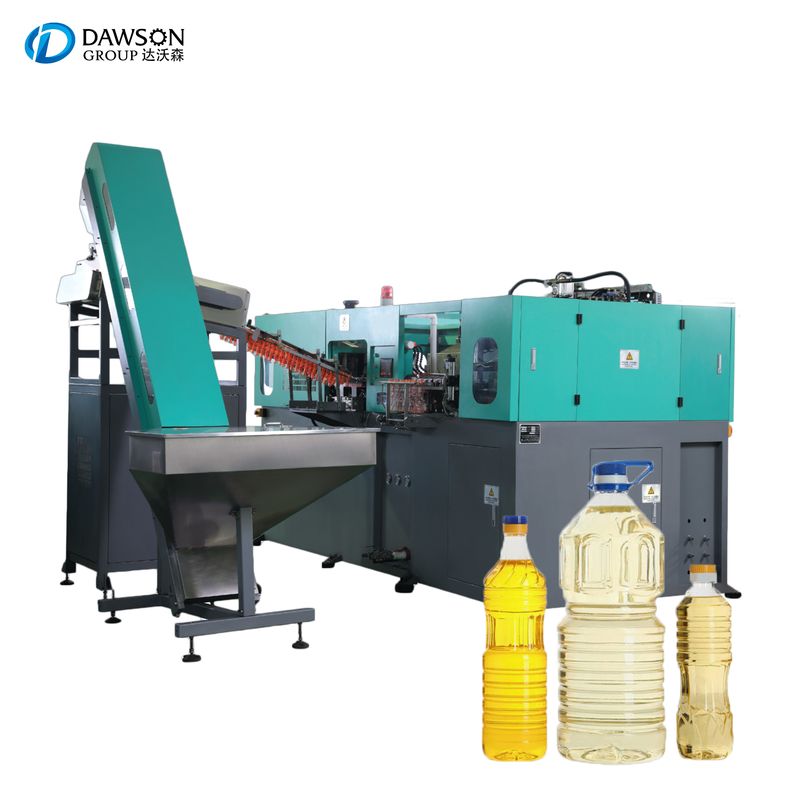

Automatic Jar Bottle Blowing Moulding Machine 750ml Plastic PET

Minimum Order Quantity : 1 piece Price : USD 20000-50000 piece
Packaging Details : wooden Delivery Time : 45-65 days
Payment Terms : L/C, T/T Supply Ability : 25 pieces per month
Place of Origin: CHINE Brand Name: DAWSON
Certification: CE Model Number: Q3000

Detail Information

Condition: New Automatic: Yes
Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
Voltage: 380V/3PH/50HZ Power(w): As Order
Blow Moulding Type: Extrusion Blow Moulding Application: Bottle
Plastic Processed: PP,PE Name: Automatic Blowing Machine
Product Name: Automatic Blowing Molding Machine
High Light:

Plastic PET Bottle Blowing Molding Machine

,

750ml Bottle Blowing Moulding Machine

,

Automatic Jar Bottle Blowing Moulding Machine

Product Description

DAWSON MACHINERY & MOULD GROUP

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

Fully Automatic PET Bottle Blow Moulding Machine

Q series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 9 cavity with a speed of 1200 bottles per hour (750 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

adopt servo control system,and structure are stable and reliable ,high -speed and smooth,easy maintenance.the mold is very flexible which can meet the needs of non-stop inline produce. The touchable screen control and temperature adjustment simplified the temperature adjustment for different bottle blowing.

In addition, crystallization varies with different mold design, as a result, the PET bottle produced can stand temperature over 90°C depending on the type of PET material with different crystallization rate. The neck up blowing mode protects the bottle preform from damage during blowing and ensures stable performance. With high strength, good transparency and low production costs, abundant material resource, Q series plays a big role in hot filling package market.

Technical Parameters
Model
GLB-02BCD
GLB-08BC



Blowing part
Number of cavities

2
8
Max. container volume
ltr
5
2.5
Max. bottle diameter
mm
50~180
50~115
Central distance
mm
190
152
Capacity
pcs/h
900~1400
5000~5500

Electrical system
Using power
kw/h
30~40
70~90
Assembling power
kw
90
170



Air system
Low air pressure
Bar
6-8
6-8
Low air consuming
m3/min
1.5-2
4-6
High air pressure
Bar
26`35
26-35
High air consuming
m3/min
4-6
10-12


Chiller
Pressure
Bar
3-4
3-4
Flow
m3/h
3
5
Temperature
15~20
15~20

Machine specification
Machine size
m
5x2.1x3.3
12x4.5x2.5
Machine weight
T
6.5
10
Machine Advantages
PET Bottle Blowing Machine Description

1.Stable performance with Advanced PLC.

2.Conveying performs automatically with conveyor.

3.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and re-volute in the
rails simultaneously in the infrared preheated.

4.High adjust ability to enable the preheated to preheat performs in shapes by adjusting the light tube and the length of the reflecting board in the preheating area,and eternal temperature in the preheated with an automatic thermostatic apparatus.

5.Optimization of the oven,suction and convulsion devices,cool the preform surface.Waterway,air duct directly through the
device,double protect the screw neck.

6.Each mechanical action has safety self-locking device,when a process fails, the program will automatically switch to the security status.

7.Servo device for the material transfer and bottle perform distribution, fast,reliable,and high stability.

8.Using high pressure and hyperbolic arm connecting rod clamping,strong clamping force,speed and distance of clamp open are adjustable.

9.Safe,reliable,and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.

10.Along with remote-maintenance systems,remote inspection maintenance,solve the troubles for you.

11.Low rejection rate: less than 0.2 percent.

Automatic Jar Bottle Blowing Moulding Machine 750ml Plastic PET 0
Servo driving and cam linking blowing section:

The unique cam linking system integrates movement of mold-opening, mold-locking and bottom mold-elevating in one movement,
equipped with high speed servo driving system which greatly shorten the cycle of blowing and increase the capacity.
Small performs distance heating system

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Automatic Jar Bottle Blowing Moulding Machine 750ml Plastic PET 1
Automatic Jar Bottle Blowing Moulding Machine 750ml Plastic PET 2
Efficient and soft perform inlet system


By rotary and soft preform inlet system, the speed of prefom feeding is ensured meanwhile, the preform neck is well
