HDPE Hospital Blowing Shaping Machine Medical Bed Making Extrusion Energy Saving

1 set
MOQ
US $37000-39800/ Set
Price
HDPE Hospital Blowing Shaping Machine Medical Bed Making Extrusion Energy Saving
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: ABLD120
Max. Product Volume: 150 Liters
Mold Platen Size: 380 Mm
Core Components: PLC, Engine, Bearing, Gearbox, Gear
Trademark: DAWSON
Made In: China
High Light:

HDPE Hospital Blowing Shaping Machine

,

Energy Saving HDPE Blowing Molding Machine

,

Making Extrusion Blowing Shaping Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: DAWSON
Certification: CE
Model Number: ABLD120
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 55-65working days
Payment Terms: L/C, T/T
Supply Ability: 5 sets / month
Product Description



HDPE Hospital Medical Bed Making Extrusion Energy Saving Blowing Shaping Machine



DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***


Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....



HDPE Hospital Blowing Shaping Machine Medical Bed Making Extrusion Energy Saving 0



Products Description



DAWSON MACHINERY & MOULD GROUP

Accumulation Type Large Barrel Blow Molding Machine ABLD120
suitable for making 200L 220L Double L Ring Chemical Drums. The output for 9.5KG 200L double L ring drum is 20 Pcs/hour, for 10.5KG 227L double L ring drum is 18 Pcs/hour. This Model ABLD120 is popular in chemical liquid packing field, due to its clear product positioning, strong and reliable product strength, high quality/price rate, stable performance, easy operation and maintenance.



Technical Parameters



Name
Units
ABLD100
ABLD120
Max.product volume
L
120
300
Screw diameter
MM
100
120
Screw drive power
KW
55
132
Screw heating capacity
KW
22
36
Output of HDPE
KG/H
200
350
Oil pump drive power
KW
22
37
Clamping force
KN
600
900
Max.size of mold
MM
1000×1300
1200×1700
Material storage
L
14
24-35
Template size
MM
1150×1150
1200×1600
Mold stroke
MM
500-1350
880-1700
Max.die diameter
MM
450
700
Die heating power
KW
21
36
Size of machine
L×W×H
5.4×2.5×4.5
7.5×3.5×5.5
Weight of machine
TON
15
36





 High Quality Mould

High Quality Blow Molding mould

In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.


We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.

- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat
treatment to HRC62
- Double neck design available to change in future as a spare part necking
- All mould can be made auto-deflashing or manual deflashing as per customer requests
- Perfect mould cooling design to ensure the best moulding preformace
- Available to provide 2D & 3D product drawing for customers
- Available to send samples to customer for approval the product quality
- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...

Company Profile



DAWSON MACHINERY & MOULD GROUP


Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....




DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!


DAWSON will be your reliable friend in China, and we will always do our best to give you max support!

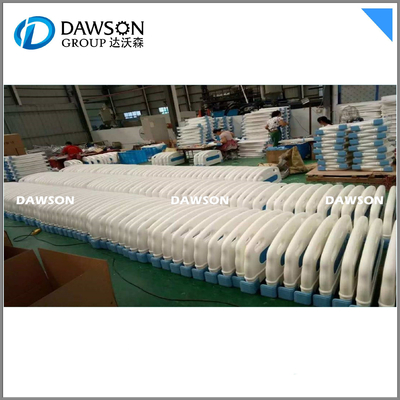

Customer Photos

We committed to providing customers with plastic machinery & equipment production lines beyond expectations.
Customer satisfaction is our eternal pursuit...
HDPE Hospital Blowing Shaping Machine Medical Bed Making Extrusion Energy Saving 1 HDPE Hospital Blowing Shaping Machine Medical Bed Making Extrusion Energy Saving 2 HDPE Hospital Blowing Shaping Machine Medical Bed Making Extrusion Energy Saving 3 HDPE Hospital Blowing Shaping Machine Medical Bed Making Extrusion Energy Saving 4
HDPE Hospital Blowing Shaping Machine Medical Bed Making Extrusion Energy Saving 5 HDPE Hospital Blowing Shaping Machine Medical Bed Making Extrusion Energy Saving 6 HDPE Hospital Blowing Shaping Machine Medical Bed Making Extrusion Energy Saving 7 HDPE Hospital Blowing Shaping Machine Medical Bed Making Extrusion Energy Saving 8





FAQ

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
