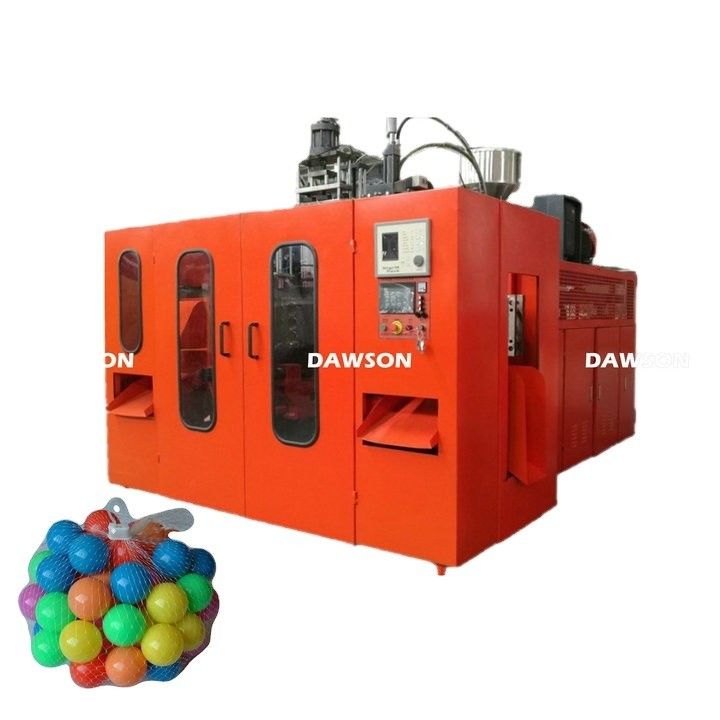

5L PE Extrusion Blow Molding Machine High Speed Plastic Sea Ball

1 set
MOQ
USD 28000 per set
Price
5L PE Extrusion Blow Molding Machine High Speed Plastic Sea Ball
Features Gallery Product Description Request A Quote
Features
Specifications
Max Product Volume: 5L 8L
Condition: New
Screw Diameter: 75mm
Guarantee Time: 1 Year
Machine Lifespan: >20 Years
Company Attribute: Manufacturer
Delivery Days: 60 Days
Voltage: Customer Specified
High Light:

5L PE Extrusion Blow Molding Machine

,

Plastic Sea Ball Blow Molding Machine

,

High Speed Extrusion Blow Molding Machine

Basic Infomation
Place of Origin: China
Brand Name: DAWSON
Certification: CE
Model Number: DSB80
Payment & Shipping Terms
Delivery Time: 40-65 work days
Payment Terms: L/C, T/T
Product Description
DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***
Extrusin Blow oMolding Machine DSB80II
Suitable for making 0-5L milk bottles,plastic oil bottles, detergent bottles,shampoo bottles,medical bottles,plastic balls,tube, plastic cans,containers,jars,tools,toys,etc.


the whole blow molding machine is equipped with bilingual operation panel and automatic configuration


from world famous brands to realize the advantages of simple operation and high automation.

                             5L PE Extrusion Blow Molding Machine High Speed Plastic Sea Ball 0

Product Description

5L PE Extrusion Blow Molding Machine High Speed Plastic Sea Ball 1



Machine Model
Max. Bottle size
Production forecast
DSB80II
Single Station Single Head
5L
250-380 BPH

Product: Plastic bottle / ball
Power supply: 380/220v 50/60 Hz Tri-phase
Layer: Single layer
Parison control: MOOG 100 points

Technical Parameters

Blow Molding Machine for making 50mm to 80mm Plastic Ball DSB80II

Basic parameters Suitable material PE.PP,PVC,PS,PETG,so on
Max volume 4 L
Output capacity as per samples
Size 4.4*3.4*3.6(M)
Weight 11.3T
system Specification Parameters Note
Plasticizion system
Summarize High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
Reducer Hard finishing,High intension,Low noise reducer
Screw 1 ∮80mm,L/D ratio 25,130kg/h 38CrMoALA Cooling system available
  Heating Zone 4 Aluminum Heater Automatic heating
  Heating power 10KW/H
Cooling Fan Separate cooling system for heaters Automatic cooling


Electricystem
Summarize PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)


Operate interface Touch screen, automatic self-diagnose alarm system
Parison control MOOG 100 points controller
Temperature control Automatic temperature control module
Movement control TECH-2/Mitsubishi, Chinese/English
Version

Electric protection Ampere overload, electric short circuit self-protection function
TOTAL rated power 67kw
Average power consumption 33 kw
Inverter Delta
Hydraulic system
Summarize Multiple function hydraulic integrated block Proportional control, high efficient
Oil pump motor 11kw motor (380V/220V,50/60HZ)
Oil pump double vane pump
Valves Imported oil pump valves and connections
YUKEN

Oil pipes Double layer overpressure resistant
System pressure LP 100 bar / HP 130 bar
Threads of hydraulic block use of screw joint GE(ISO 1179)

Cooling system Post cooling by cooling air and cooling water with Aluminum Mask
Pneumatic system Summarize Taiwan AIRTAC pneumatic system
Air pressure 0.6~0.8Mpa
Air displacement 2.2 M3/min
Electromagnetic valve Taiwan AIRTAC
Cooling system Summarize Separate cooling system of mould, barrel and oil system
Cooling medium Water
Water flow 100L/min
Water pressure 0.4-0.6MPa


5L PE Extrusion Blow Molding Machine High Speed Plastic Sea Ball 2
#blow molding machine #Extrusion Blow Molding #Injection blow molding machine #PET blow molding machine # injection molding machine # blowing mould # plastic bottle making machine #plastic bottle mould #bottle machine #plastic machinery #blow molding mould #moulding machine # moulding mould #China blow molding machine #blow molding machine made in China

Detailed Photos

5L PE Extrusion Blow Molding Machine High Speed Plastic Sea Ball 35L PE Extrusion Blow Molding Machine High Speed Plastic Sea Ball 45L PE Extrusion Blow Molding Machine High Speed Plastic Sea Ball 55L PE Extrusion Blow Molding Machine High Speed Plastic Sea Ball 65L PE Extrusion Blow Molding Machine High Speed Plastic Sea Ball 7


Configuration

1.Hydraulic system and valves connections from Japanese Yuken industry.



2.Computer control system (PLC) Japanese Mitisubishi PLC

Used to control all electrial components and touch screen


3.Auto-deflashing Unit
Remove extra parts of products automatically
Saving your labor cost



4.Electric Cabinet
All electric components
From famous world brand to ensure the quality and stability

5.
Touch screen
Chinese and English
(or other language)
All movement operated
By touch screen
Make the process full-automatic

High Quality Mould

High Quality Blow Molding mould


In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.


We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.

- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat
treatment to HRC62
- Double neck design available to change in future as a spare part necking
- All mould can be made auto-deflashing or manual deflashing as per customer requests
- Perfect mould cooling design to ensure the best moulding preformace
- Available to provide 2D & 3D product drawing for customers
- Available to send samples to customer for approval the product quality
- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...
5L PE Extrusion Blow Molding Machine High Speed Plastic Sea Ball 8 5L PE Extrusion Blow Molding Machine High Speed Plastic Sea Ball 9


5L PE Extrusion Blow Molding Machine High Speed Plastic Sea Ball 10



Company Profile

DAWSON MACHINERY & MOULD GROUP


Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

We have our own service team in

Saudi Arabia, Colombia, Panama, South Africa ...

5L PE Extrusion Blow Molding Machine High Speed Plastic Sea Ball 11

DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!



DAWSON will be your reliable friend in China, and we will always do our best to give you max support!


Customer Photos

5L PE Extrusion Blow Molding Machine High Speed Plastic Sea Ball 125L PE Extrusion Blow Molding Machine High Speed Plastic Sea Ball 13

FAQ

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
