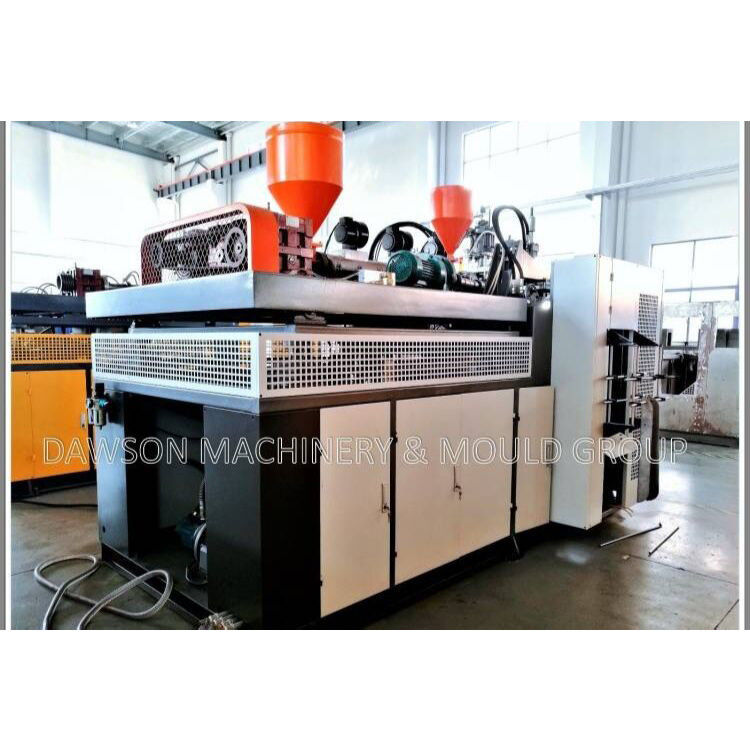

3L HDPE PP Bottle Extrusion Blow Molding Machines Juice Water Plastic

Minimum Order Quantity : 1 set Price : US $37000-39800/ Set
Packaging Details : Standard Export Packing Delivery Time : 55-65working days
Payment Terms : L/C, T/T Supply Ability : 5 sets / month
Place of Origin: CHINA Brand Name: DAWSON
Certification: CE Model Number: ABLB90

Detail Information

Model NO.: ABLB90 Station: Single Station Or Double Station
Oil Pump Motor Power: 5.5kw Head Heating Power: 5.7kw
Trademark: DAWSON Made In: China
High Light:

PP Bottle Extrusion Blow Molding Machines

,

Extrusion 3L Blow Molding Machines

,

Juice Plastic Extrusion Blow Molding Machines

Product Description

3L 5L HDPE PP Bottle Extrusion Blow Molding Machines Juice Water High Quality Plastic Blow Molding Machine



DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***


Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....



DAWSON MACHINERY & MOULD GROUP



Extrusion Blow Molding Machine DSB70II

​​

Machine Model
Max. Bottle size
Production forecast
DSB70II
Single Station Single Head
5L

180~200 pcs/h (5L) / with single head

400~450 pcs/h (1L) / with double head



Products Description



DAWSON MACHINERY & MOULD GROUP
Name Units ABLB90-30L
Max.product volume L 30L
Screw diameter MM 90
Screw drive power KW 10
Output of HDPE KG/H 130
Oil pump drive power KW 11
Clamping force KN 270
Max.size of mold MM 680× 660
Template size MM 290×320
Mold stroke MM 450-950
Size of machine L×W×H 4.4×3.4×3.6
Weight of machine TON 11.3




Automatic Extrusion Blow Molding Machine DSB70II

u Product: 0~5 L Bottles

u Power supply: 380/220v 50/60 Hz Tri-phase

u Die head number: Single / Double

u Suitable raw material: PE, PP, PVC, PS, PETG

u Output capacity: 180~200 pcs/h (5L) / with single head

400~450 pcs/h (1L) / with double head

SPECIFICATIONS UNITS DSB70II SERIERS
Max container capacity L 5
Number of die heads Set 1
Dry cycle time Second 5
Machine dimension (L*W*H) M 3.3*2.3*2.6
Total weight Ton 5.5
CLAMPING UNIT
Clamping force KN 68
Platen opening stroke mm 200-500
Platen size mm 360*470
Max mould size (W*H) mm 390*470
Mould thickness mm 210-300
Platen moving distance Mm 440
POWER
Extrusion motor power KW 22
Oil pump motor power KW 5.5
Extrusion heating power KW 12
Head heating power KW 5.7
Cooling Fan power KW 0.26
Total power KW 45.46
Average power consumption KW 23.5
EXTRDER UNIT
Screw diameter mm 70
Screw L/D ratio L/D 24
Plasticizing capacity Kg/hour 90
Number of heating zone Zone 3
Extruder heating power KW 14.2
Extruder driving power KW 22
Cooling Fan No   2
Fan power KW 0.26
DIE HEAD
Head type Continuous extrusion head
Head No 1 2 3 4
Central distance / mm - 160 110 85
Max die diameter / mm 135 80 50 30

#blow molding machine #Extrusion Blow Molding #Injection blow molding machine #PET blow molding machine # injection molding machine # blowing mould # plastic bottle making machine #plastic bottle mould #bottle machine #plastic machinery #blow molding mould #moulding machine # moulding mould #China blow molding machine #blow molding machine made in China



 High Quality Mould

High Quality Blow Molding mould

In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.


We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.

- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat
treatment to HRC62
- Double neck design available to change in future as a spare part necking
- All mould can be made auto-deflashing or manual deflashing as per customer requests
- Perfect mould cooling design to ensure the best moulding preformace
- Available to provide 2D & 3D product drawing for customers
- Available to send samples to customer for approval the product quality
- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...

Company Profile



DAWSON MACHINERY & MOULD GROUP


Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....




DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!


DAWSON will be your reliable friend in China, and we will always do our best to give you max support!



Customer Photos

We committed to providing customers with plastic machinery & equipment production lines beyond expectations.
Customer satisfaction is our eternal pursuit...
3L HDPE PP Bottle Extrusion Blow Molding Machines Juice Water Plastic 0 3L HDPE PP Bottle Extrusion Blow Molding Machines Juice Water Plastic 1 3L HDPE PP Bottle Extrusion Blow Molding Machines Juice Water Plastic 2 3L HDPE PP Bottle Extrusion Blow Molding Machines Juice Water Plastic 3
3L HDPE PP Bottle Extrusion Blow Molding Machines Juice Water Plastic 4 3L HDPE PP Bottle Extrusion Blow Molding Machines Juice Water Plastic 5 3L HDPE PP Bottle Extrusion Blow Molding Machines Juice Water Plastic 6 3L HDPE PP Bottle Extrusion Blow Molding Machines Juice Water Plastic 7





FAQ

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
