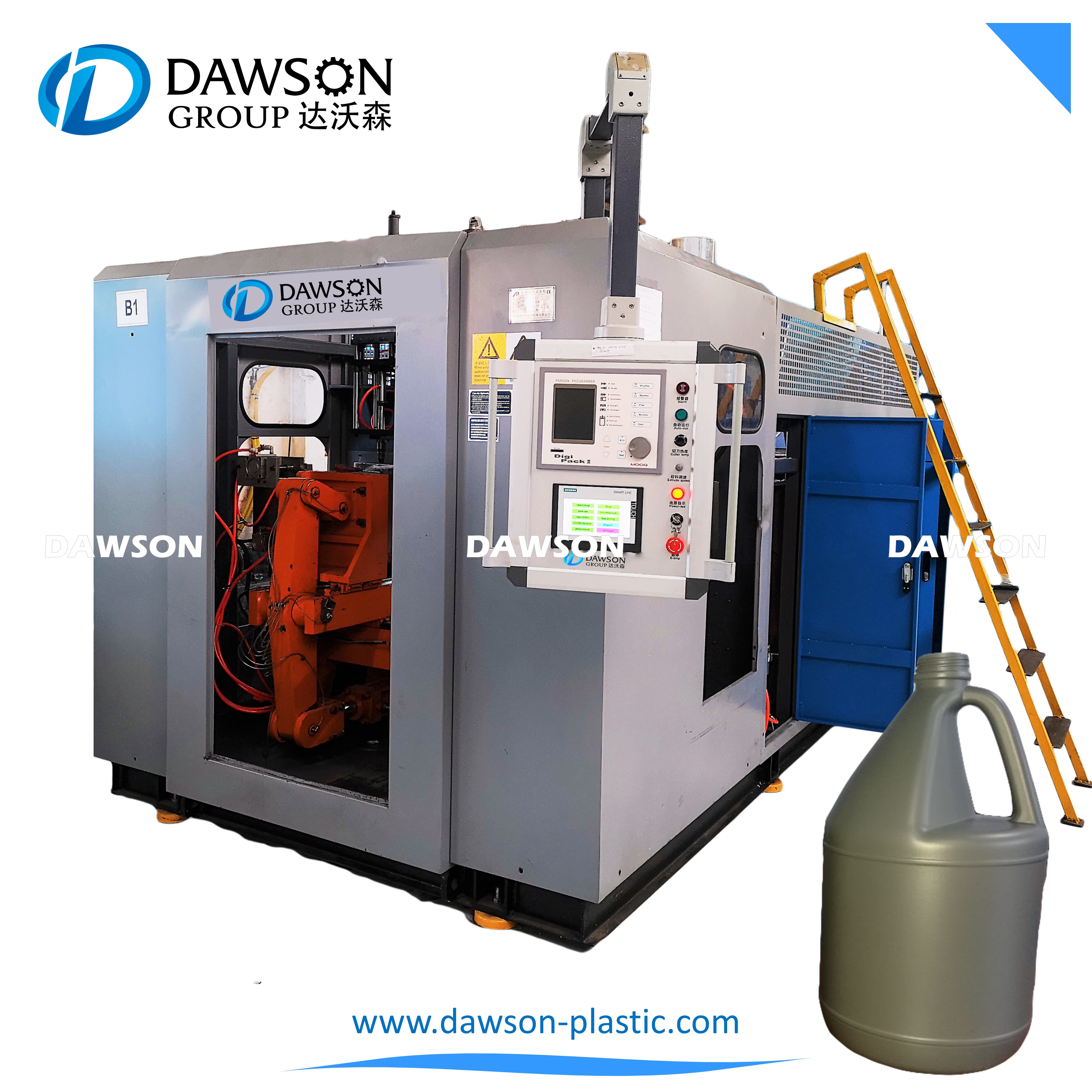

High Quality Plastic Blow Molding Machine Various 4 Liter Automatic

1
MOQ
USD 15,700 ~ 95,000 / set
Price
High Quality Plastic Blow Molding Machine Various 4 Liter Automatic
Features Gallery Product Description Request A Quote
Features
Specifications
Max. Product Volume: 5 L
Clamping Force: 70 Kn
Suitable Material: HDPE, PP, PVC, PS, PETG, LDPE
Pneumatic: Festo From Germany Or SMC From Japan
Contactor: Schneider From Franch
Control System: B&R From Austria
High Light:

Automatic Plastic Blow Molding Machine

,

4L Blow Molding Machine

,

PETG Blow Molding Machine
Basic Infomation
Place of Origin: China
Brand Name: DAWSON
Certification: CE
Model Number: TP5D-75
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 20 set/month
Product Description

High Quality Various 4 Liter Automatic Plastic Blow Molding Machine



Products Description
High Quality Plastic Blow Molding Machine Various 4 Liter Automatic 0
5L HDPE oil bottles full automatic blow molding machine ABLB75 extrusion blow molding machine was specially designed for making plastic water bottles, lubricant oil bottles, detergent bottles, plastic toys and other plastic containers not over 8L. China 1L 2L 5L HDPE oil bottles full automatic blow molding machine manufacturers Suitable material: PE. PP, PVC, PS, PETG, so on Max volume: 5L system Specification Parameters Note Plasticizing system Summarize High efficient low power consumption plasticizing system, transducer control, self-protect function when started at low temperature Reducer Hard finishing, High intension, Low noise reducer Screw75mm, L/D ratio 24, 38CrMoALA Cooling system available Plasticization100Kg/HHDPE Heating Zone3-4 Aluminum Heater Automatic heating Heating power8KW/H Extrusion Motor Three phase asynchronous motor (380V,50HZ) 22kw Cooling Fan3-4zone Automatic cooling Extrusion system Summarize High-grade alloy steel, center feeding Die head number1 Center distance of die heads/ Max die mouth/ Heating zone3-4 Stainless steel heating cycle Heating power3~5KW Clamping system Summarize High intension, rigidity, center mold locking, stable mould opening and clamping system Clamping force 80KN Template distance148~568mm Max mould size 400X450mm Mould material High grade 50# steel Electric system Summarize PLC+ touch screen (man-machine interface) standard extrusion blow molding machine controlling system (AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)Japanese Mitsubishi PLC system Operate interfaceTouch screen, automatic self-diagnose alarm system Temperature control Automatic temperature control module Movement control Japanese Mitsubishi, Chinese/English Version Electric protectionAmpere overload, electric short circuit self-protection function Hydraulic system SummarizeMultiple function hydraulic integrated block Proportional control, high efficient Oil pump motor Three phase asynchronous motor (380V,50HZ) 7.5kw Oil pump Imported double pump Valves Imported oil pump valves and connections Oil pipes Double layer overpressure resistant System pressure60Kg/cm² Cooling systemSeparate water cooling cycle, oil cooler cooling system Pneumatic system Summarize Taiwan AIRTAC pneumatic system Air pressure0.8Mpa Air displacement0.8M3/min Electromagnetic valve AIRTAC Cooling system SummarizeSeparate cooling system of mould, barrel and oil system Cooling medium Water Water flow80L/min Water pressure0.3-0.6MPa Blow molding is a manufacturing process by which hollow plastic parts are formed: In general, there are three main types of blow molding: extrusion blow molding, injection blow molding, and injection stretch blow molding. The blow molding process begins with melting down the plastic and forming it into a parison or in the case of injection and injection stretch blow moulding (ISB) a preform. The parison is a tube-like piece of plastic with a hole in one end through which compressed air can pass. The parison is then clamped into a mold and air is blown into it. The air pressure then pushes the plastic out to match the mold. Once the plastic has cooled and hardened the mold opens up and the part is ejected.
Name
Units
ABLB75II
Max.product volume
L
8
Dry cycle
PC/H
750×2
Screw diameter
MM
75
Screw L/D ratio
L/D
24
Screw drive power
KW
22
Screw heating capacity
KW
7-8
No.of heating zone
ZONE
4
Output of HDPE
KG/H
100
Oil pump drive power
KW
7.5
Clamping force
KN
80
Max.size of mold
MM
400×430
Template size
MM
380×420
Mold stroke
MM
170-520
Max.die diameter
MM
170
Blowing pressure
MPA
0.6
Air volume
m³/MIN
0.8
Cooling water pressure
MPA
0.3
Water consumption
L/MIN
80
Size of machine
L×W×H
4.2×2.2×2.7
Weight of machine
TON
7.5
High Quality Plastic Blow Molding Machine Various 4 Liter Automatic 1
High Quality Plastic Blow Molding Machine Various 4 Liter Automatic 2
High Quality Plastic Blow Molding Machine Various 4 Liter Automatic 3
High Quality Plastic Blow Molding Machine Various 4 Liter Automatic 4
High Quality Plastic Blow Molding Machine Various 4 Liter Automatic 5
High Quality Plastic Blow Molding Machine Various 4 Liter Automatic 6
High Quality Plastic Blow Molding Machine Various 4 Liter Automatic 7
High Quality Plastic Blow Molding Machine Various 4 Liter Automatic 8
Recommended by seller


PET bottle making machinery Plastic Cans PET Jar Ttritan Bottles Injection Stretch Blow Molding Machine

$10,000.00 - $80,000.00 / Set

1.0 Sets



500ml 1L round plastic machine for bottle making blowing moulding cleaning bottle injection blow molding machine

$28,900.00 - $65,800.00 / Set

1.0 Sets



20L Custom Designed Diagonal Barrel Stacking Bucket Water Oil Pesticide Bottles Extrusion Blowing Molding Machine

$58,800.00 - $61,800.00 / Set

1 Set



4L Chemical Bottle Making Machine Gallon Fully Automatic Extrusion Blow Molding Machine

$35,200.00 - $40,800.00 / Set

1.0 Sets



PE PP PC Plastic Wall Street Round Globe Art Designed Lampshade Production Machine Extrusion Blowing Machine

$34,800.00 - $38,600.00 / Set

1 Set



Extrusion Blow Molding Machine for HDPE Cooler Boxes Drums

$45,000.00 - $60,000.00 / Set

1.0 Sets



Automatic blowing machine 2 cavity drinking water bottles for liquid packing blow molding machine

$22,000.00 - $26,000.00 / Set

1.0 Sets



Candy Food Snack Packing Container Jar Wide Neck Preform Making Injection Molding Machine

$38,600.00 - $41,600.00 / Set

1 Set



Pet Bottle Plastic Making Preform Injection Molding Moulding Machine for Pet Bottles

$47,500.00 - $48,600.00 / Set

1 Set



Pet PP PE Plastic Jar/Barrel/Bottle/Can/Cap/Preform Containers Injection Molding Machine

$23,800.00 - $24,800.00 / Set

1 Set



Plastic cap wadding machine with gasket foam liner inserting machine

$12,000.00 - $15,000.00 / Set

1.0 Sets

Click Here To Get A Free Quote
More Products
High Quality Plastic Blow Molding Machine Various 4 Liter Automatic 9
Company View
High Quality Plastic Blow Molding Machine Various 4 Liter Automatic 10
Production Line
High Quality Plastic Blow Molding Machine Various 4 Liter Automatic 11
Packaging & Shipping
High Quality Plastic Blow Molding Machine Various 4 Liter Automatic 12
High Quality Plastic Blow Molding Machine Various 4 Liter Automatic 13
FAQ
High Quality Plastic Blow Molding Machine Various 4 Liter Automatic 14
Q: Can we visit your factory? Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video. Q: How can we get the exact price of plastic machine? Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation. Q: Do you provide any spare parts with machine? Yes, we offer all necessary spare parts before shipment.(contact us for packing list ) Q: How about your after-sale service ? We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist. Q: What is the lead time? For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.) Q: What is the warranty period for your machine ? 12 months warranty for components and technical support .
Q: Do you provide custom machines? Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs. Q: How can we install the machine when it arrives? We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees. Q: What's DAWSON's advantage? DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time. DAWSON will be your reliable friend in China, and we will always do our best to give you max support!and bottles in all shapes.
