Automatic 5 gallon PET Water Bottle making machine Factory supply Plastic Blow Molding Machine

Minimum Order Quantity : 1 Price : USD 15,700 ~ 95,000 / set
Packaging Details : Standard Export Packing Delivery Time : 5-8 work days
Payment Terms : L/C, T/T Supply Ability : 20 set/month
Place of Origin: China Brand Name: DAWSON
Certification: CE Model Number: Q9000

Detail Information

Plastic Processed: PET Neck Diameter: 38 Mm
Bottle Volume(ml): 2000 Ml Max.Bottle Height(mm): 330 Mm
Max.Bottle Diameter(mm): 100 Mm Dimension(L*W*H): 5.4*1.6*1.7m
High Light:

Automatit PET Blow Molding Machine

,

5 gallon PET Blow Molding Machine

,

PET Water Bottle Blow Molding Machine

Product Description

Automatic 5 gallon PET Water Bottle making machine Factory supply Plastic Blow Molding

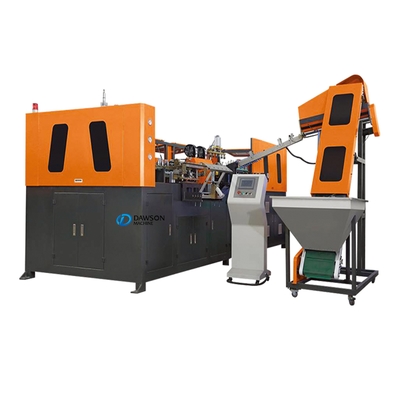

Automatic 5 gallon PET Water Bottle making machine Factory supply Plastic Blow Molding Machine 0
Products Description




DAWSON MACHINERY & MOULD GROUP

Automatic PET Bottle Blow Molding Machine Q9000

This PET water bottle blow molding machine is specially designed to produce water bottle,
PET bottle with high heat resistance for hot filling package such as juice and tea. It adopts multiple blowing to reduce the residual stress, as result shaped bottle has slight shrinkage during hot filling.

In addition, crystallization varies with different mold design, as a result, the PET bottle produced can stand temperature over 90°C depending on the type of PET material with different crystallization rate. The neck up blowing mode protects the bottle preform from damage during blowing and ensures stable
performance. With high strength, good transparency and low production costs, abundant material resource, PET Blow Moulding Machine plays a big role in hot filling package market.

Technical Parameters
Item
Q9000
Bottle type specification
Cavity
6
Theory output
8000~9000
Max.volume
2L
Bottle mouth maximum overall diameter
28-38mm
Bottle biggest diameter
105mm
Bottle maximum height
330mm
Power specification
Light tube quantity
48pcs
Light tube power
1.5KW
Maximum heating power
72KW
All electric machine installation
75KW
Actual consumption
40%--70%
Air pressure specification
Work pressure
7-9kg/cm2
Low-pressure gas consumption
1000L/min
Blow bottle pressure
25-35kg/cm2
Higher -pressure gas consumption
3000Ltr/min
Air pressure specification
Work pressure
5-6 kg/cm2
Temperature range
10℃
Consumption
8000kcal/hr
Frozen water flow
138L/min
Machine specification
Machine size
5.5x1.6x1.9
Machine weight
4.5ton

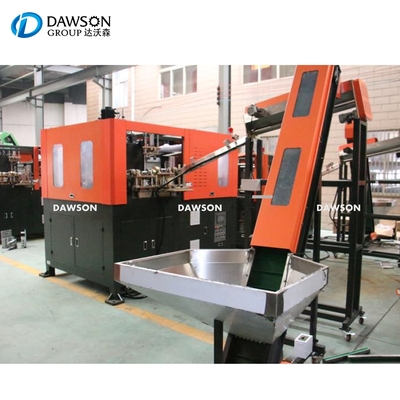

Automatic 5 gallon PET Water Bottle making machine Factory supply Plastic Blow Molding Machine 2
Automatic 5 gallon PET Water Bottle making machine Factory supply Plastic Blow Molding Machine 3
Automatic 5 gallon PET Water Bottle making machine Factory supply Plastic Blow Molding Machine 4
Automatic 5 gallon PET Water Bottle making machine Factory supply Plastic Blow Molding Machine 5
Machine Advantages
Q Series PET Bottle Blowing Machine Description

1.Stable performance with Advanced PLC.

2.Conveying performs automatically with conveyor.

3.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and re-volute in the
rails simultaneously in the infrared preheated.

4.High adjust ability to enable the preheated to preheat performs in shapes by adjusting the light tube and the length of the reflecting board in the preheating area,and eternal temperature in the preheated with an automatic thermostatic apparatus.

5.Optimization of the oven,suction and convulsion devices,cool the preform surface.Waterway,air duct directly through the
device,double protect the screw neck.

6.Each mechanical action has safety self-locking device,when a process fails, the program will automatically switch to the security status.

7.Servo device for the material transfer and bottle perform distribution, fast,reliable,and high stability.

8.Using high pressure and hyperbolic arm connecting rod clamping,strong clamping force,speed and distance of clamp open are adjustable.

9.Safe,reliable,and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.

10.Along with remote-maintenance systems,remote inspection maintenance,solve the troubles for you.

11.Low rejection rate: less than 0.2 percent.

Automatic 5 gallon PET Water Bottle making machine Factory supply Plastic Blow Molding Machine 6
Servo driving and cam linking blowing section:

The unique cam linking system integrates movement of mold-opening, mold-locking and bottom mold-elevating in one movement,
equipped with high speed servo driving system which greatly shorten the cycle of blowing and increase the capacity.
Small performs distance heating system

Heater distance in the heating oven is reduced to 38mm, compared with the conventional heating oven it saves more than 30%
electricity consumption.
Equipped with the air cycling system and redundant heat discharge system, it ensures the constant temperature of the heating zone.
Automatic 5 gallon PET Water Bottle making machine Factory supply Plastic Blow Molding Machine 7
Automatic 5 gallon PET Water Bottle making machine Factory supply Plastic Blow Molding Machine 8
Efficient and soft perform inlet system

By rotary and soft preform inlet system, the speed of preform feeding is ensured meanwhile, the preform neck is well protected.
Automatic 5 gallon PET Water Bottle making machine Factory supply Plastic Blow Molding Machine 9
Professional Workshop

Our Professional Injection Stretch Blow Molding Machine Workshop...

Automatic 5 gallon PET Water Bottle making machine Factory supply Plastic Blow Molding Machine 11
Automatic 5 gallon PET Water Bottle making machine Factory supply Plastic Blow Molding Machine 12
Automatic 5 gallon PET Water Bottle making machine Factory supply Plastic Blow Molding Machine 13
Automatic 5 gallon PET Water Bottle making machine Factory supply Plastic Blow Molding Machine 14
Applications
Company Profile




DAWSON MACHINERY & MOULD GROUP


Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

We have our own service team in

Saudi Arabia, Colombia, Panama, South Africa ...


DAWSON MACHINE & MOULD GROUP

located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery, PET blow molding machine, blow molding machine, injection molding machine, injection blow molding machine, injection stretch blow molding machine during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.

The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!


Customer Photos

We committed to providing customers with plastic machinery & equipment production lines beyond expectations.

Customer satisfaction is our eternal pursuit...

Automatic 5 gallon PET Water Bottle making machine Factory supply Plastic Blow Molding Machine 18
Automatic 5 gallon PET Water Bottle making machine Factory supply Plastic Blow Molding Machine 19
Automatic 5 gallon PET Water Bottle making machine Factory supply Plastic Blow Molding Machine 20
Automatic 5 gallon PET Water Bottle making machine Factory supply Plastic Blow Molding Machine 21
Automatic 5 gallon PET Water Bottle making machine Factory supply Plastic Blow Molding Machine 22
Automatic 5 gallon PET Water Bottle making machine Factory supply Plastic Blow Molding Machine 23
Automatic 5 gallon PET Water Bottle making machine Factory supply Plastic Blow Molding Machine 24
Automatic 5 gallon PET Water Bottle making machine Factory supply Plastic Blow Molding Machine 25
Automatic 5 gallon PET Water Bottle making machine Factory supply Plastic Blow Molding Machine 26
Automatic 5 gallon PET Water Bottle making machine Factory supply Plastic Blow Molding Machine 27
Automatic 5 gallon PET Water Bottle making machine Factory supply Plastic Blow Molding Machine 28
Automatic 5 gallon PET Water Bottle making machine Factory supply Plastic Blow Molding Machine 29
Automatic 5 gallon PET Water Bottle making machine Factory supply Plastic Blow Molding Machine 30
Automatic 5 gallon PET Water Bottle making machine Factory supply Plastic Blow Molding Machine 31
Our Service
FAQ

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
