pet mineral water bottle making machine full automatic

1 piece
USD 23800-56200 piece
pet mineral water bottle making machine full automatic
Features Gallery Product Description Request A Quote
Theoretical Output: 500~1800
Volume: 5.0~20
Max. Height: 360~550
Max. Diameter: 105~300
Number Of Cavities: 1~4
Mould Thickness: 220~380
Main Body Weight: 550~900
High Light:

high strength PET Blow Molding Machine


high heat resistance PET Blow Molding Machine


Full Automatic PET Blow Molding Machine

Basic Infomation
Place of Origin: CHINE
Brand Name: DAWSON
Certification: CE
Model Number: semi - machine
Payment & Shipping Terms
Packaging Details: wooden
Delivery Time: 45-65 days
Payment Terms: L/C, T/T
Supply Ability: 25 pieces per month
Product Description

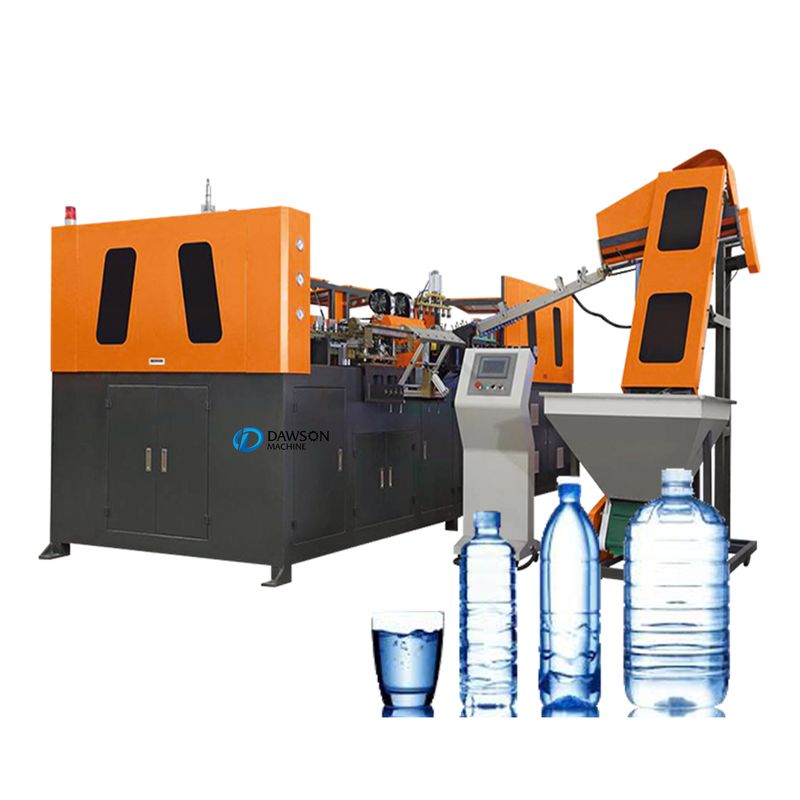

Water bottle PET blow molding machine
YCQ Water bottle blow molding machine with 2~8 cavities is specially designed to produce water bottole, PET bottle with high heat resistance for hot filling package such as juice and tea. It adopts multiple blowing to reduce the residual stress, as result shaped bottle has slight shrinkage during hot filling.

In addition, crystallization varies with different mold design, as a result, the PET bottle produced can stand temperature over 90°C depending on the type of PET material with different crystallization rate. The neck up blowing mode protects the bottle preform from damage during blowing and ensures stable performance. With high strength, good transparency and low production costs, abundant material resource, YCQ plays a big role in hot filling package market.

Technical Parameter
Automatic Type Machine

Model Item YCQ-2 YCQ-4 YCQ-6 YCQ-8
Productivity Depend on bottle design 2400-3000PCS/H 3500-4500PCS/H 5500-6500PCS/H 8000-9000PCS/H
Product type Volume 0.1-2.0L 0.1-2.0L 0.1-2.0L 0.1-2.0L
Body diameter ≤100mm ≤100mm ≤100mm ≤100mm
Height ≤310mm ≤310mm ≤330mm ≤330mm
Neck diameter ≤38mm ≤38mm ≤38mm ≤38mm
Mold Cavity 2 4 6
Mold thickness 240mm 240mm 240mm 240mm
Mold volume 260*240*370mm 510*240*360mm 640*240*360mm 640*240*360mm
Main machine power Electrical source power 380V/220V 50/60HZ 380V/220V 50/60HZ 380V/220V 50/60HZ 380V/220V 560/60HZ
  3Phase 3Phase 3Phase 3Phase
Rated power 25kw 49kw 73kw 97kw
Really use power 6.5kw 13kw 25kw
Air system HP air compressor 1.6m³/min3.0Mpa 3.0m³/min3.0Mpa 6.0m³/min3.0Mpa 6.0m³/min3.0Mpa
LP air compressor 1.0m³/min1.0Mpa 1.6m³/min1.0Mpa 2.0m³/min1.0Mpa 23.0m³/min1.0Mpa
Air tank 0.6m³3.0Mpa 0.6m³3.0Mpa 1.0m³3.0Mpa 1.0m³3.0Mpa
Air dryer 1.0m³/min3.0Mpa 2.0m³/min3.0Mpa 6.0m³/min3.0Mpa 6.0m³/min3.0Mpa
Cooling water Water Chiller 3HP 3HP 5HP 8HP
Machine Size(L*W*H) 1900*1280*1930mm 1900*1860*1930mm 4100*1400*1800mm 4100*2200*1800mm
Weight 2000kg 3600kg 4200kg 5800kg
Preform unscrambler Size(L*W*H) 2000*950*2480mm 2000*950*2480mm 2000*950*2480mm 2000*950*2480mm
Weight 500kg 500kg 500kg 500kg
Semi type machine:
  UNIT YCQ-12 YCQ-8 YCQ-1500 YCQ-1-20
  Theoretical output Pcs/h 500 900 1800 90
Product Volume L 5.0 2.0 2.0 20
Max. height mm 360 360 360 550
Max. diameter mm 120 105 105 300
Mould Number of cavities / 1 2 4 1
Mould piate dimension(L*H) mm 490*470 490*405 490*405 620*620
Mould thickness mm 250 220 220 380
Mould opening stroke mm 220 180 180 380
Electrical Power / 220_380V/50_60HZ 220_380V/50_60HZ 220_380V/50_60HZ 220_380V/50_60HZ
Total power KW 11 11 21 36
Heating power KW 10 10 20 37
Machine Main body dimension(L*W*H) m 1.5*0.65*2.0 1.5*0.65*2.0 1.5*0.65*2.0 2.1*0.75*1.6
Main body weight kg 600 550 550 900
Pre-heater(L*W*H) m 1.5*0.65*1.5 1.4*0.65*1.5 1.8*0.65*1.5 2.7*0.7*1.6

Machine Features

A. Stable performance with advanced PLC.
B. Conveying preforms automatically with conveyor.
C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
F. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
H. Strong clamping force with high pressure and double crank links to lock the mold.
I. Two ways of operating: Automatic and manual.
J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
L. Contamination is avoided for the bottle body.
M. Ideal effect of the chilling with the chilling system.
N. Easy installation and starting.
O. Low rejection rate: Less than 0.3percent.

Machine Parts

Blowing Cylinder Festo Germany
Moulding Closing and Opening Cylinder Festo Germany
Value Festo Germany
Revolve Cylinder SMC Japan
PLC Mitsubishi Japan
Touch Screen Hitech Taiwan
Switch Omron Japan

Our service

Installation service

When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.

The sample service

1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.

Customized service

1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

After-sales service

1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4.We provide one year warranty
5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
7 .12 Months guarantee and life-long technical support.
8.Your business relationship with us will be confidential to any third party.
9. Good after-sale service offered, please get back to us if you got any questions.

Quality Control

We have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.

If you want to know more information about the product,You can send an inquiry, we will solve any of your problems and send you running vedio.
